Quick Details
-
Place of Origin:
-
Guangdong, China
-
Name:
-

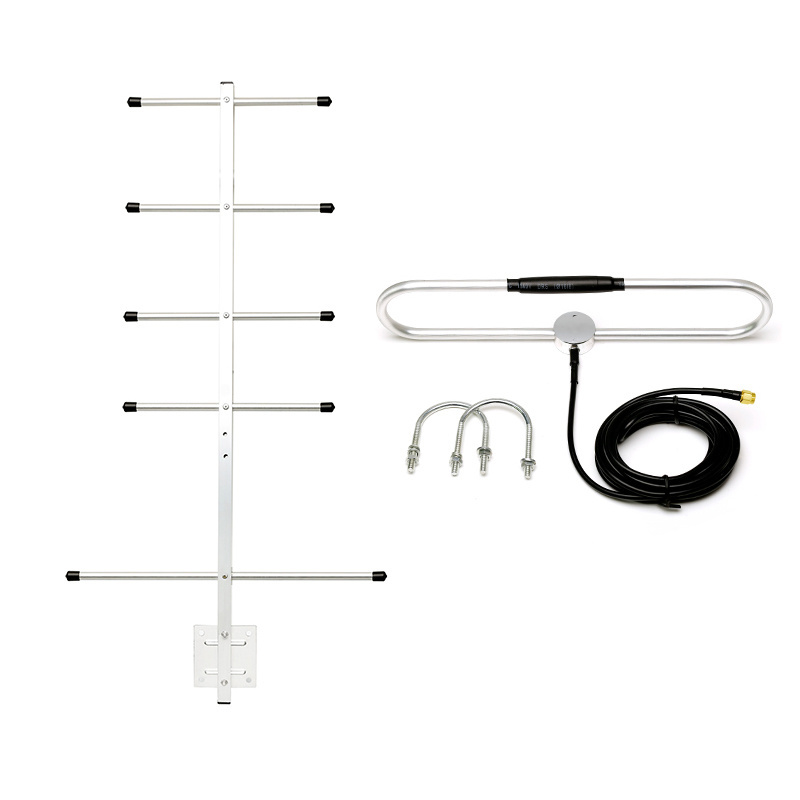

Yagi Antenna
-
Gain:
-
6Dbi; 11Dbi; 13Dbi
-
Frequency Range:
-
433Mhz
-
Connector:
-
SMA Inner Needle or Customed
-
Polarization:
-
Vertical
-
Bandwidth:
-
50MHz
-
Color:
-
Silver
-
V.S.W.R:
-
≤1.5
-
Input Impendence (Ω):
-
50
-
Cable type:
-
RG58
Quick Details
-
Type:
-
Yagi Antenna
-
Brand Name:
-
KXANT
-
Model Number:
-
KX-1000
-
Place of Origin:
-
Guangdong, China
-
Name:
-
Yagi Antenna
-
Gain:
-
6Dbi; 11Dbi; 13Dbi
-
Frequency Range:
-
433Mhz
-
Connector:
-
SMA Inner Needle or Customed
-
Polarization:
-
Vertical
-
Bandwidth:
-
50MHz
-
Color:
-
Silver
-
V.S.W.R:
-
≤1.5
-
Input Impendence (Ω):
-
50
-
Cable type:
-
RG58
|
Type of Antenna
|
3 Units; 6 Units; 8 Units
|
|
|
|
|
|
||
|
dbi
|
6dbi/11dbi/13dbi
|
|
|
|
|
|
||
|
Waterproof
|
✓
|
|
|
|
|
|
||
|
Ideal for Outdoor
|
✓
|
|
|
|
|
|
||
|
Ideal for Indoor
|
|
|
|
|
|
|
||
|
Use Case
|
The Yagi has become particularly popular for television reception,but it is also used in very many other domestic and commercial
applications where an RF antenna is needed that has gain and directivity |
|
Indoor or outdoor, attic or roof-top, with moderate surrounding structure obstruction.
|
|
|
Outdoor, highest point or mountain top, no obstructions visible in all directions. Highest dbi signal for use with longer cable
attenuation. |
||
|
Frequency Range (MHZ)
|
433mhz
|
Rubber Duck Antenna SMA male
|
Admitted Power
|
10W
|
|
Impedance(Ω)
|
50
|
|
Cable Length
|
3m
|
|
VSWR
|
≤1.5+0.02f
|
|
Polarization
|
orientation
|
|
Environmental requirements:
|
installation in the open space or high (no obstructions pointing in the direction), such as windows, balcony liver protection,
roof! |
|
Cable type:
|
RG58 or Optional
|
|
Color
|
Silver
|
|
|
|
