Quick Details
-
Model Number:
-
Switch Panel Controller
-
Max. Current:
-
60A
-
Products name:
-
Switch Panel Controller
-
Function:
-
Bluetooth
-
Input Voltage:
-
12-24V
-
DC Voltage:
-
30A
-
Rated Voltage:
-
12V 20A / 24V 10A
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Winston
-
Model Number:
-
Switch Panel Controller
-
Max. Current:
-
60A
-
Products name:
-
Switch Panel Controller
-
Function:
-
Bluetooth
-
Input Voltage:
-
12-24V
-
DC Voltage:
-
30A
-
Rated Voltage:
-
12V 20A / 24V 10A
-
Certification:
-
CE
Products Description

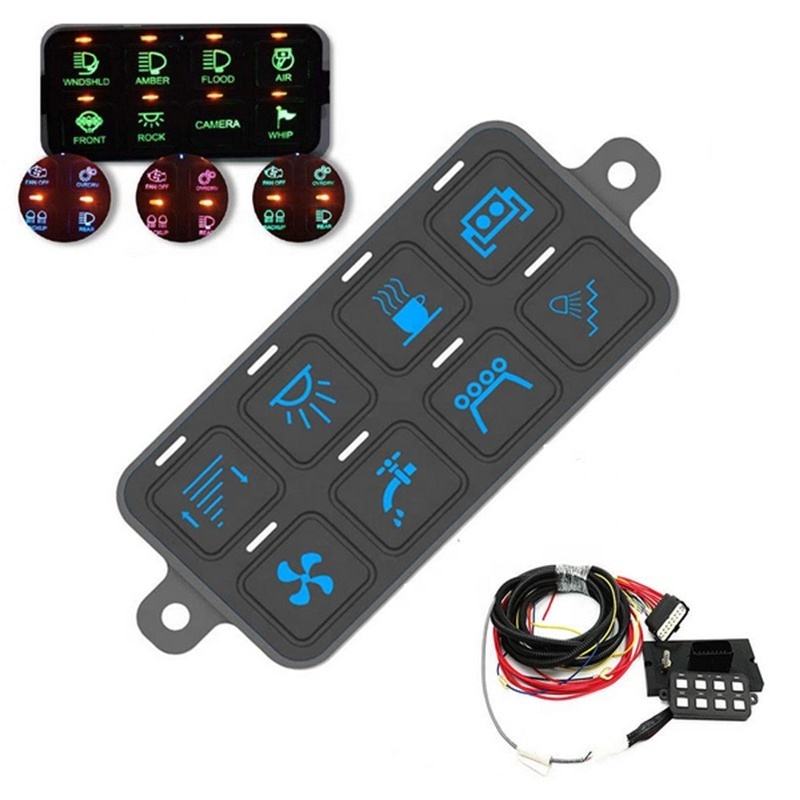

● All in one design, no need to buy extra parts. Switch Control Box + 8 Gang Switch Panel + Mounting
Brackets +
Wiring Harness +Voltage Protection Breaker + Self-Adhesive Label + Screw Sets.
●
The switch panel can control 8 kinds of led light bar at the same time under 12-24 Volts and a max
power rating
of 1201Watts.Adopting Capacitive sensing technology with blue indicator light display,
the switch panel has the
features of highsensitivity, stability and strong anti-interference ability.
●
Easy installation: Plug & play wiring harness with plenty of length. Panel installed by bracket, no
need to cut a big
hole.Labels attach easily, space saving and time saving. Application: Perfectly
suitable for off road, powersports,
marine,boat,yacht, trailers, bus, heavy duty etc.
●
Installation Guide: Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.
The maximum
output current of ground 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A.
The recommended connection method is to decrease the current gradually from ground 1 to ground 8.
●
Bluetooth Function:Download the Switch-Pro SP8100 App from the Apple App or Google Play Store.
Product Paramenters
|
Input Voltage
|
12-24V
|
|
|
DC Voltage
|
30A
|
|
|
Rated voltage
|
12V 20A / 24V 10A
|
|
|
Operating temperature
|
-25°-80°
|
|
|
Waterproof rating
|
IP65
|
|
|
Item
|
8 Gang Switch Panel Controller with Bluetooth and Circuit Control Box Waterproof Fuse Relay Box Wiring Harness Label Stickers
|
|
|
LED Display
|
RGB
|
|
|
Note:Contact us to get the exact Instructions!
|
|
|
Dimensions(mm)
Applications
