Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1660(L)x615(W)x1194(H)mm
-
Weight:
-
270 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Automatic Adhesive Sticker Label Laminating Machine For Sale
-
Max Printing width:
-
210mm
-
Min. Printing width:
-
100mm
-
Printing speed:
-
10-700mm/s
-
Max. unwinding roll diameter:
-
500mm
-
Max. laminating roll diameter:
-
300mm
-
Max rewinding Diameter:
-
300mm
-
Max. matrix removing roll diameter:
-
300mm
-
Registering precision:
-
±0.02mm
Quick Details
-
Type:
-
Laminating Machine
-
Production Capacity:
-
10-700mm/s
-
Max. workable width:
-
none
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1660(L)x615(W)x1194(H)mm
-
Weight:
-
270 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Automatic Adhesive Sticker Label Laminating Machine For Sale
-
Max Printing width:
-
210mm
-
Min. Printing width:
-
100mm
-
Printing speed:
-
10-700mm/s
-
Max. unwinding roll diameter:
-
500mm
-
Max. laminating roll diameter:
-
300mm
-
Max rewinding Diameter:
-
300mm
-
Max. matrix removing roll diameter:
-
300mm
-
Registering precision:
-
±0.02mm
Products Description
Digital sticker label die cutting machine die cut label machine printing label machine label printer sticker machine
|
Max. label width
|
210mm
|
|
Min. label width
|
100mm
|
|
Speed
|
10-700mm/s
|
|
Max. unwinding roll diameter
|
500mm
|
|
Max. laminating roll diameter
|
300mm
|
|
Max.rewinding roll diameter
|
300mm
|
|
Max. matrix removing roll diameter
|
300mm
|
|
Cutting precision
|
0.02mm
|
|
Connection
|
USB
|
|
Software compatibility
|
Windows7,8,10
|
|
Power
|
100-120V, 200-240V, 50/60Hz; Printing 200W; Slitting 350W
|
|
Machine size
|
1660(L)x615(W)x1194(H)mm
|
|
Package size
|
1824(L)x974(W)x1472(H)mm
|

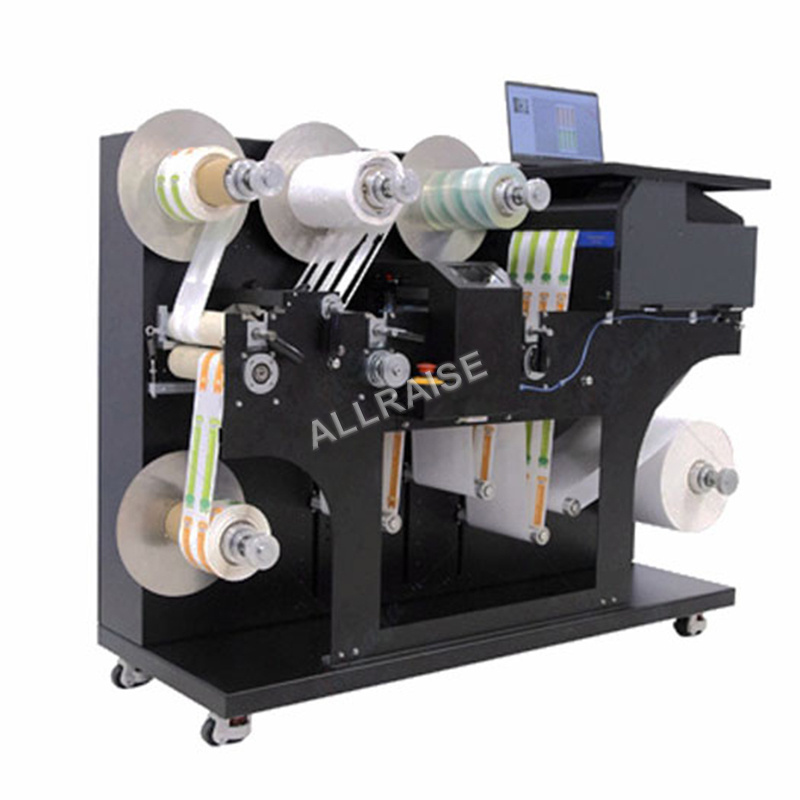

All-in-one Label machine functions includes: Label printing + Laminating + Die cutting (Half/full-cut)+ Matrix removing + Slitting+ Dual rewinding
|
1
|
It can be placed within 1000 meters of the coil processing, the coil can use all kinds of self-adhesive, the width is 420mm.
|
|
2
|
When working, the machine integrated labeling machine will be based on the camera positioning system.
|
|
3
|
Compared with the ordinary cutting plotter, it can achieve extremely high speed and accuracy, there by greatly improving production efficiency.
|
|
4
|
This machine is equipped with an automatic matrix removing system, which can individually wind the waste paper.
|
|
5
|
Then through the slitting knife, the original 420mm roll material is cut into the desired width and divided into rolls.
|
Related Products
Contact us
Tel/Whats App/Wechat: +86 13663008617
Package&Shipping
|
Packaging
|
By container or standard export packing per machine
|
|
Delivery time
|
15-30 days after payment received
|
