Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4100*1600*2450mm
-
Machine Weight:
-
2850 kg
-
Engine:
-
Europe standard
-
Name:
-

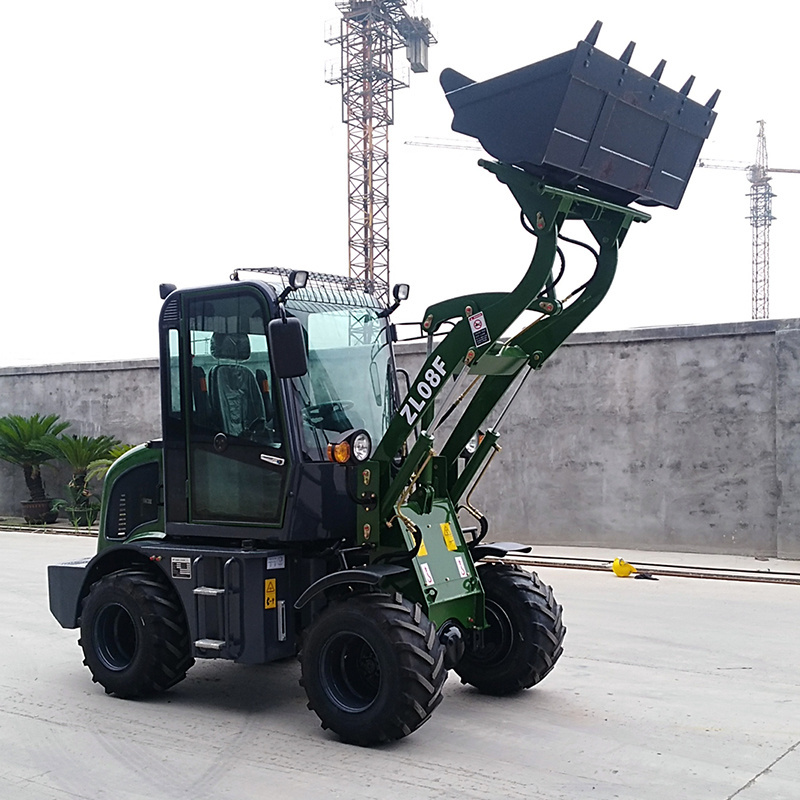

mini wheel loader
-
Keyword:
-
ZL-08 wheel loader
Quick Details
-
Engine Brand:
-
Changchai
-
Power:
-
17.2 kw
-
Brand Name:
-
Hongyuan
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4100*1600*2450mm
-
Machine Weight:
-
2850 kg
-
Engine:
-
Europe standard
-
Name:
-
mini wheel loader
-
Keyword:
-
ZL-08 wheel loader
Products Description
|
Rated loading weight
|
800kg
|
|
Rated bucket capacity
|
0.4CBM
|
|
Bucket width
|
1,400mm
|
|
Track base
|
1,285mm
|
|
Wheelbase
|
2,170mm
|
|
Minimum swerve diameter
|
4,600mm
|
|
Minimum ground clearance
|
240mm
|
|
Dump height fully raised
|
2,300mm
|
|
Reach fully raised
|
750mm
|
|
Lifting time
|
4 seconds
|
|
Hydraulic cycle time
|
9 seconds
|
|
Maximum tilt angle
|
300
|
|
Maximum bucket breakout force, lift cylinder
|
28kN
|
|
Driving mode
|
four-wheel drive
|
|
Operating weight
|
2,850kg
|
|
Dimensions (L x W x H)
|
4,600x 1,600 x 2,550mm
|
|
Engine model
|
Changchai 390
|
|
Engine type
|
in-line arrangement, water cooled, one-cycle diesel engine
|
|
Engine starting mode
|
electric
|
|
Rated speeds
|
2,200rpm
|
|
Rated power
|
25kW
|
|
Brake mode
|
four-wheel hydraulic spread-shoe brake
|
|
Supply ability
|
100 units per month
|
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine,
brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine,
brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Details Images
Major Feature:
1.Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2.Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
2.Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3.Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4.Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and
stability.
5.Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6.Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big
adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7.Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
3.Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
4.Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and
stability.
5.Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
6.Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big
adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
7.Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Application Introduction
Appurtenance
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
