* Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.
* The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.
* The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.* Oil-saving and Efficiency
* Hydrodynamic drive can not make full use of engine power when in low speed, and the engine will be over capacity when in high speed.
* Hydrostatic drive with electrical control system can ensure the pump absorb all engine torques.
* When engine works in high latitude or has abrasion, the control system can detect the performance reduction and make reduce absorb the torque.
* With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.
* The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
* The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
* The ergonomic hexahedral cab features large space and excellent visual field.
* The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
* The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
* The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.
* The safety passage system of the whole machine guarantees the driver’s safety.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SHANTUI
-
Model Number:
-
DH17
-
Dimension(Long * Breadth * High):
-
5250*3420*3080 mm
-
Pitch:
-
203 mm
Quick Details
-
Machine Weight:
-
17500 KG
-
Dozing Capacity:
-
4.5m³
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHANTUI
-
Model Number:
-
DH17
-
Dimension(Long * Breadth * High):
-
5250*3420*3080 mm
-
Pitch:
-
203 mm
Products Description
|
Engine
|
Model & type
|
Weichai VP10G190E354(CHINA II) Weichai ViD1 0G190E214(CHINA I)
|
|
|
Gross pover
|
140/1 88/1900 KW /HP/rpm
|
|
|
Net pover
|
127/170/1900 KW /HP/rpm
|
|
|
Piston displacement
|
9.726 L
|
|
|
Number of cylinders
|
6 -126 X 130 mm (bore X strolæe)
|
|
|
Maximum torque
|
900 N·m@1400-1 600 rpm
|
|
Walking hydraulic system
|
Type
|
Electronic control
|
|
|
Traveling pump (Rex-roth)
|
2
|
|
|
Traveling motor (Rex-roth)
|
2
|
|
|
Traveling system pressure
|
42 Mpa
|
|
Travel speed
|
Forward
|
0-10km/h
|
|
|
Reverse
|
0-10km/h
|
|
Undercarriage system
|
Carrier rollers
|
2 each side
|
|
|
Track rollers
|
7 each side
|
|
|
Width of track shoes
|
510/610 mm
|
|
|
Pitch
|
203 mm
|
|
Hydraulic System
|
Type
|
2 way hydraulic pilot control +1 way electric hydraulic hybrid control
|
|
|
Maximum pressure
|
21 MPa
|
|
|
Working pump (Par-ker}
|
1
|
|
|
Main valve (Hydrocontrol)
|
1
|
|
Blade
|
Blade type
|
Straight tilt blade/ Semi-U Blade
|
|
|
Dozing capacity
|
4.5/4.7 m3
|
|
|
Blade width
|
33 88/3400 mm
|
|
|
Blade height
|
1149/1200 mm
|
|
|
Maximum drop below ground
|
520 mm
|
|
|
Maximum lfting height
|
1010 mm
|
|
Riipper (Optional)
|
Ripper type
|
Three shank ripper
|
|
|
Maximum dgging depth
|
475 mm
|
|
|
Maximum lift above ground
|
570 mm
|
|
|
Maximum tilt
|
460 mm
|
Feature At Glance

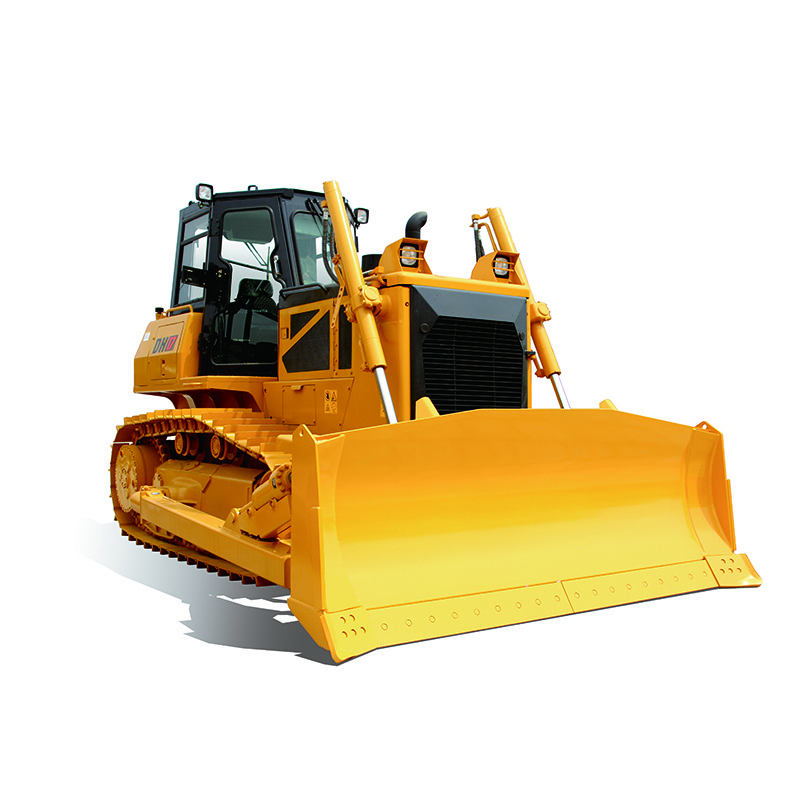

SHANTUI 180HP Bulldozer DH17 Shantui Crawler Bulldozer With Free Spare Parts
