Diewu 10/100 mbps 8ports micro control PoE network switch 10 ports for IP camera build in power adapter

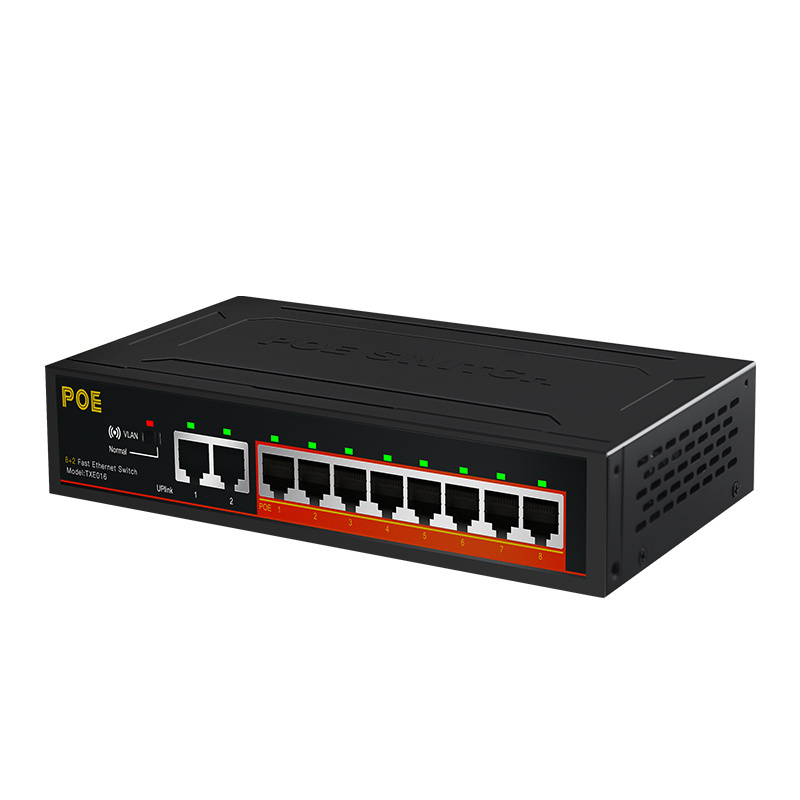

The TXE016 8-Port 10/100 Mbps PoE Switch enables you to supply both power and data to up to 8 PoE capable devices.

The switch complies with 802.3af/at PoE+ standards, supporting up to 30W on each PoE port, not to exceed the switch’s specific power budget. This PoE Switch features ten auto-detecting full/half-duplex ports with automatic crossover detection (MDI/MDI-X). The TXE016 enables users to easily connect and supply power to PoE capable devices such as wireless Access Points (Aps), IP cameras, and IP phones. And it can also connect other Ethernet devices like computers, printers, and Network Attached Storage (NAS) to fit into any type of network application.

Features

• Four 10/100Mbps Power Over Ethernet Ports

• 1 10/100M auto sensing RJ45 port

• Max. 30W for each PSE/PoE Port (Port 1~ 8 )

• Support long transmission distance at 250 meters

• Switch Mode:

Mode 1(Standard): all ports 10/100M auto-sensing @ 100 meters distance

Mode 2(Extend): PoE Port 1~ 8 : 10M bps @ 250 meters distance ; Ports 1 to 8 will be isolated from each other, but will still be able to communicate with uplink port 1-2

Uplinkports will always keep 100M bps @ 100 meters distance ;

• Auto-detect full/half-duplex, MDI/MDI-X

• IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-duplex

• Store and forward

• Fanless design

• Rugged metal or plastic enclosure
