Quick Details
-
Connection:
-
Both female thread
-
Voltage:
-
220VAC,24VAC
-
Certificate:
-
ISO9001:2008 CE
-
Body material:
-
Brass
-
Opening time:
-
15S
-
Output torque:
-
3.5NM
-
Protect level:
-
IP65
-
Type1:
-
1 inch ball valve
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Standard or Nonstandard:
-
Standard
-
Type:
-
2way/3way
-
Connection:
-
Both female thread
-
Voltage:
-
220VAC,24VAC
-
Certificate:
-
ISO9001:2008 CE
-
Body material:
-
Brass
-
Opening time:
-
15S
-
Output torque:
-
3.5NM
-
Protect level:
-
IP65
-
Type1:
-
1 inch ball valve
quick install brass valve both female BSP reduced bore electric ball valve AC220V AC24V CR02 DN20 DN25 DN32/Electric ball valve for HVAC systems Electric valve for HVAC 3 way motorised water valve fan coil unit valve electric heater control valve 24v dc electric actuator valve radiator heating 230v actuator valve valve hvac 1 inch ball valve

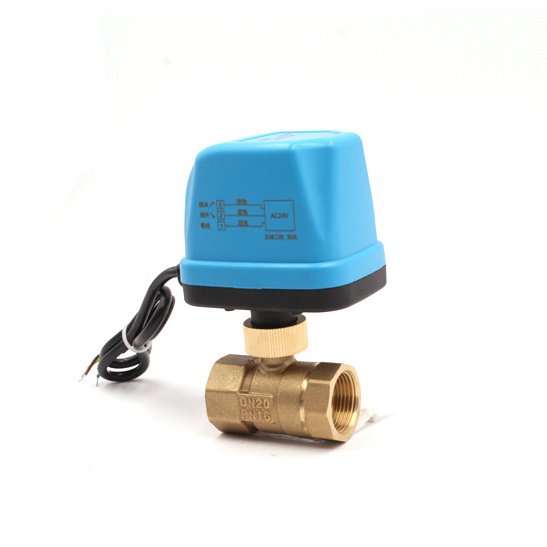

Quick install valve is specially used for on-off control Of HVAC water control system,
Valve is composed by two parts,electric actuator and valve body.Easy to remove
troubleshooting and Maintenance valve.Actuator with synchronous electric drive,
Action stable,Built-in limit contact point, so that the valve will power outage when fully
open or fully close,The valve body is brass forged.Valve using a large motor,Large
torque force, to achieve the valve Positive inversion.
H eat energy meter,HVAC,auto-control system
| Voltage | Control mode | Nominal pressure | Output torque | Connection end |
| AC220V | CR02 | 1.6Mpa | 3.5NM | Pipe thread G |
| AC24V | ||||
| Power consumption | Action time | Close differential pressure | Medium temperature | Wire length |
| 6VA | <15S | <0.4Mpa | 2-90℃ | 15cm |
| Connection | Diameter | φd | L | H | Weight |
| Both female thread | DN20 | 17 | 60.6 | 50 | 0.58 |
| DN25 | 23 | 70 | 64 | 0.69 | |
| DN32 | 27 | 75 | 67 | 0.86 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“ CWX ” is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products, use “ CWX ” valve is your correct choice.
