Quick Details
-
Model Number:
-
ALL kinds
-
Type:
-
Equipments
-
Product name::
-
Regulator
-
Size:
-
190*160*100mm
-
Working pressure:
-
0-3500Psi
-
Test pressure:
-
50Psi
-
Thread:
-
G5/8 or customized
-
size:
-
Dia 65*130 mm
-
Packing:
-
Carton
-
Standard:
-
ISO13485
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BANGWIN
-
Model Number:
-
ALL kinds
-
Type:
-
Equipments
-
Product name::
-
Regulator
-
Size:
-
190*160*100mm
-
Working pressure:
-
0-3500Psi
-
Test pressure:
-
50Psi
-
Thread:
-
G5/8 or customized
-
size:
-
Dia 65*130 mm
-
Packing:
-
Carton
-
Standard:
-
ISO13485
Products Description
■
Electric heating carbon dioxide pressure reducer, suitable for carbon dioxide gas shielded welding and mixed gas shielded welding. Pressure reducer body, cover, are made of high quality brass forging molding, more solid, durable, safe, the surface with baking paint treatment, easy to clean.
■
Pressure reducing valve body and heating device integrated design, more compact structure. The larger volume of low pressure chamber can provide sufficient and stable gas flow. Automatic thermostat to control the heating temperature between 50 and 60 degrees.
■
Special flow meter design on the output side, the output flow rate can be adjusted by the pressure adjustment handle, and the flow rate can be precisely adjusted within the range of 25-125 CFH, which is flexible.
■
The voltage of the heater is 36V, 110V and 220V, and the power supply is 190W.
■
The air inlet is equipped with sintered bronze filter, which can effectively filter the impurities and dust in the air source and help improve the working life of the valve sealing port.
■
The output interface is flexible and optional.
■
Inflatable reducer, a balloon inflatable designed for gatherings, festivals and other places
■
Unique output port design and inflatable switch integrated structure, wrenching the output end of the hose can easily control the closure of the inflatable port.
■
The main body is made of high quality brass forging and molding.
Piston type decompression structure.
■
The air inlet is equipped with a sintered bronze filter.
■
Five models are available.
■

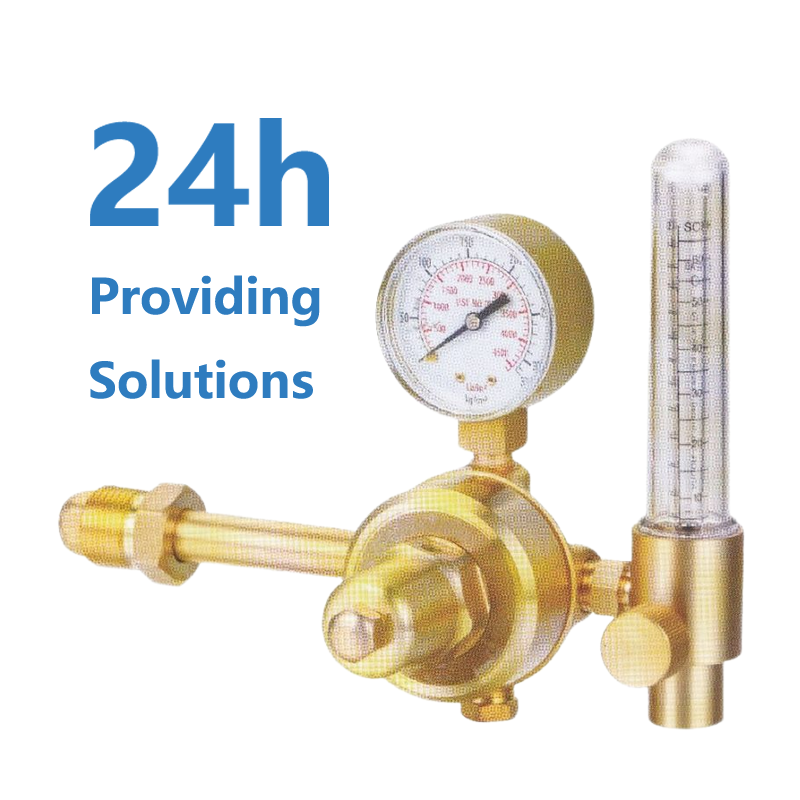

Flowmeter type pressure reducer, designed for MIG and TIG welding, suitable for industrial manufacturing, building installation and laboratory use.
■
Pressure reducer female body, upper cover, flowmeter body are made of high quality brass forging and molding, more solid, durable and safe.
■
Pressure reducer set the output pressure of 3.5 bar.
■
Buoy flowmeter in the state of 3.5 bar pressure, accurate display output flow.
Suitable for argo
■T
he use of polycarbonate flow tube, flow rate display value of all-round visual, not easy to damage, in case of accidental impact will not burst.
■
External safety valve, to ensure the safety of use. Sintered bronze filter on the inlet. Flow meter output interface with a variety of connectors can be selected.
■
The large pressure reducer is suitable for equipment and places where the stability of output pressure and flow rate is a special requirement.
■
When the inlet pressure is in the range of 10-150 bar, the pre-set output pressure of 2.6 bar can achieve a constant output.
■
The special high-sensitivity large-displacement safety valve ensures sufficient displacement, and the double safety valve design makes the displacement larger and safer.
■
The mother body is made of high quality brass forging and molding, the upper cover is made of zinc alloy die-casting, and the surface is treated by plastic spraying.
■
Pressure gauge for psi, bar double scale readings, a wider range of trial, more intuitive. Dual pressure gauge design, high pressure gauge adopts color block to indicate pressure value, more intuitive and convenient, low pressure gauge adopts lbf/in2, bar double scale.
■
The air inlet is equipped with a sintered bronze filter, which can effectively filter impurities and dust in the air source and help improve the working life of the valve sealing port.
■
Pressure reducer body, cover, are made of high-quality brass forging molding, more solid, durable, safe, the surface with baking paint treatment, easy to clean.
■
Pressure reducing valve body and heating device in one design, more compact structure. The larger volume of low pressure chamber can provide sufficient and stable gas flow.
■
Automatic thermostat to control the heating temperature between 50 and 60 degrees.
■
Special flow meter design on the output side, the output flow rate can be adjusted by the pressure adjustment handle, and the flow rate can be precisely adjusted within the range of 25-125 CFH, which is flexible for use.
■
The voltage of the heater is 36V, 110V and 220V, and the power supply is 190W.
■
The air inlet is equipped with a sintered bronze filter, which can effectively filter impurities and dust in the air source and help improve the working life of the valve sealing port.
The output interface is flexible and optional.
■
Heavy duty pressure reducer for piping, suitable for various large centralized gas supply manifold systems.
■
High quality brass forging and molding of the upper cover and the mother body.
■
Larger low-pressure chamber volume and special high-pressure chamber venting design can provide sufficient output flow and stable output pressure.
■
High-sensitivity large-displacement safety valve is set to ensure safe use.
■
High quality polycarbonate gauge front cover with snap-in design, not easy to damage. Double pressure gauge design, easy to read the cylinder pressure and working pressure data.
Clear dial
Plexiglas dial, the numbers are clearly visible, the dial is covered with a non-slip shock-resistant plastic case, shock-proof!
Protection valve
Self-protection valve, when the output pressure is greater than the rated pressure
When the output pressure is greater than 1.3 times of the rated pressure, the pressure reducing valve will automatically open the valve to release air and reduce pressure!
Filtering
High-density molecular brass filter is used at the interface of the pressure reducer, which can prevent impurities in the gas cylinder
with the gas into the table, to ensure the normal work of the table and improve the service life.
★We have boen undertaking research,development and manufacture of gas-relatod devices such as regulators for a long period.
★ We enjoy membership in National Technical Committee on lndustrial Process Measurement and Control of Standardization Administration of China,particlpating in amendment of several national standards. Our production procedure conforms to the requirements of ISO9001.
★ Our Research and Development Center for gas equipments is devoted to absorbing advanced foreign technique and innovation of our own exclusive new products.
★ Our Co2 regulator for beverage machine project enjoys support from National Innovation Fund.
★ We hold our own intellectual property rights for several paten of inventions and paten of utility models.* Our products scope covers cutting and welding systom,medical equipment,food and beverage machines,agricultural and gardening devices,as well as central gas supply stations.
★We seek to provlde rellable,versatlle and affordable gas equlpment wlth outstandIng performance forusers all over the world.
★ We enjoy membership in National Technical Committee on lndustrial Process Measurement and Control of Standardization Administration of China,particlpating in amendment of several national standards. Our production procedure conforms to the requirements of ISO9001.
★ Our Research and Development Center for gas equipments is devoted to absorbing advanced foreign technique and innovation of our own exclusive new products.
★ Our Co2 regulator for beverage machine project enjoys support from National Innovation Fund.
★ We hold our own intellectual property rights for several paten of inventions and paten of utility models.* Our products scope covers cutting and welding systom,medical equipment,food and beverage machines,agricultural and gardening devices,as well as central gas supply stations.
★We seek to provlde rellable,versatlle and affordable gas equlpment wlth outstandIng performance forusers all over the world.
regulator CO2 W21.8 interface working pressure 0-3000 PSI storage tank pressure CO2 pressure regulator
Our Factory
Certifications
Project Cases
Packing & Delivery
Our Service
FAQ
1.
What are the main products sold?
We mainly supply gas, steel cylinders, aluminum cylinders, valves and other parts of steel cylinders.
2. What is the minimum order quantity?
A: 100 pieces.
3. Delivery time?
Generally speaking, this deposit takes 15-20 days. The specific delivery time depends on the goods and quantity you ordered.
4. About payment?
Telegraphic transfer, letter of credit, PayPal, Western Union remittance, our chat, Ali payment, credit card or other according to the specific situation.
5. OEM design?
We have professional engineers and designers who can provide OEM design according to your requirements. For example, brand column shoulder, color, printing, etc
6. Do you provide samples? Is it free or extra?
Yes, we can provide samples free of charge, but we don't pay the freight.
7. Production capacity
(1) Strong supply capacity, more than 10000 steel cylinders are produced every day.
(2) Six factories in Shandong, Zhejiang, Liaoning, etc., with steel cylinders and aluminum cylinders in all categories, ensure rapid delivery in large quantities
(3) More than 20 years of production experience and more than 15 years of international trade experience.
(4) Strict quality management system.
(5) Rapid response, attentive service.
(6) High quality after-sales service.
