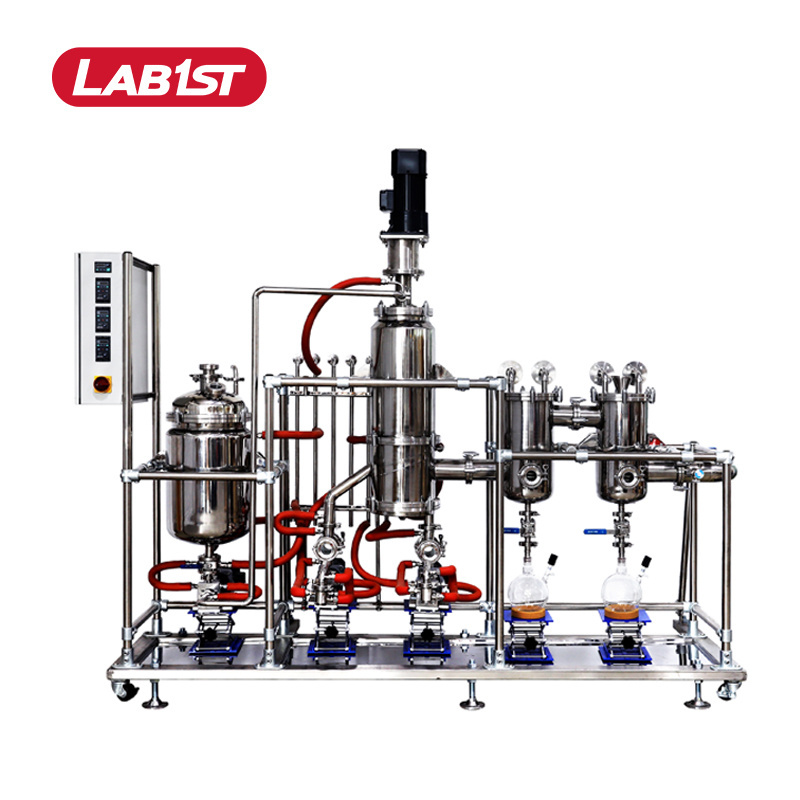

Lab1st pilot stainless steel wiped fimshort path molecular distillation units are available in various sizes (from 1.1sqft to 5.4sqft ), with processing speed up to 50kg/h. (For industrial-scale, it can be up to 500kg/h)
|
|
SMD-01
|
SMD-03
|
SMD-05
|
||
|
Feeding Rates（kg/h）
|
2 - 10
|
5 - 25
|
10 - 50
|
||
|
Herb Throughput (kg/h)
|
~3
|
~7.5
|
~15
|
||
|
Degree
|
Better than 10 Pa
|
|
|
||
|
Evaporation Area (㎡/sqft)
|
0.1㎡/ 1.1sqft
|
0.3 ㎡ / 3.2 sqft
|
0.5 ㎡ / 5.4 sqft
|
||
|
Diameter
|
125mm / 4.9"
|
210mm / 8.3"
|
300mm / 11.8"
|
||
|
Wiper Style
|
Scaper
|
|
|
||
|
Material
|
SS316L / PTFE (wiper blade)
|
|
|
||
|
Vacuum Seal
|
Magnetic Sealing
|
|
|
||
|
Scraper Motor Power (w)
|
370
|
750
|
1500
|
||
|
Speed Regulation Mode
|
Variable Frequency Drive
|
|
|
||
|
Max.Scraping Speed (rmp)
|
450
|
|
|
||
|
Max. temperature
|
250℃
|
|
|
||
|
Jacket Volume(L)
|
1.1
|
7.1
|
17.3
|
||
|
Volume(L)
|
0.23
|
1.24
|
3.9
|
||
|
Heat Exchanging Area (㎡）
|
0.18
|
0.55
|
1.7
|
||
|
Volume(L)
|
20
|
30
|
50
|
||
|
Jacket Volume(L)
|
10
|
14
|
20
|
||
|
Standard Feeding Rate (L/h)
|
1.5-12
|
2.5-24
|
2.5-24
|
||
|
Drive Motor Power （w）
|
200
|
200
|
200
|
||
|
Type
|
Cooling Coil Style
|
|
|
||
|
Receiving Flask (L)
|
2
|
2
|
5
|
||
|
Type
|
Dewar Style
|
|
|
||
|
Receiving Flask (L)
|
2
|
2
|
5
|
||
|
Heat Preservation Method
|
Jacketed Insulation
|
|
|
||
|
Material
|
304 Stainless Steel
|
|
|
||
|
Power
|
220V-Single Phase / Customizable
|
|
|
||
