Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
POE-26FB-24
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 port passive poe switch 24v
-
PoE Ports:
-
24 FE poe
-
Uplink:
-
2 gigabit rj45
-
power:
-
300W/400W/500W optional
-
Power plug:
-
EU/US/UK/AU optional
-
Power pin:
-
4/5+,7/8-
-
Size:
-
440mm*220mm*45mm
-
Housing case:
-
19" rackmountable metal case
-
DIP switch:
-
vlan optional
-
Warranty:
-
1 year
Quick Details
-
Transmission Rate:
-
24FE poe+2 GE
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
8.8Gbps
-
Brand Name:
-
OEM
-
Model Number:
-
POE-26FB-24
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 port passive poe switch 24v
-
PoE Ports:
-
24 FE poe
-
Uplink:
-
2 gigabit rj45
-
power:
-
300W/400W/500W optional
-
Power plug:
-
EU/US/UK/AU optional
-
Power pin:
-
4/5+,7/8-
-
Size:
-
440mm*220mm*45mm
-
Housing case:
-
19" rackmountable metal case
-
DIP switch:
-
vlan optional
-
Warranty:
-
1 year

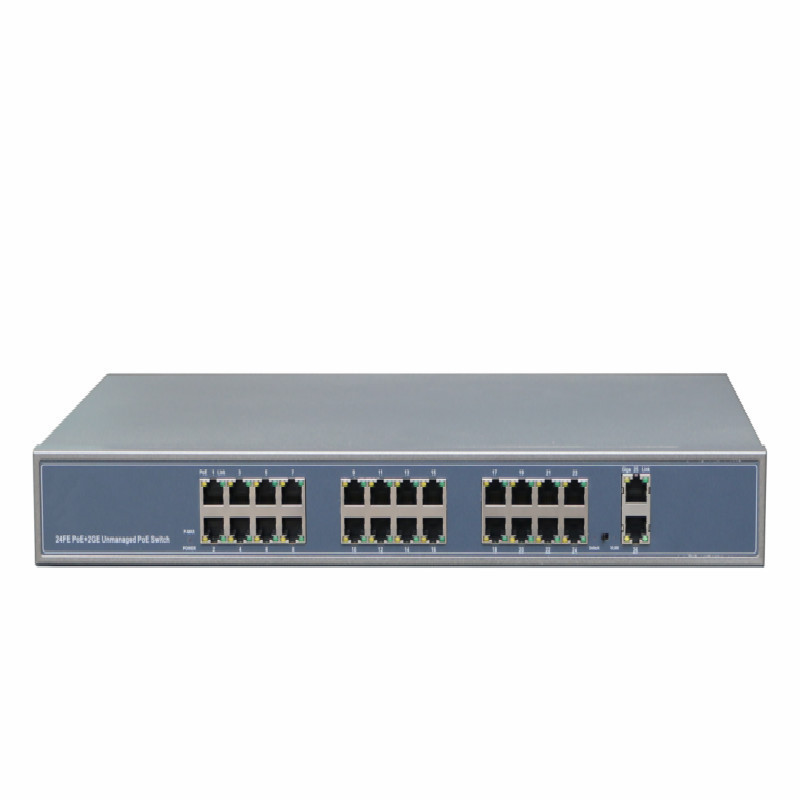

2024 hot 1U rack 24 port passive poe switch 24v for Ubiquiti airfiber X wireless backhaul
POE-26FB-24 is a high quality reliable 24 port passive poe switch 24v.It provides 24 10/100mbps POE auto-sensing rj45 port,output 24v passive POE.Each poe port output max 30w,total power 300w/400w/500w optional,AC 100-240V.
In addition,there are 2 10/100/1000mbps auto -sensing rj45 uplink ports to extending network connections.
It's widely used to power 24v passive pd like Ubiquiti 24v poe wireless access point/p2p CPE/video camera etc, and easy for network transmission.
Features
1,24FE POE 24v.2 GE rj45 uplink
2,Comply to IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab
3,POE output directly,no detecting
4,Support 24v pd directly,or add 24v to 12v poe splitter to power non-poe ip cameras etc
5,Flow Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
6,Auto MDI/MDIX.
7,Upstream port lightning protection.
8,POE port MAX 30W, Total MAX power 300W.
9,Store-and-forward.
10,All ports support wire speed store-and-forward, jumbo frame transmission.
11,Unmanaged,no need configuration
12,LED indicators monitor working status,supporting simple trouble shooting
13,desktop/wall-mounted metal housing case
14,300/400/500w power optional,AC 100-240V input
Application
1) 24v passive poe switch to power 24v pd(like ubnt 24v poe wifi products) directly
2) 24v passive poe switch+24v to 12v poe splitter to power non-poe ip camera
Shipped by EMS/FedEx/DHL/UPS/TNT/Air/Sea etc.
5pcs/ctn,kraft paper box or OEM package.
How about the quality?
All our products manufactured with new brand materials,best design with strict old-aging testing and qc tested.
Do you provide OEM service?
Yes, we mainly provide OEM/ODM manufacturing.
Do you provide only PCBA?
Sure,PCBA is welcome here.
Is there MOQ limited?
Welcome to place sample order to check the quality before bulk orders.
Any qty welcome,but as you know,different qty with different price.
Large qty means low cost.
How long warranty period?
All products offered by CCTECH provides 1 year warranty.
