Quick Details
-
Application:
-
Construction, Building Construction
-
Design Style:
-
Industry
-
Type:
-
Scaffolding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
RS.L
-
Material:
-
Q235,Q355
-
MOQ:
-
20 Tons
-
Surface treatment:
-
Hot dip galvanized, powder coated, painted
-
Tube thickness:
-
3.5mm,3.0mm,2.75mm,2.5mm
-
Item:
-
Construction Layher Ringlock Scaffolding
-
Certificate:
-
SGS/ISO9001:2015
-
Standard:
-
EN12810
-
Package:
-
Stee Pallet
-
Product name:
-
Ringlock Scaffolding Level Bracer
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Construction, Building Construction
-
Design Style:
-
Industry
-
Type:
-
Scaffolding
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shuangma
-
Model Number:
-
RS.L
-
Material:
-
Q235,Q355
-
MOQ:
-
20 Tons
-
Surface treatment:
-
Hot dip galvanized, powder coated, painted
-
Tube thickness:
-
3.5mm,3.0mm,2.75mm,2.5mm
-
Item:
-
Construction Layher Ringlock Scaffolding
-
Certificate:
-
SGS/ISO9001:2015
-
Standard:
-
EN12810
-
Package:
-
Stee Pallet
-
Product name:
-
Ringlock Scaffolding Level Bracer
Product application

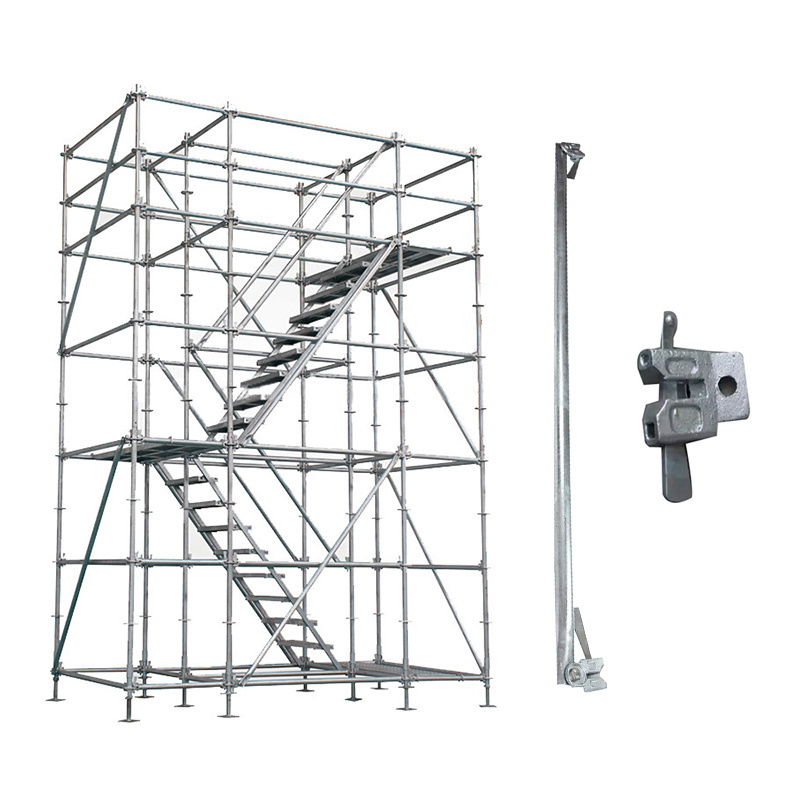

Ringlock Scaffolding, also called all roound scaffolding, is one of the most popular modular system scaffolding for construction.It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance,etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform /grandstand for events, and also plays a heavy load duty in many kinds of project.
Product Description
|
Code
|
Description
|
Weight (kg)
|
|
RS.S.400P
|
4.00M Standard
|
18.68
|
|
RS.S.350P
|
3.50M Standard
|
16.42
|
|
RS.S.300P
|
3.00M Standard
|
14.17
|
|
RS.S.250P
|
2.50M Standard
|
11.92
|
|
RS.S.200P
|
2.00M Standard
|
9.66
|
|
RS.S.150P
|
1.50M Standard
|
7.41
|
|
RS.S.100P
|
1.00M Standard
|
5.16
|
|
RS.S.050P
|
0.50M Standard
|
2.90
|
|
Code
|
Description
|
Weight (kg)
|
|
RS.L.305
|
3.05M Ledger
|
11.47
|
|
RS.L.244
|
2.44M Ledger
|
9.28
|
|
RS.L.213
|
2.13M Ledger
|
8.19
|
|
RS.L.183
|
1.83M Ledger
|
7.10
|
|
RS.L.152
|
1.52M Ledger
|
6.01
|
|
RS.L.122
|
1.22M Ledger
|
4.91
|
|
RS.L.115
|
1.15M Ledger
|
4.66
|
|
RS.L.107
|
1.07M Ledger
|
4.37
|
|
RS.L.091
|
0.91M Ledger
|
3.82
|
|
RS.L.065
|
0.65M Ledger
|
2.87
|
|
RS.L.061
|
0.61M Ledger
|
2.73
|
|
Code
|
Description
|
Weight (kg)
|
|
RS.DB.305200
|
3.05x2.0M Diagonal Brace
|
11.33
|
|
RS.DB.244200
|
2.44x2.0M Diagonal Brace
|
9.97
|
|
RS.DB.213200
|
2.13x2.0M Diagonal Brace
|
9.35
|
|
RS.DB.183200
|
1.83x2.0M Diagonal Brace
|
8.78
|
|
RS.DB.152200
|
1.52x2.0M Diagonal Brace
|
8.26
|
|
RS.DB.122200
|
1.22x2.0M Diagonal Brace
|
7.82
|
|
RS.DB.115200
|
1.15x2.0M Diagonal Brace
|
7.73
|
|
RS.DB.107200
|
1.07x2.0M Diagonal Brace
|
7.63
|
|
RS.DB.091200
|
0.91x2.0M Diagonal Brace
|
7.47
|
|
RS.DB.065200
|
0.65x2.0M Diagonal Brace
|
7.25
|
|
RS.DB.061200
|
0.61x2.0M Diagonal Brace
|
7.22
|
|
Code
|
Description
|
Weight (kg)
|
|
RS.SST.213
|
7' Stringer Stair set
|
134.25
|
|
RS.SST.STR
|
7' Stringer
|
25.56
|
|
RS.SST.TRD
|
32" Tread
|
8.31
|
|
Code
|
Size (Metric)
|
Weight(kg)
|
|
SP2.24305
|
240x3048mm
|
19.80
|
|
SP2.24244
|
240x2438mm
|
16.20
|
|
SP2.24213
|
240x2134mm
|
14.50
|
|
SP2.24183
|
240x1829mm
|
12.68
|
|
SP2.24152
|
240x1524mm
|
10.90
|
|
SP2.24122
|
240x1219mm
|
9.12
|
|
SP2.24115
|
240x1150mm
|
8.84
|
|
SP2.24106
|
240x1067mm
|
8.25
|
|
SP2.24091
|
240x914mm
|
7.36
|
|
SP2.24065
|
240x650mm
|
5.79
|
|
SP2.24061
|
240x610mm
|
5.55
|
Automatic-weling-machine
With automatic welding technology,stable quality,uniform and smooth surface
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.
Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
