Quick Details
-
Size:
-
9000mm*3000mm*1175mm
-
Place of Origin:
-
Shandong, China
-
weight:
-
21ton
-
axle capacity:
-
34ton
-
number of driving axle:
-
6
-
capacity:
-
183ton
-
speed:
-
5km/h
-
wheel base:
-
1800mm
-
tyre:
-
215/75r17.5 135/133j
-
track:
-
1500
-
number of tyre:
-
48
Quick Details
-
Type:
-
Full Trailer
-
Max Payload:
-
183t
-
Brand Name:
-
JLB
-
Size:
-
9000mm*3000mm*1175mm
-
Place of Origin:
-
Shandong, China
-
weight:
-
21ton
-
axle capacity:
-
34ton
-
number of driving axle:
-
6
-
capacity:
-
183ton
-
speed:
-
5km/h
-
wheel base:
-
1800mm
-
tyre:
-
215/75r17.5 135/133j
-
track:
-
1500
-
number of tyre:
-
48
Technical Specification
|
Number Of Axle Wire
|
6
|
|
|
|
Speed(Km/h)
|
5
|
80
|
|
|
Maximum Total Mass (T)
|
204
|
98.4
|
|
|
Self-Weight (t)
|
21
|
|
|
|
Rated Load(t)
|
183
|
77.4
|
|
|
Load On Axle Journals(t)
|
34
|
16.4
|
|
|
Length(mm)
|
9000
|
|
|
|
Width(mm)
|
3000
|
|
|
|
High(mm)
|
1175±300
|
|
|
|
Wheel Base(mm)
|
1500
|
|
|
|
Track(mm)
|
1800
|
|
|
|
Tyre Size
|
215/75R17.5135/133J
|
|
|
|
Wheel Rim Size
|
6.00-17.5
|
|
|
|
Number Of Tires
|
48
|
|
|
|
Wheel Angle
|
55°
|
|
|
|
Radius Of Turning Circle (mm)
|
2000 (Inside ) 9500 (Outside)
|
|
|

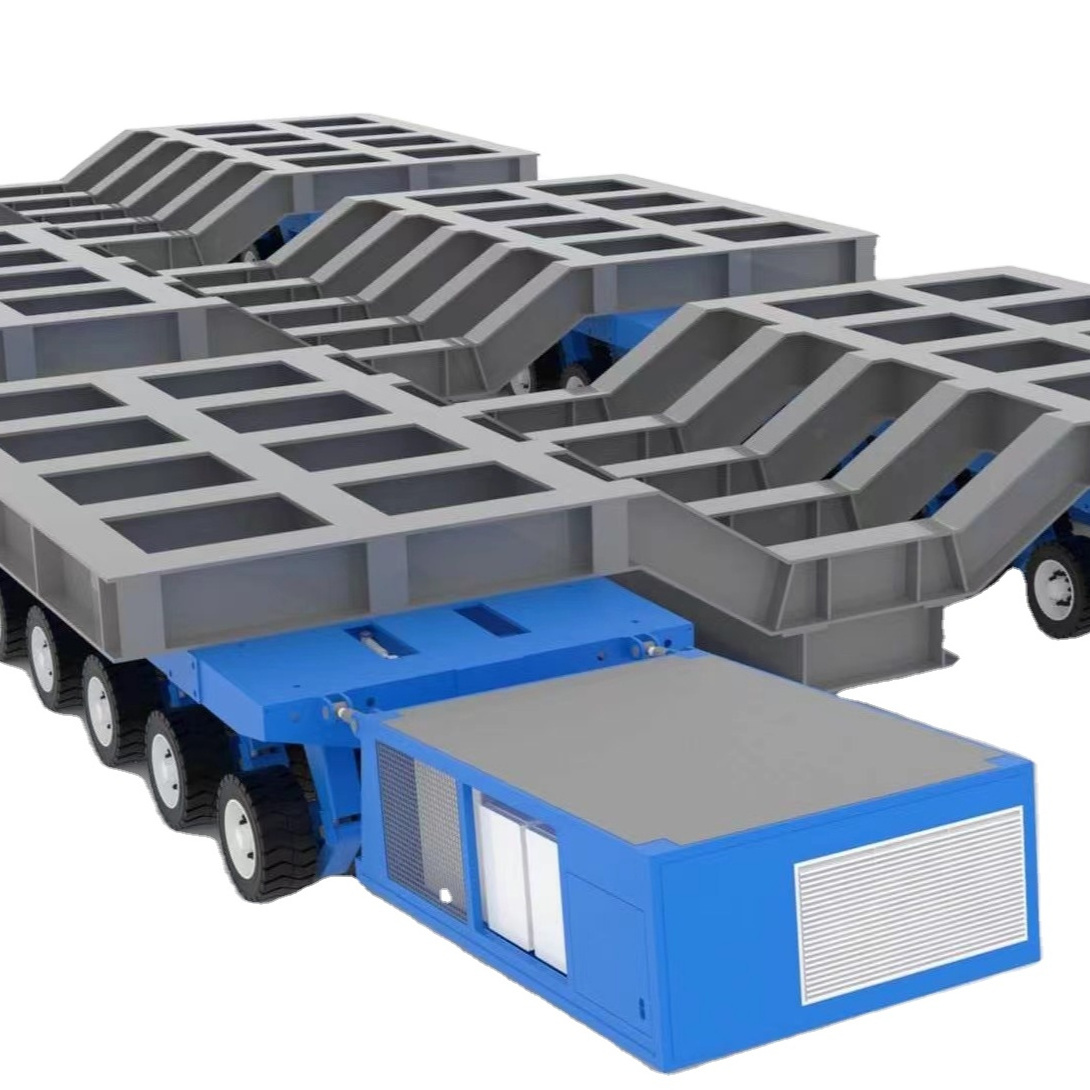

With the modernization of the industrial sector and the development of production methods and the increase in the capacity of large-scale construction equipment, the transport industry is facing new challenges. Our company conforms to the development of The Times, absorbs foreign advanced technology, and independently develops modular hydraulic trailer, which can meet the user's 40-15000T cargo transportation requirements and escort the large transportation.
Technical parameters of trailer neck
|
Size: Length * width * height(mm)
|
4089*2480*1905
|
|
Saddle Load Rating(t)
|
35
|
|
Saddle Height(mm)
|
1552
|
|
Kingpin
|
90mm
|
|
Maximum Angle
|
70°
|
|
Splice Cargo Table height(mm)
|
1175
|
|
Weight (kg)
|
5600
|
function and character
1.Pneumatic tyre
2.With modular design,the vehicle can be coupled side-by-side or end-by-end. Hydrostatic drive system and air brake system.
3.The electric hydraulic synchronous lifting.
4.Hydraulic suspension,the lifting compensation is ±300mm.
5.The hydraulic three points supporting or four points supporting.
6.The worm-and-gear steering device.
7.Electronic compound multi-mode steering system,7 steering modes.
8.The CAN bus electric system.
9.Equiped with one-way anti-break valve.
10.Hydraulic propelled anti-skid system.
11.Radio remote controller.
12.Center of gravity display.
