Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK-52
-
Voltage:
-
220V/380V/400V/415V/440V/660V 50Hz/60Hz
-
Power:
-
3kw, 5.5kw, 7.5kw
-
Dimension(L*W*H):
-
1.13*1.02*0.54
-
Weight:
-
520 kg,
-
Name:
-
concrete shotcrete machine
-
Model:
-
QK-52
-
Jet capacity:
-
5.5/h
-
Maximum transmission distance:
-
200m
-
Water-cement ratio:
-
0.4
-
Maximum aggregate particle size:
-
15mm
-
Inner diameter:
-
50mm
-
Working pressure:
-
0.2-0.6MPa
-
Air consumption:
-
7-8/min
-
Drive power:
-
5.5kW
Quick Details
-
Max Aggregate Size:
-
20
-
Hose Inner Diameter:
-
20 mm
-
Air Consumption:
-
5~6m3/min,7~8m3/min,9~10m3/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK-52
-
Voltage:
-
220V/380V/400V/415V/440V/660V 50Hz/60Hz
-
Power:
-
3kw, 5.5kw, 7.5kw
-
Dimension(L*W*H):
-
1.13*1.02*0.54
-
Weight:
-
520 kg,
-
Name:
-
concrete shotcrete machine
-
Model:
-
QK-52
-
Jet capacity:
-
5.5/h
-
Maximum transmission distance:
-
200m
-
Water-cement ratio:
-
0.4
-
Maximum aggregate particle size:
-
15mm
-
Inner diameter:
-
50mm
-
Working pressure:
-
0.2-0.6MPa
-
Air consumption:
-
7-8/min
-
Drive power:
-
5.5kW
Products Description

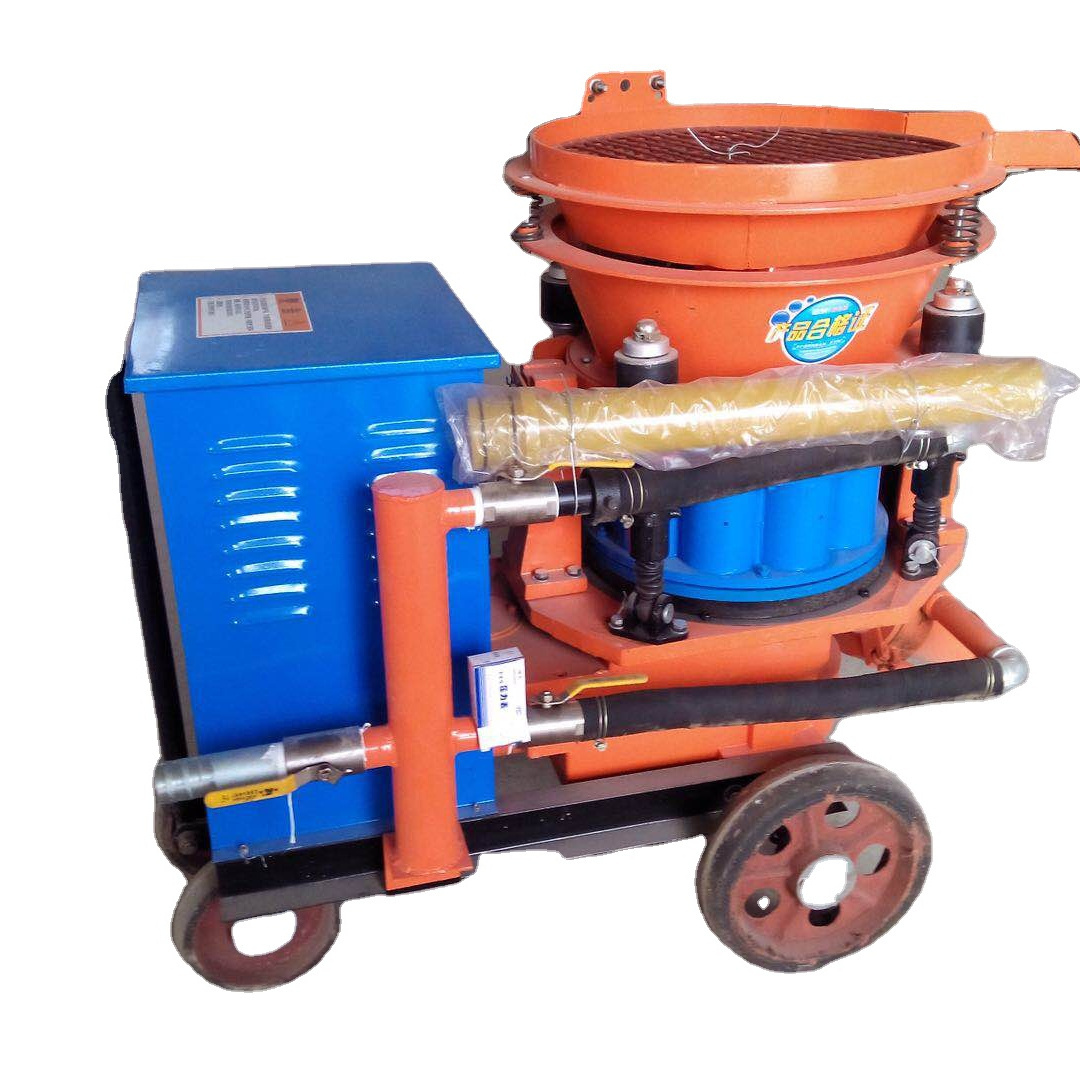

concrete shotcrete machine
product description：
Concrete shotcrete machine is widely used in construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and coal swamp mine roadway shotcrete construction operations: various types of industrial furnaces, refractory lining spray molding or repair: In the construction of various slope protection and greening, soil transportation and spraying. The machine can be used for dry spraying and individual fiber spraying.
Product Paramenters
|
Capacity
|
5~7m³/h
|
7~9m³/h
|
|
Conveying distance
|
35m(wet)/120m(dry)
|
30m(wet)/100m(dry)
|
|
Max. aggregate size
|
20mm
|
20mm
|
|
Concrete slump
|
8~15cm
|
8~15cm
|
|
Conveying Pipe ID.
|
57mm
|
57mm
|
|
Rebound rate
|
≤10%(on average )
|
≤10%(on average )
|
|
Rated working pressure
|
0.3-0.6Mpa
|
0.3-0.6Mpa
|
|
Air consumption
|
9-10m³/min
|
10m³/min
|
|
Motor power
|
7.5kw
|
7.5kw
|
|
Max. Pump discharge of accelerator
|
35-200L/h
|
35-200L/h
|
|
Voltage rating of accelerator
|
0.6Mpa
|
0.6Mpa
|
|
Voltage
|
380V/660V
|
380V/660V
|
|
Dimension
|
2050*950*1180(mm)
|
2100*900*1200(mm)
|
|
Weight
|
980kg
|
1000kg
|
Product packaging & delivery
|
Packaging Details
|
Standard wooden box packing
|
|
Port
|
qingdao
|
|
Lead time
|
three days
|
