Quick Details
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Material:
-
Polyimide Film
-
Voltage range:
-
1.5v to 400v
-
Watt density:
-
1.1-6.5w/cm2
-
Thickness:
-
0.15mm-0.25mm
-
Color:
-
Yellow
-
Width range:
-
10mm~500mm
-
Length range:
-
10mm~1800mm(0.39"~70.86")
-
Certification:
-
CE, ISO9001, Rohs
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V 24V 220V or customized
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support
-
Material:
-
Polyimide Film
-
Voltage range:
-
1.5v to 400v
-
Watt density:
-
1.1-6.5w/cm2
-
Thickness:
-
0.15mm-0.25mm
-
Color:
-
Yellow
-
Width range:
-
10mm~500mm
-
Length range:
-
10mm~1800mm(0.39"~70.86")
-
Certification:
-
CE, ISO9001, Rohs

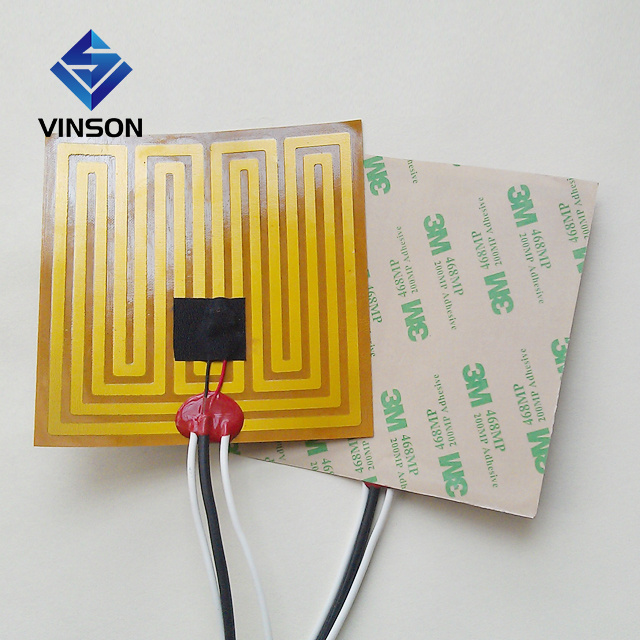

Customized 3.7v 5v 7.4v 9v 12v 24v 36v 48v 60v 120v 220v 240v polyimide film kapton heater
Kapton Foil Heater are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.
Kapton Foil Heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Applications.
• Medical applications that require a clean, sterile environment
• Laboratory research
• Semiconductor processing equipment
• Optical equipment
• LCD displays
• Computer equipment
• Photographic equipment
• Aerospace/defense, where low outgassing properties
are required
Maximum Allowable Watt Density Versus Temperature.
Note:
The maximum watt density (W/in2) in open air is 5 W/in2. The chart right assumes bonding the polyimide heater to a part.
