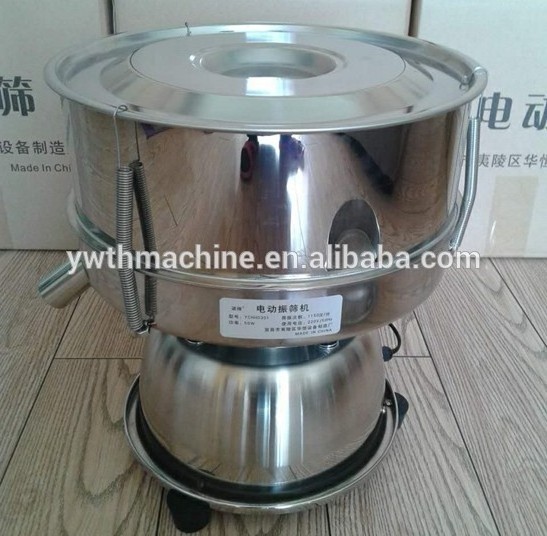

small powder paint vibrating screen electric sieve shaker

Industries Applicable
Food industry,chemical industry,metal,laboratory;Metallurgical Mining, pharmaceutical industry; abrasive metallurgical industry; ceramic industries.

Features

1.The machine uses a special high-performance, low energy consumption vertical motor,to provide you with exciting power, it can work for 24 hours a day.

2.Body and material contact parts all made of stainless steel, sanitary, sterile anti-corrosion, abrasion resistance outstanding.

3.Sifter filtration with ultra-high efficiency, compact design and durability, any powder can be used, small size, does not occupy space, easy to move.

4.The screen is to use cutting-edge stretching technology,greatly increases the effective area of the screen, with a special screening of high precision, so that production has been further improved.

5.With vertical vibration motor, no mechanical transmission, so exciting force transfer process without loss effectively transmitted to the screen surface, for network faster and more convenient, just a few seconds.

6.Wide range of applications:Thermosetting powder coatings, plastic powder, epoxy powder, food, beverage, pharmaceutical, chemical, plastics, abrasives, ceramics, paper, nanomaterials industry grading, screening, cleaning, mixing, and filtration, ideal for solid-liquid separation equipment, etc.

Sieve size Reference
Flour:40-60 mesh
Making cake:50 mesh
Breaded:10-30 mesh
Corn flour:20-50 mesh
Chinese medicine powder:50-100 mesh
Pearl powder:120-180 mesh
Spray powder:120-140 mesh
3D printing 316 powder:300-500 mesh
Cellulose:80-100 mesh

Note: Please remark the mesh you need when order

1.Sieve specification:10-500 mesh(USD20 will be added for 200 mesh & above)

2.Sieve diameter:300mm

3.Screen frame height:80mm

4.Vibration frequency:1150RPM

5.Motor power:50W

6.Voltage:220V 50Hz

7.Dimensions:33*32cm

8.Weight:8Kg

The whole set includes:1 stainless steel mesh (screen frame is stainless iron)+ 1 anti-skid pad + 1 cover.
