Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
linnuo
-
Model Number:
-
A
-
Type:
-
A
-
Product Name:
-
Waterproof Membrane
-
Material:
-
Polymer multilayer composite
-
Weight:
-
500g/m2
-
Keyword:
-
Building Material Waterproofing Membrane
-
Certificate:
-
CE ISO9001
-
Feature:
-
High Strength
-
Advantage:
-
Waterproof Performance
-
Color:
-
Grey/blue
-
Delivery time:
-
7-15 Days
-
Size:
-
Customer's Drawings
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, NONE
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Office Building
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
linnuo
-
Model Number:
-
A
-
Type:
-
A
-
Product Name:
-
Waterproof Membrane
-
Material:
-
Polymer multilayer composite
-
Weight:
-
500g/m2
-
Keyword:
-
Building Material Waterproofing Membrane
-
Certificate:
-
CE ISO9001
-
Feature:
-
High Strength
-
Advantage:
-
Waterproof Performance
-
Color:
-
Grey/blue
-
Delivery time:
-
7-15 Days
-
Size:
-
Customer's Drawings
Product Description
|
Product Name
|
Metal roof waterproof and heat insulation self-adhesive membrane
|
|
Product Material
|
Polymer multilayer composite
|
|
product Weight
|
About 500g/㎡
|
|
Shelf Life
|
Unopened, three years
|
|
Features
|
1.5mm thickness，Optimization of asphalt，Simple construction,Good water resistance,Good flexibility,Resistance to deformation,Highand low temperature resistance
|
|
Scope of application
|
Various cracks, sun room, color steel tile, aluminum composite panel, compartment seal, nozzle seal, etc.
|
Design concepts :
1， High reflective property to realize Green Energy
2，
Anti-weathering and chemical resistance to ensure product service life
3， Water oil dust repellence, and easy cleaning
Product structure:
1.PTO film (function to prevent oxidation and decolorization of the aluminized film, the main protective layer)
2. Aluminized film (acts as heat insulation and reflects ultraviolet rays to enhance the service life of the coil)
3. Polymer PE film (continue to play a waterproof effect when the PTo film aluminized film is aging. Note: The oxidation of the aluminized film will lose the insulation effect but the waterproof effect will not be lost)
4. Chemical fiber water repellent cloth (for heat insulation and auxiliary heat preservation)
5. Special waterproof glue (the company's independent research and development, the characteristics of bad weather will not appear dry glue, long-lasting adhesion)
6. Isolation film (tear off)
Material anti-aging, heat insulation, waterproof, anti-ultraviolet, anti-oxidation, anti-acid, soft, light
Convenient, easy to install, not affected by seasonal weather, thermal expansion and contraction, resulting in damage to the metal layer; outdoor design makes
The service life is more than ten years;
Application
Product application
:
Usually the most suitable for the roof of steel structure factory and other building roof heat insulation, waterproof leakage, sound insulation, rust prevention, damage repair, aging renovation. It is currently the world's most advanced thermal insulation, waterproof and leakage mending material.
After installation, when exposed to the sun in summer, the indoor temperature can be reduced by 30%-40%, and the roof surface is the highest
The temperature can be lowered by more than 20°C (for example, when the surface of the color steel tile or concrete roof reaches 65°C under the violent sun in summer, the surface temperature of the sunscreen treasure insulation and leak-proof mending blanket is about 45°C, directly Decrease the temperature by about 20℃), the higher the temperature, the greater the temperature drop (temperature difference).
Product Features
Product Function:
The roof of the factory building is covered with a layer of sunscreen treasure thermal insulation and waterproof leakage trapping blanket, which can have a significant thermal insulation (anti-radiant heat) effect, 100% waterproof trapping, and sound insulation; it will not allow sunlight, ultraviolet rays, rain acid to corrode the roof. Make your roof less susceptible to aging and water leakage (the rusty and aging loopholes in the tin room do not need to be replaced).
The surface of the roof is silvery white with a beautiful appearance. The construction process does not affect the indoor production operations, and the activities can still be carried out on it after the construction is completed.
Insulation in summer: heat resistance comes from the outdoors, bringing a cool and comfortable working environment indoors: also greatly reducing
Low air-conditioning power consumption reduces expensive electricity bills.
In winter, protect the product to prevent the indoor temperature from leaking. It does not need (or does not take a long time) to use an electric heater to achieve
To the effect of cold and heat preservation. Bring energy saving, low carbon and environmental protection to the social environment.
Details Images

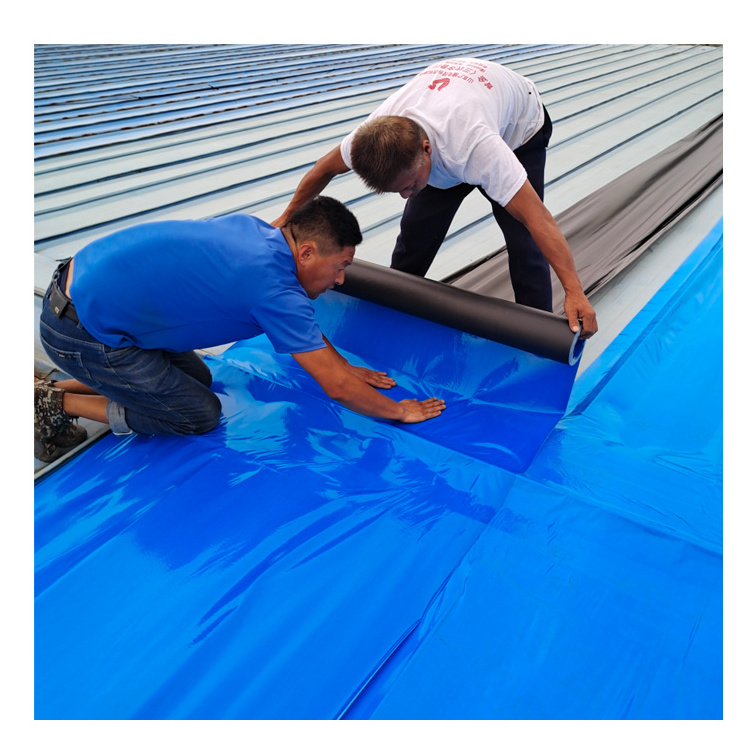

Construction steps
