- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
BIO-1000
-
Product name:
-
auto perimeter
-
Model:
-
BIO-1000
-
Stimulating source of LED::
-
Two visual lights: yellow and red
-
Error of background brightness::
-
4asb±10%
-
Window of eye-position tracking::
-
White-black CCD
-
Radius of stimulator::
-
300mm±5mm
-
Stimulating strength::
-
From 0nt (0asb) to318.310nt (1000asb)
-
Light spot Diameter::
-
2mm +/- 0.25mm
-
stimulating retention time::
-
0.2s--2.0s
-
The length of chin rest::
-
80mm±10%
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Timar
-
Model Number:
-
BIO-1000
-
Product name:
-
auto perimeter
-
Model:
-
BIO-1000
-
Stimulating source of LED::
-
Two visual lights: yellow and red
-
Error of background brightness::
-
4asb±10%
-
Window of eye-position tracking::
-
White-black CCD
-
Radius of stimulator::
-
300mm±5mm
-
Stimulating strength::
-
From 0nt (0asb) to318.310nt (1000asb)
-
Light spot Diameter::
-
2mm +/- 0.25mm
-
stimulating retention time::
-
0.2s--2.0s
-
The length of chin rest::
-
80mm±10%
Product Description

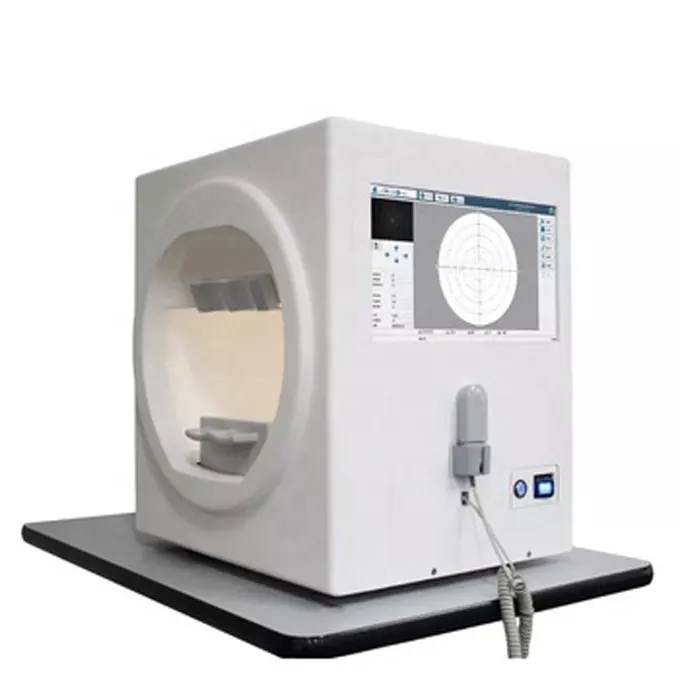

* The BIO-1000 automated perimeter absorbs the advantages of international advanced perimetry devices.
* It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advanced
configuration, comprehensive software inspection categories, it provide international standard 6 analysis report of glaucoma,
fundus disease, visual pathway injury and neurological diseases
* omprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring, gaze tracking/head position tracking,
automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection
* Personalized design, accurate clinical analysis, accurate and rapid examination strategy
* A variety of classic test procedures, including international standard six report analysis
* It comprises the highly integrated computer, optics, machinery and electronics systems. Incorporated with the advanced
configuration, comprehensive software inspection categories, it provide international standard 6 analysis report of glaucoma,
fundus disease, visual pathway injury and neurological diseases
* omprehensive real-time monitoring, heiji-krakau physiological blind spot monitoring, gaze tracking/head position tracking,
automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection
* Personalized design, accurate clinical analysis, accurate and rapid examination strategy
* A variety of classic test procedures, including international standard six report analysis
Specification
|
Inspection range
|
90°
|
|
Inspection distance
|
30CM
|
|
Background light brightness
|
White 31.5 asb
|
|
Visual target brightness
|
1 asb---10000 asb
|
|
Visual target size
|
Goldman Ⅲ
|
|
Visual target interval time
|
200ms
|
|
Visual target interval time
|
Standard or adjustment according to patient reflection
|
|
Threshold test model
|
Center 5º-16, center 10º-68, 24-2, 30-2, 30º-60º, nasal step
|
|
Upper Threshold test model
|
30º-40 , 30º-76, P-60, 60º-81, 60º-120, 1 90º-135 nasal side
|
|
Special detection strategy
|
Esterman monocular, Esterman binocular, user-customized test;
150º driver monocular fast detection, 150º driver monocular standard detection , upper 36°detection, blind spot detection, 150º horizontal straightness detection |
|
Pupil size test
|
Automatic
|
|
Fixation monitoring
|
Blind spot monitoring, eye position video, motoring
|
|
Environment light detection
|
Automatic
|
|
Analysis software
|
Reliability analysis, single vision report, triple visionreport, GPA half vision analysis,
GPA glaucoma developing analysis, VFI vision index analysis |
|
Operation system
|
Win7 above
|
|
Power
|
100-240V , 50-60Hz
|
|
Dimension
|
570x400720mm
|
|
Weight
|
23kg (44lb)
|
Packing & Delivery
Features:
1.7'' TFT LCD monitor:
2.Bigger better monitor, icon display,menu for easier operation and setting;
3.Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier;
1.7'' TFT LCD monitor:
2.Bigger better monitor, icon display,menu for easier operation and setting;
3.Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier;
