Quick Details
-
Place of Origin:
-
Beijing, China
-
Product name:
-
Three-proof IP Phone
-
Advantages:
-
Factory Low Price
-
Function:
-
Answer the phone,To make a call,Emergency call
-
Application:
-
Tunnel, Oil Gas, Power Plant, Chemical, Oil Gas, Metro, Rail, Highway
-
Power Supply:
-
Telephone Line
-
Color:
-
Blue, other customized colors
-
Feature:
-
waterproof, dustproof, and corrosion-resistant, level of IP54.
-
Material:
-
anti-static ABS plastic
Quick Details
-
Type:
-
VoIP Phone
-
Brand Name:
-
IDM
-
Model Number:
-
IDM MCC200, MCC200
-
Place of Origin:
-
Beijing, China
-
Product name:
-
Three-proof IP Phone
-
Advantages:
-
Factory Low Price
-
Function:
-
Answer the phone,To make a call,Emergency call
-
Application:
-
Tunnel, Oil Gas, Power Plant, Chemical, Oil Gas, Metro, Rail, Highway
-
Power Supply:
-
Telephone Line
-
Color:
-
Blue, other customized colors
-
Feature:
-
waterproof, dustproof, and corrosion-resistant, level of IP54.
-
Material:
-
anti-static ABS plastic
IDM MCC200 tunnel three-defense IP telephone
IDM MCC200 is a waterproof, dustproof, and explosion-proof IP phone that can connect to standard SIP softswitch systems for interoperability. It can also be used in conjunction with dispatch consoles to implement point-to-point calls, broadcast calls,multicast calls, forced disconnection, forced insertion, transfer, monitoring, conferencing, recording, roll call, polling,alarming, and other dispatch operations for individual phones.
With the help of loudspeakers, the sound amplification and broadcasting function can be realized. With the help of broadcast dispatchers, unicast, multicast, broadcast, real-time broadcast, scheduled broadcast, time-triggered broadcast, and hourly time announcement can be realized.
With the help of loudspeakers, the sound amplification and broadcasting function can be realized. With the help of broadcast dispatchers, unicast, multicast, broadcast, real-time broadcast, scheduled broadcast, time-triggered broadcast, and hourly time announcement can be realized.
Product Description
|
Main technical parameters
|
|
|
|
|||
|
(1). Ringing loudness: 80dB
|
|
|
|
|||
|
(2). Signal parameters
|
|
|
|
|||
|
n Supports DTMF dialing and pulse dialing
|
|
|
|
|||
|
n Pulse signaling pulse rate: 10±1 time /s pulse interruption ratio: (1.6±0.2):1
|
|
|
|
|||
Structural characteristics
(1) Three anti-IP telephone shell is made of anti-static ABS plastic, waterproof, dustproof, anti-corrosion, protection level up to IP54.
(2). The three-guard telephone is dual-use for table and hanging, and the newly developed fork spring switch mechanism is adopted.There are no movable parts on the IP phone.
(3) The three-proof IP telephone keyboard is a fully sealed key, and is equipped with emergency call, hang up and redial keys.
(2). The three-guard telephone is dual-use for table and hanging, and the newly developed fork spring switch mechanism is adopted.There are no movable parts on the IP phone.
(3) The three-proof IP telephone keyboard is a fully sealed key, and is equipped with emergency call, hang up and redial keys.
Structural Features
1.The phone shell is made of anti-static ABS plastic, which is waterproof, dustproof, and corrosion-resistant, with a protection level of IP54.
2.The phone is used for both desk and wall mounting, using an electronic spring switch mechanism, with no moving parts on the phone.
3.The keyboard is fully sealed, with emergency call, hang-up, and redial keys in addition to numeric keys.
2.The phone is used for both desk and wall mounting, using an electronic spring switch mechanism, with no moving parts on the phone.
3.The keyboard is fully sealed, with emergency call, hang-up, and redial keys in addition to numeric keys.
Specification
IP phone parameters
The system has strong compatibility and supports standard SIP 2.0 (RFC3261) and related RFC protocols
1.Support the function of one-touch direct call to the dispatcher;
2.Support POE power supply;
3.Full duplex intercom function;
4.Using advanced echo cancellation technology;
5.The sensitivity of the loudspeaker and microphone can be adjusted, with a ringing loudness of 80dB;
6.It can select multiple voice encoding methods such as G.729, G.723, G.711, G.722, and G.726;
7.The system provides recording and recording output, and can call and query the recording files at any time;
8.Settings can be made through the WEB interface;
9.Can integrate network surveillance cameras, allowing surveillance images near the telephone to be transmitted to SIP video phones
10.The fiber interface can be customized to replace twisted-pair cables when the transmission distance is long, and can be directly connected to 100M fiber optic transceivers and optical port Ethernet switches.
2.Support POE power supply;
3.Full duplex intercom function;
4.Using advanced echo cancellation technology;
5.The sensitivity of the loudspeaker and microphone can be adjusted, with a ringing loudness of 80dB;
6.It can select multiple voice encoding methods such as G.729, G.723, G.711, G.722, and G.726;
7.The system provides recording and recording output, and can call and query the recording files at any time;
8.Settings can be made through the WEB interface;
9.Can integrate network surveillance cameras, allowing surveillance images near the telephone to be transmitted to SIP video phones
10.The fiber interface can be customized to replace twisted-pair cables when the transmission distance is long, and can be directly connected to 100M fiber optic transceivers and optical port Ethernet switches.
Method of use
1.Answer the phone: When there is a call from an outside line, the phone will ring. Lift the handle from the handle card and the disconnect the phone to start the call. When the call is finished, put the handle back on the handle card and the phone will hang up.
2.To make a call, lift the handle up from the phone and then hang up to dial. When you hear the ringtone, wait for the other person to answer. If you want to dial a new number, press the "hang up" button and dial after hearing the dial tone.
After the call is completed, place the handle back on the handle card, and the phone will be hung up.
Note: When making or receiving a call, the handle cannot be placed on the handle card, otherwise the call will automatically hang
up. After the call is completed, the handle must be placed back on the handle card for the next call.
3.Emergency call
(1)When an emergency situation arises, lift the handle from the phone and press the "emergency call" button to directly
communicate with the dispatcher. Generally, users are not allowed to press the "emergency call" button.
(2)Only when the dispatcher has an emergency call function, can the phone realize emergency call. The phone can set the emergency call number according to the dispatcher it is connected to. When the dispatcher receives an emergency call, it can give an audible and visual alarm.
(3)The terminal can also receive emergency calls from the dispatcher, and will sound a special ringtone when receiving an
emergency call.
2.To make a call, lift the handle up from the phone and then hang up to dial. When you hear the ringtone, wait for the other person to answer. If you want to dial a new number, press the "hang up" button and dial after hearing the dial tone.
After the call is completed, place the handle back on the handle card, and the phone will be hung up.
Note: When making or receiving a call, the handle cannot be placed on the handle card, otherwise the call will automatically hang
up. After the call is completed, the handle must be placed back on the handle card for the next call.
3.Emergency call
(1)When an emergency situation arises, lift the handle from the phone and press the "emergency call" button to directly
communicate with the dispatcher. Generally, users are not allowed to press the "emergency call" button.
(2)Only when the dispatcher has an emergency call function, can the phone realize emergency call. The phone can set the emergency call number according to the dispatcher it is connected to. When the dispatcher receives an emergency call, it can give an audible and visual alarm.
(3)The terminal can also receive emergency calls from the dispatcher, and will sound a special ringtone when receiving an
emergency call.
Construction site three-protection loudspeaker broadcast terminal
The broadcasting terminal at the construction site usually adopts SIP addressable communication and can be installed in the Internet environment. For the convenience of use and management, remote control amplifiers and amplification speakers are usually added on the basis of the three proof telephone. This way, according to the different amplification distance requirements, the amplifiers and speakers can be replaced, and the addressing management remains unchanged.
IDM MCC200A is equipped with a 5W speaker by default, and the speaker operation works at any time. If you need to configure a high-power loudspeaker, you need to remotely turn on the amplifier before starting the broadcast. The Internet can be accessed through optical fiber, WIFI, 4G/5G. The terminal has echo cancellation and noise suppression functions, ensuring high-definition broadcasting at construction sites; Equipped with functions such as timed bell ringing, timed playback, and zone calling to improve the efficiency of construction site management; It can be used to play background music as needed, creating a comfortable resting atmosphere and safeguarding the safety of the construction site.

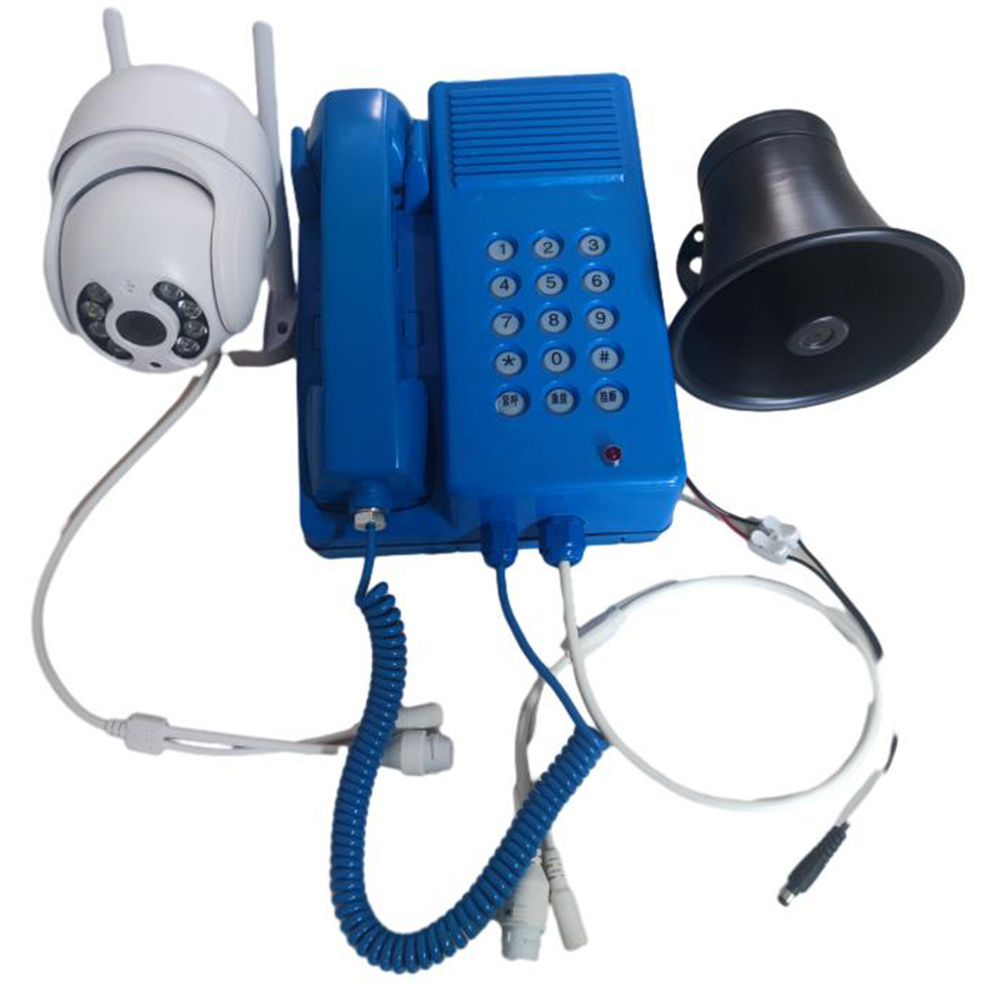

The IDM MCC200A site addressable three-proofing telephone, radio, and monitoring information fusion all-in-one machine can be connected to the SIP softswitch system, allowing real-time intercom or group broadcast through video telephones or mobile phone apps, and allowing the user to view images from nearby cameras on the terminal.
With the broadcast server, cloud broadcasting can achieve the following functions:
Scheduled broadcast: Play audio files or broadcast files at a preset time.
Regional broadcasting: The dispatching console groups terminals in any broadcasting area, and each group can independently play different audio sources.
Broadcast paging: Broadcast calling for various information in the whole region, multiple regions, and single region.
Terminal broadcast and shouting: All SIP terminals (SIP phones or softphones) can shout and broadcast according to their
permissions by calling the number of the broadcast gateway or the number of the broadcast group.
Two-way intercom/emergency intercom: By pressing the button on the broadcast dispatcher console, you can directly initiate a two-way intercom with a designated duty extension, which will automatically answer hands-free.
Help intercom: When an emergency situation arises, the terminal equipment or intercom extension at each help point can be used to call the monitoring center with one-click two-way intercom with customer service personnel.
Emergency Broadcast/Alarm Triggering: When a fire or illegal intrusion occurs in a specific area, the sensor on the broadcast gateway is used to automatically trigger the designated area to send emergency broadcast or alarm signals.
Hourly reporting function: The hourly reporting function can be set for some broadcast terminals, and it can be voice broadcast or music reminder.
With the broadcast server, cloud broadcasting can achieve the following functions:
Scheduled broadcast: Play audio files or broadcast files at a preset time.
Regional broadcasting: The dispatching console groups terminals in any broadcasting area, and each group can independently play different audio sources.
Broadcast paging: Broadcast calling for various information in the whole region, multiple regions, and single region.
Terminal broadcast and shouting: All SIP terminals (SIP phones or softphones) can shout and broadcast according to their
permissions by calling the number of the broadcast gateway or the number of the broadcast group.
Two-way intercom/emergency intercom: By pressing the button on the broadcast dispatcher console, you can directly initiate a two-way intercom with a designated duty extension, which will automatically answer hands-free.
Help intercom: When an emergency situation arises, the terminal equipment or intercom extension at each help point can be used to call the monitoring center with one-click two-way intercom with customer service personnel.
Emergency Broadcast/Alarm Triggering: When a fire or illegal intrusion occurs in a specific area, the sensor on the broadcast gateway is used to automatically trigger the designated area to send emergency broadcast or alarm signals.
Hourly reporting function: The hourly reporting function can be set for some broadcast terminals, and it can be voice broadcast or music reminder.
Application:
Usage method：
.
(1) Answering the phone When an external call comes in, the telephone rings. Lift the handle from the handle card and pick up the phone to talk. When the call is over, put the handle back on the handle card and the phone will hang up.
(2). Make a call Lift the handle from the phone, pick up the phone, and dial the number when you hear the dial tone. Wait for the caller to answer the ring back tone. If you hear a busy tone, press the redial button to redial the last number. If you want to dial a new number, press the "Hang Up" key and dial after hearing the dial tone.
When the call is over, put the handle back on the handle card and the phone will hang up.
Note: Do not place the handle on the handle card when talking or asking someone to answer the phone, otherwise the phone will automatically hang up. When the call is over, you must put the handle back on the handle card for the next call.
(2). Make a call Lift the handle from the phone, pick up the phone, and dial the number when you hear the dial tone. Wait for the caller to answer the ring back tone. If you hear a busy tone, press the redial button to redial the last number. If you want to dial a new number, press the "Hang Up" key and dial after hearing the dial tone.
When the call is over, put the handle back on the handle card and the phone will hang up.
Note: Do not place the handle on the handle card when talking or asking someone to answer the phone, otherwise the phone will automatically hang up. When the call is over, you must put the handle back on the handle card for the next call.
Emergency call ：
n When an emergency occurs, lift the handle from the phone and press the Tight Call key. The user can talk to the dispatcher directly. In general, the user must not press the "tight call" key.
n Emergency calls can be made only when the dispatcher has the emergency call function. The phone can receive emergency call frequency signals based on the frequency that the dispatcher can receive. Set an emergency call signal frequency in the range 0-9 and A-D.
n Emergency calls can be made only when the dispatcher has the emergency call function. The phone can receive emergency call frequency signals based on the frequency that the dispatcher can receive. Set an emergency call signal frequency in the range 0-9 and A-D.
Care and maintenance ：
(1) Work strictly according to the conditions of use to avoid strong vibration and impact of the telephone.
(2). The three-proof telephone should be regularly repaired in the well, focusing on the maintenance of tight call, signaling,
communication and bell collection;
(3) Three telephone with emergency call function, close call number B (frequency combination: 770Hz, 1633Hz);
(4). SIP telephone has redial and hang up functions.
(2). The three-proof telephone should be regularly repaired in the well, focusing on the maintenance of tight call, signaling,
communication and bell collection;
(3) Three telephone with emergency call function, close call number B (frequency combination: 770Hz, 1633Hz);
(4). SIP telephone has redial and hang up functions.
