Quick Details
-
Warranty of core components:
-
12 months
-
Voltage:
-
380v,or as your request, 220v/380v/440v Optional
-
Power:
-
25-60kw
-
Dimension(L*W*H):
-
3600*2100*2200mm
-
Weight (KG):
-
2800
-
Name:
-
sawdust wood powder flour mill grinding grinder making machine
-
Raw material:
-
Sawdust Biomass Agriculture
-
Application:
-
wood sawdust flour machine
-
Weight:
-
2.0T
-
Other name:
-
wood powder mill machine
-
Capacity:
-
100-450kg/h
-
Output size:
-
60-120mesh
-
max Feeding Size:
-
10mmm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhongxiang
-
Marketing Type:
-
hot sale
-
Warranty of core components:
-
12 months
-
Voltage:
-
380v,or as your request, 220v/380v/440v Optional
-
Power:
-
25-60kw
-
Dimension(L*W*H):
-
3600*2100*2200mm
-
Weight (KG):
-
2800
-
Name:
-
sawdust wood powder flour mill grinding grinder making machine
-
Raw material:
-
Sawdust Biomass Agriculture
-
Application:
-
wood sawdust flour machine
-
Weight:
-
2.0T
-
Other name:
-
wood powder mill machine
-
Capacity:
-
100-450kg/h
-
Output size:
-
60-120mesh
-
max Feeding Size:
-
10mmm

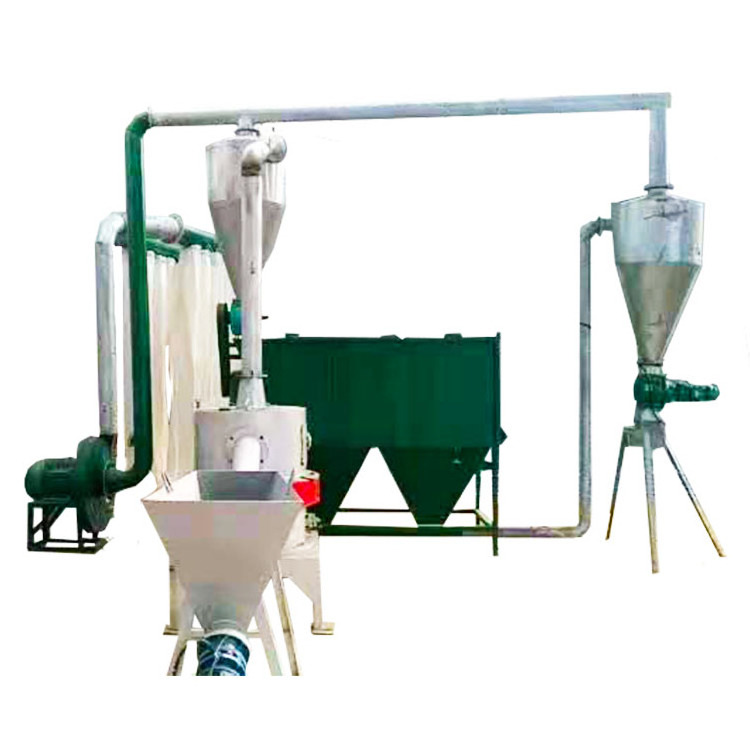

Zhongxiang Herb sawdust wood powder flour mill grinding grinder making machine
Zhongxiang Herb sawdust wood powder flour mill grinding grinder making machine is an energy-saving and high efficient grinder, which is developed on innovation of grinding principle that traditional grinders have adopted at home and abroad.Wood powder making machine is applicable for hundreds of difficult grinding like wood powder, sawdust, bamboo powder, rice husk, wheat bran, herbs, bark, eaves, corn cob, straw, shrimp, seaweed, dehydrated vegetables, spices, paper, circuit boards, plastics, chemical raw materials, graphite, activated carbon, cellulose, tea, hair, plant root, stem, leaf, flower, fruit, and all kinds of edible fungus. It’s the ideal grinder in chemicals, building materials, medicine, health, breeding, food, mosquito coils and others.
Advantage of
Zhongxiang Herb sawdust wood powder flour mill grinding grinder making machine
:
1. advanced Grinding and smashed equipment developed by our factory.
2. full and effective grinding, high output, low energy consumption, high efficiency
3. low noise and no pollution
4.easy to operate and maintain.
We have two kinds of wood powder machine:
We have two kinds of Zhongxiang Herb sawdust wood powder flour mill grinding grinder making machine :
1. Horizontal type Zhongxiang Herb sawdust wood powder flour mill grinding grinder making machine
Inner instructure of
Horizontal type
wood powder machine
:
2.New type vertical wood powder machine:
Inner instructure of New type vertical wood powder machine :
|
Model |
500 |
700 |
800 |
900 |
1000 |
1200 |
|
Fineness(microns) |
20-180 |
40-200 |
40-230 |
40-325 |
40-325 |
40-325 |
|
Actual capacity(kg/h) for making 100mesh powder |
60 |
100-120 |
150-200 |
250-300 |
400-450 |
500-550 |
|
Host rotate speed(r/min) |
2900 |
2970 |
3420 |
3420 |
2970 |
3200 |
|
Host power(kw) |
22 |
30 |
30 |
30-37 |
55 |
75 |
|
Fan power(kw) |
3 |
4 |
4 |
4 |
4 |
5 |
|
Whole weight(kg) |
1500 |
2600 |
4200 |
4600 |
5200 |
5800 |
production main part of wood powder making machine:
