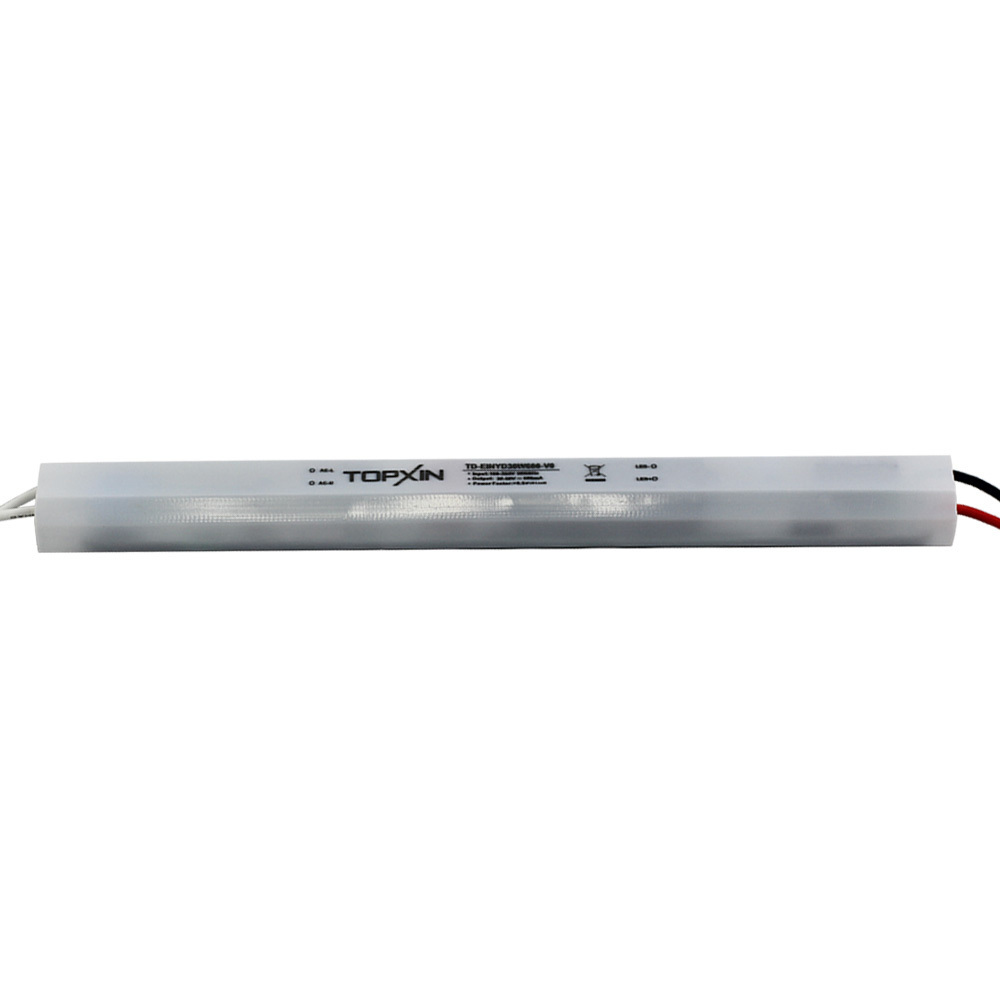

Tube Constant Current Drivers
●International Full Range AC Input
●Isolation design ,Constant current design
●Short circuit /Overload/Over voltage /Over-temperature Protection
●High PF, High Efficiency ,Low THD
●Slim Linear Design
●Suitable for LED tube ,Diretct light panel light ,DIY fixtures
●High performance cost ratio ,CE certified ,3-5 years Warranty
Housing properties
● Casing: polycarbonate, white
● Type of protection IP20
Interfaces
● Terminal blocks: 45° push terminals
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
TD-303
-
Output Frequency:
-
47-63Hz
-
Certification:
-
CE
-
Warranty:
-
3/5 Years
-
Efficiency:
-
88%
-
PF:
-
PF>0.95
-
Delivery:
-
15-25 Days
-
Protections:
-
OPP OVP SCP OCP
-
Product Name:
-
High PF Constant Current Tube Drivers/LED Tubes Panel light
Quick Details
-
Warranty(Year):
-
3-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Topxin
-
Model Number:
-
TD-303
-
Output Frequency:
-
47-63Hz
-
Certification:
-
CE
-
Warranty:
-
3/5 Years
-
Efficiency:
-
88%
-
PF:
-
PF>0.95
-
Delivery:
-
15-25 Days
-
Protections:
-
OPP OVP SCP OCP
-
Product Name:
-
High PF Constant Current Tube Drivers/LED Tubes Panel light
Model Specification
|
MODEL NAME
|
TD-T303
|
|
|
|
|||
|
INPUT
|
VOLTAGE RANGE Note.4
|
|
100-264V
|
|
|||
|
|
FREQUENCY RANGE
|
|
47-63HZ
|
|
|||
|
|
EFFICIENCY (Typ.)
|
|
90%
|
|
|||
|
|
AC CURRENT (Typ.)
|
|
100-264V
|
|
|||
|
|
PF (Typ.) at FullLoad
|
|
90%
|
|
|||
|
|
THD (Typ.) at FullLoad
|
|
/
|
|
|||
|
|
INRUSH CURRENT(max.)
|
|
COLD START:20A/265V
|
|
|||
|
|
LEAKAGE CURRENT
|
|
<0.75MA/240VAC
|
|
|||
|
OUTPUT
|
RATED CURRENT
|
|
300MA
|
|
|||
|
|
DC VOLTAGE RANGE
|
|
45-105V
|
|
|||
|
|
RATED POWER
|
|
25-35W
|
|
|||
|
|
RIPPLE & NOISE (max.) Note.2
|
|
2VAC
|
|
|||
|
|
VOLTAGE TOLERANCE Note.3
|
|
±4.0%
|
|
|||
|
|
CURRENT ACCURACY
|
|
±3.0%
|
|
|||
|
|
LINE REGULATION
|
|
±3.0%
|
|
|||
|
|
LOAD REGULATION
|
|
±3.0%
|
|
|||
|
|
SETUP, RISE TIME Note.6 ( Full Load)
|
|
1000ms,80ms/110VAC(at full load) 1200ms,80ms/220VAC
|
|
|||
|
|
HOLD UP TIME (Typ.) Full Load
|
|
16ms/230VAC 16ms/115VAC (at full load)
|
|
|||
|
PROTECTION
|
OVER VOLTAGE
|
|
120V
|
|
|||
|
|
OVER TEMP
|
|
/
|
|
|||
|
|
OVER CURRENT
|
|
/
|
|
|||
|
|
SHORT PROTECT
|
|
/
|
|
|||
|
|
OVER LOAD
|
|
/
|
|
|||
|
|
NO-LOAD
|
|
/
|
|
|||
|
ENVIRONMENT
|
WORKING TEMP
|
|
-20～+65℃
|
|
|||
|
|
STORAGE TEMP HUMIDITY
|
|
-30～+80℃, 10~95%RH
|
|
|||
|
|
TEMP COEFFICIENT
|
|
±0.03%/℃(0～50℃)
|
|
|||
|
|
WORKING HUMIDITY
|
|
10～90%RH non-condensing
|
|
|||
|
|
VIBRATION
|
|
10～500HZ,5G 12min/1cycle,period for 72min.each along X,Y,Z axes
|
|
|||
|
OTHERS
|
MTBF
|
|
≥438.Khrs, MIL-HDBK-217F(25℃)
|
|
|||
|
|
DIMENSION
|
|
270*19*11(L*W*H)
|
|
|||
|
|
WEIGHT
|
|
72g/pcs
|
|
|||
Series Information
|
Model
|
Power
|
Vin
|
Vout
|
η
|
PF
|
Flicker
|
CV/CC
|
IP
|
|
TD-T257
|
30W
|
AC100-264V
|
23-40V600mA
|
89%
|
0.9
|
/
|
CC
|
20
|
|
TD-303
|
30W
|
AC100-264V
|
45-105V300mA
|
90%
|
0.9
|
/
|
CC
|
20
|
|
TD-103
|
12W
|
AC100-264V
|
30-40V300mA
|
90%
|
0.9
|
/
|
CC
|
20
|
|
TD-EINYD10W240-V0
|
10W
|
AC100-277V
|
27-42V240mA
|
90%
|
0.9
|
/
|
CC
|
20
|
|
TD-EINYD20W480-V0
|
20W
|
AC100-277V
|
27-42V480mA
|
90%
|
0.95
|
/
|
CC
|
20
|
|
TD-EINYD30W700-V0
|
30W
|
AC100-277V
|
27-42V700mA
|
90%
|
0.95
|
/
|
CC
|
20
|
|
TD-EINYD36W700-V0
|
36W
|
AC100-277V
|
27-54V700mA
|
90%
|
0.95
|
/
|
CC
|
20
|
|
TD-T205W
|
20W
|
AC100-264V
|
27-42V480mA
|
90%
|
0.9
|
NO
|
CC
|
20
|
|
TD-T257W
|
30W
|
AC100-264V
|
27-42V600mA
|
90%
|
0.9
|
NO
|
CC
|
20
|
|
TD-TINFA10W250-V0
|
10W
|
AC100-277V
|
27-40V250mA
|
90%
|
0.9
|
NO
|
CC
|
20
|
|
TD-TINFA20W450-V0
|
20W
|
AC100-277V
|
27-42V450mA
|
90%
|
0.9
|
NO
|
CC
|
20
|
|
TD-OINYD12W300-V0
|
12W
|
AC100-277V
|
24-40V300mA
|
90%
|
0.9
|
/
|
CC
|
20
|
|
TD-OINYD24W480-V0
|
24W
|
AC100-277V
|
24-48V480mA
|
90%
|
0.9
|
/
|
CC
|
20
|
|
TD-OINYD30W700-V0
|
30W
|
AC100-277V
|
24-42V700mA
|
90%
|
0.95
|
/
|
CC
|
20
|
|
TD-T450
|
45W
|
AC180-264V
|
24-32V1400mA
|
90%
|
0.95
|
/
|
CC
|
20
|
|
CVH-45H-24V-T01
|
45W
|
AC180-264V
|
24V-0~2000mA
|
90%
|
0.9
|
/
|
CV
|
20
|
|
CVH-55H-24V-T01
|
55W
|
AC180-264V
|
24V-0~2300mA
|
90%
|
0.9
|
/
|
CV
|
20
|
|
TD-T60W
|
60W
|
AC100-264V
|
24-42V1400mA
|
90%
|
0.9
|
/
|
CC
|
20
|
|
TD-T45W
|
45W
|
AC100-264V
|
24-42V1050mA
|
90%
|
0.9
|
/
|
CC
|
20
|
