Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2900*900*2070mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.2m3
-
Marketing Type:
-
New Product 2024
-
Operating weight:
-
400kg
-
Working Hours:
-
4h
-
Lifting height:
-
2100mm
-
Rated load:
-
1000kg
-
tyre:
-
6.00-12
-
Dumping height(mm) (at 45°):
-
1350mm
-
Dumping Reach(mm):
-
450mm
-
Lifting Height:
-
2100mm
-
Battery Model No.:
-
6-EVF-120A
-
rated capacity(3hr):
-
100Ah
Quick Details
-
Engine Brand:
-
EVERUN
-
Power:
-
1200W
-
Brand Name:
-
Everun
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2900*900*2070mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.2m3
-
Marketing Type:
-
New Product 2024
-
Operating weight:
-
400kg
-
Working Hours:
-
4h
-
Lifting height:
-
2100mm
-
Rated load:
-
1000kg
-
tyre:
-
6.00-12
-
Dumping height(mm) (at 45°):
-
1350mm
-
Dumping Reach(mm):
-
450mm
-
Lifting Height:
-
2100mm
-
Battery Model No.:
-
6-EVF-120A
-
rated capacity(3hr):
-
100Ah

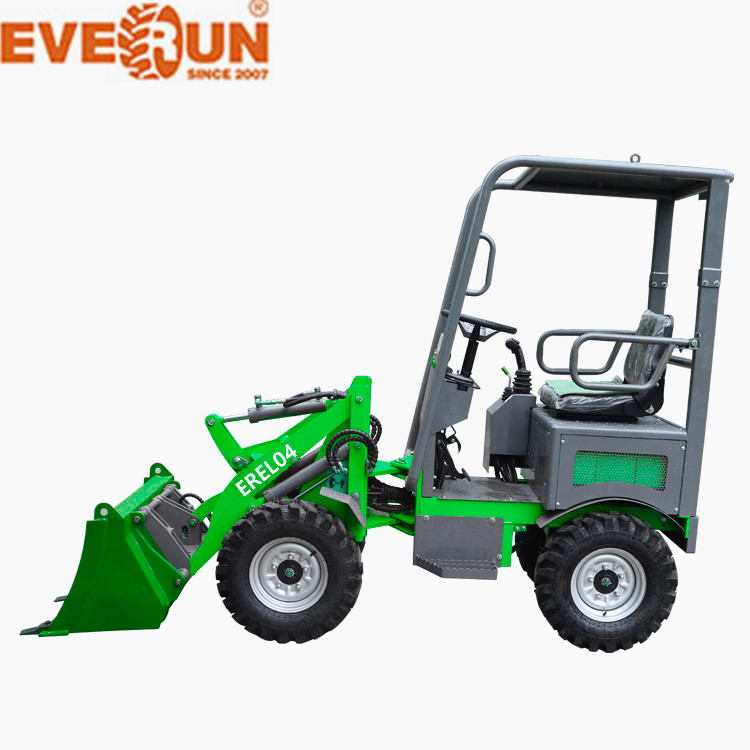

Everun customizable EREL04 0.4t Machine Imported Engine front end bucket compact electric mini wheel loader
Product Description
Specification
|
1.0 Performance
|
|
|
|
|||
|
(1) Rated Load（t)
|
|
0.4
|
|
|||
|
(2) Bucket rated capacity（m)³
|
|
0.2
|
|
|||
|
(3) Dumping height（mm)（at 45°）
|
|
1350
|
|
|||
|
(4) Lifting Height（mm)
|
|
2100
|
|
|||
|
（5）Dumping Reach（mm)
|
|
450
|
|
|||
|
（6）Max. Lifting weight（kg）
|
|
500
|
|
|||
|
（7）Max. Excavation Force（kn)
|
|
8
|
|
|||
|
（8）Max. Grade ability
|
|
15
|
|
|||
|
（9）Max. Turning Angel
|
|
28°±1
|
|
|||
|
（10）Swing degree of the rear axle
|
|
3
|
|
|||
|
2.0 Dimensions. &.Weight
|
|
|
|
|||
|
(1) Overall length（Bucket on Ground position）mm
|
|
2900
|
|
|||
|
(2) Bucket width（overall width）
|
|
900
|
|
|||
|
(3) Overall Height(mm)
|
|
2070
|
|
|||
|
(4) Wheel base(mm)
|
|
1387
|
|
|||
|
(5) Min Ground Clearance(mm)
|
|
300
|
|
|||
|
(7) Net Weight（kg)
|
|
1000
|
|
|||
|
3.0 Battery
|
|
|
|
|||
|
(1) Battery Model No.
|
|
6-EVF-120A
|
|
|||
|
(2) rated capacity（3hr)
|
|
100Ah
|
|
|||
|
(3) No.of battery groups
|
|
5
|
|
|||
|
(4) Rated Voltage
|
|
60v
|
|
|||
|
(5)Working hours（h）
|
|
4
|
|
|||
|
4.0 BRAKE SYSTEM
|
|
|
|
|||
|
(1) SERVICE BRAKE
|
|
Drum Brake
|
|
|||
|
5.0 TYRE
|
|
6.00-12
|
|
|||
