Quick Details
-
Dimension(L*W*H):
-
800*800*2700
-
Weight:
-
500 KG
-
Drilling Depth:
-
150
-
Name:
-
water well drilling rig/machine/water drilling portable in China
-
Function:
-
water well drilling rig
-
Drilling depth:
-
100m
-
Feature:
-
High Efficiency
-
Drilling diameter:
-
350mm
-
Engine:
-
Electric Engine
-
Hosting height:
-
1000kg
-
Drilling method:
-
Percussive and rotating type
-
Rod change method:
-
Full automatic screw thread
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
QUATE
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
800*800*2700
-
Weight:
-
500 KG
-
Drilling Depth:
-
150
-
Name:
-
water well drilling rig/machine/water drilling portable in China
-
Function:
-
water well drilling rig
-
Drilling depth:
-
100m
-
Feature:
-
High Efficiency
-
Drilling diameter:
-
350mm
-
Engine:
-
Electric Engine
-
Hosting height:
-
1000kg
-
Drilling method:
-
Percussive and rotating type
-
Rod change method:
-
Full automatic screw thread
Hydraulic borehole water well drilling rig/machine/water drilling portable in China
Introduction of Hydraulic borehole water well drilling rig/machine/water drilling portable in China
This machine is especially suitable for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is consist of 40-200mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 100 meter.
The advantage of Hydraulic borehole water well drilling rig/machine/water drilling portable in China
1.
Light weight, energy saving.
2. Patented product, unique design and simple drilling structure.
3. Easy to transport and can learn how to handle the machine in short time.
4. Drill bit is very strong and durable ,Can drill through hard stratum, unless thick rock layer .
5. One person operation, reduce the labor intensity .
6. Assure easily operation and long life service life, free maintainance.
7. Stably and reliable,never have troubles when you use it.
Parameter of Hydraulic borehole water well drilling rig/machine/water drilling portable in China
| Model of drilling machine |
MD28 |
| Drilling machine overall dimension(mm) |
800*800*2700 |
| Weight of Drilling machine (kg) |
120 |
| Drill rod diameter (mm) |
Ø 42 |
| Drill rod length(mm) |
1500 |
| Rod change method |
Full automatic screw thread |
| Drilling depth(m) |
80 |
| Voltage (V) |
220V |
| Motor power (KW) |
DC60V, 1.5KW~2KW |
| Drilling method |
Percussive and rotating type |
| Pump power (KW) |
2.2KW |
| Drilling hole diameter(mm) |
Within Ø 120mm |
| Hosting height(mm) |
1000 |
| Hosting capacity (kg) |
500 |

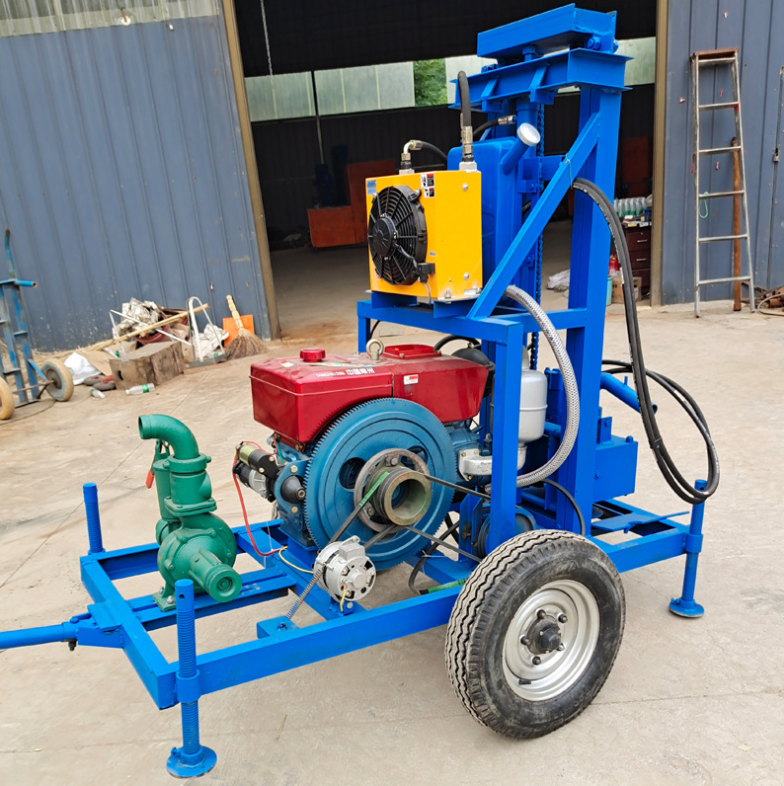

Pictures of water well drilling rigs :
