- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XM
-
Pulse Width:
-
0.1~10ms
-
Wavelength:
-
1070nm
-
Dimensions:
-
55*94*68cm
-
Weight (KG):
-
120 KG
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
Laser power
-
Model:
-

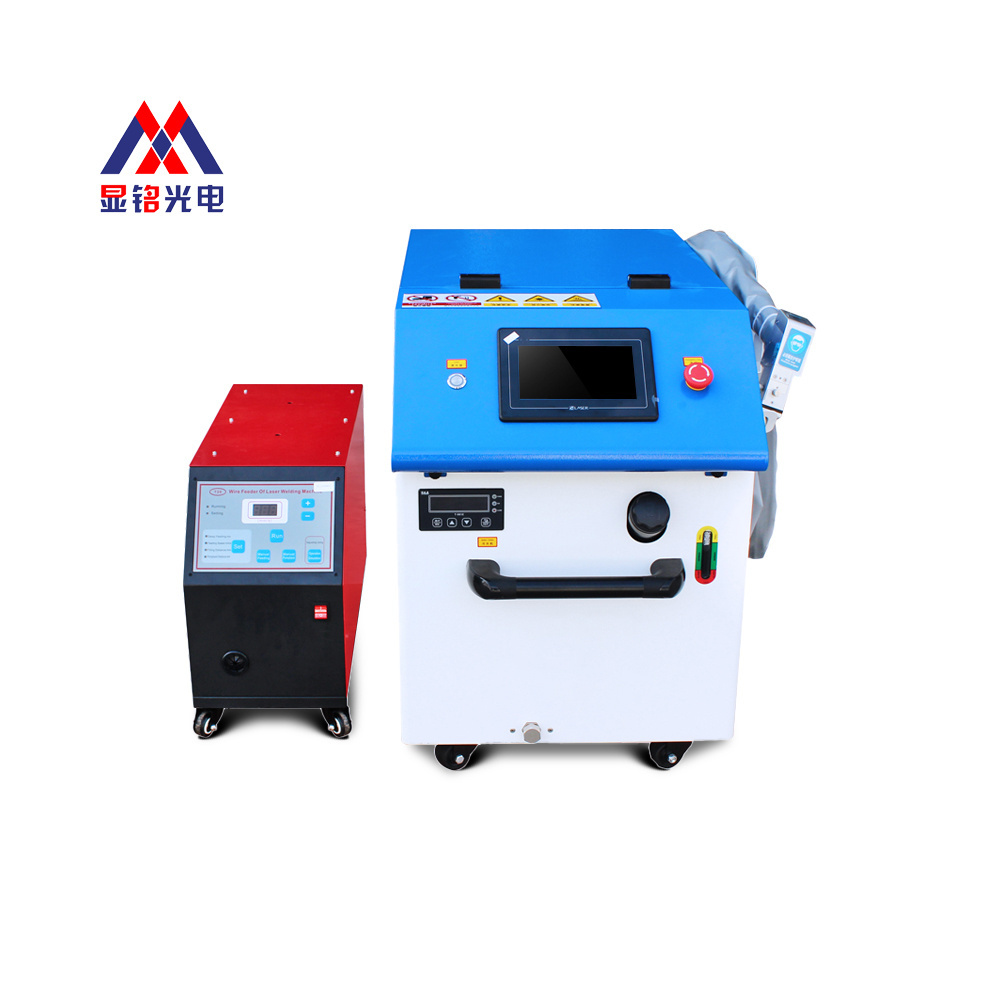

Fiber laser welding machine
-
Laser wavelength:
-
1070nm
-
Laser power:
-
1000W/1500W/2000W
-
Operating mode:
-
Continuo us/pulse
-
Length of fiber-optical:
-
10m(standard)
-
Recommended welding thickness:
-
1000w Stainless steel carbon steel 0-2mm
-
Module life:
-
100000hrs
-
Power supply:
-
220V/380V
-
Cooling method:
-
Water Cooling
-
Laser Energy Stability:
-
<2%
Quick Details
-
Max. Output Power:
-
2000W
-
Usage:
-
Metal Welding
-
Laser Source Brand:
-
MAX/JPT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XM
-
Pulse Width:
-
0.1~10ms
-
Wavelength:
-
1070nm
-
Dimensions:
-
55*94*68cm
-
Weight (KG):
-
120 KG
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
Laser power
-
Model:
-
Fiber laser welding machine
-
Laser wavelength:
-
1070nm
-
Laser power:
-
1000W/1500W/2000W
-
Operating mode:
-
Continuo us/pulse
-
Length of fiber-optical:
-
10m(standard)
-
Recommended welding thickness:
-
1000w Stainless steel carbon steel 0-2mm
-
Module life:
-
100000hrs
-
Power supply:
-
220V/380V
-
Cooling method:
-
Water Cooling
-
Laser Energy Stability:
-
<2%
Product Advantages
DETAILS
PRODUCT DETAILS
Product Acessories
Samples
Product Parameters
|
PARAMETER
|
|
|
|
|
||||
|
Model
|
|
Fiber laser welding machine
|
|
|
||||
|
Laser wavelength
|
|
1070nm
|
|
|
||||
|
Laser power
|
|
1000W/1500W/2000W/3000W
|
|
|
||||
|
Operating mode
|
|
Continuo us/pulse
|
|
|
||||
|
Length of fiber-optical
|
|
10m(standard)
|
|
|
||||
|
Interface of fiber-optical
|
|
QBH
|
|
|
||||
|
Module life
|
|
100000hrs
|
|
|
||||
|
Power supply
|
|
220V/380V
|
|
|
||||
|
Cooling method
|
|
Water Cooling
|
|
|
||||
|
Laser Energy Stability
|
|
<2%
|
|
|
||||
|
Air humidity
|
|
10-90%
|
|
|
||||
|
Recommended welding thickness
|
|
1000W Stainless steel carbon steel 0-2mm
|
|
|
||||
|
Red light position
|
|
Support
|
|
|
||||
|
RECOMMENDED WELDING THICKNESS
|
|
|
|
|
||||
|
1000W
|
|
Stainless steel carbon steel 0-2mm
Galvanized sheet aluminum 0-1.5mm
|
|
|
||||
|
1500W
|
|
Stainless steel carbon steel 0-3mm
Galvanized sheet aluminum 0-2mm
|
|
|
||||
|
2000W
|
|
Stainless steel carbon steel 0-4mm
Galvanized sheet aluminum 0-3mm
|
|
|
||||
|
3000W
|
|
Stainless steel carbon steel 0-6mm
Galvanized sheet aluminum 0-4mm
|
|
|
||||
