Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAKANG
-
Model Number:
-
DK-IP360-5M
-
Type:
-
5mp poe ptz Camera
-
image sensor:
-
1/2.7 SONY IMX335 CMOS sensor
-
effective resolution:
-
5MP (2592*1944)
-
IR distance:
-
30meters
-
Support:
-
ONVIF&p2p
-
Lens:
-
motorized 2.8~12mm
-
Access:
-
mobile phone access
-
Zoom:
-
4x optical Zoom
-
Waterproof:
-
IP66
-
Certification:
-
ce, FCC
Quick Details
-
Special Features:
-
NIGHT VISION, Motion Detection, Vandal-proof, Waterproof / Weatherproof, PAN-TILT
-
Function:
-
PAN-TILT, NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Online technical support, Customized logo
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAKANG
-
Model Number:
-
DK-IP360-5M
-
Type:
-
5mp poe ptz Camera
-
image sensor:
-
1/2.7 SONY IMX335 CMOS sensor
-
effective resolution:
-
5MP (2592*1944)
-
IR distance:
-
30meters
-
Support:
-
ONVIF&p2p
-
Lens:
-
motorized 2.8~12mm
-
Access:
-
mobile phone access
-
Zoom:
-
4x optical Zoom
-
Waterproof:
-
IP66
-
Certification:
-
ce, FCC

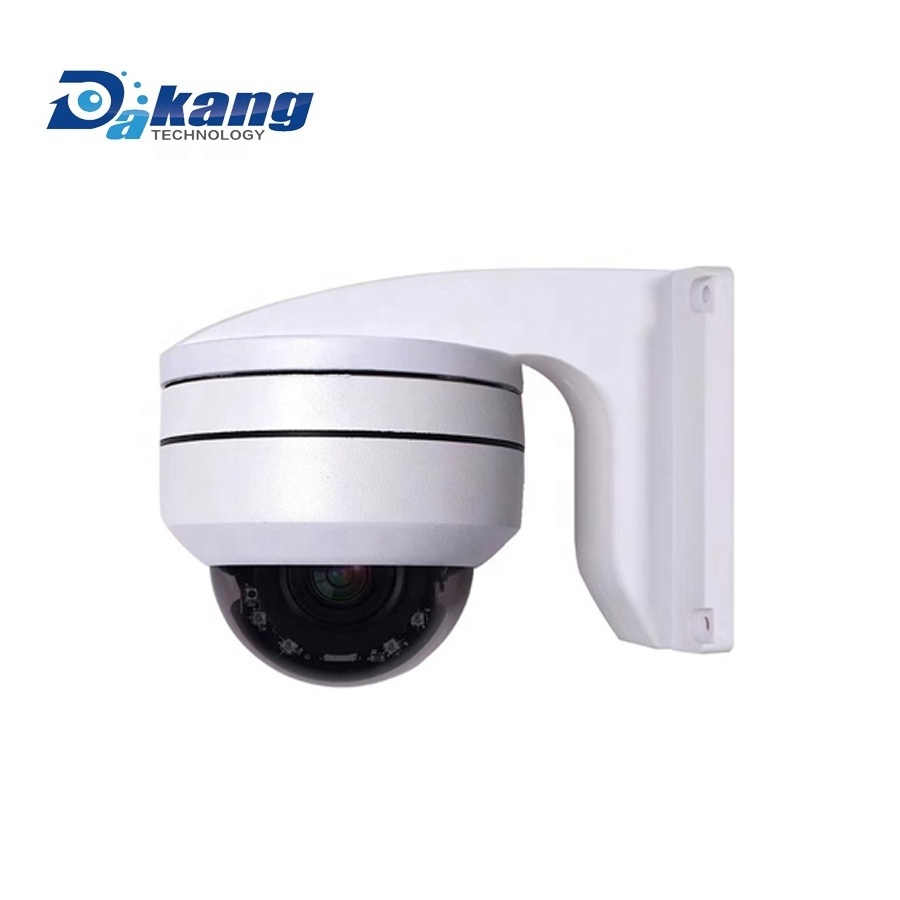

DK-IP360-5M
5MP Mini POE IP PTZ Dome Camera
Key feature:
* 1/2.7 5mp sony335 CMOS Sensor ,h.265/h .264 Video Compression.
* 2.5" Pan-Tilt-Zoom IP Camera.: Pan Range: 0-355 °, Tilt Range 0-90°. Remote Pan/Tilt Functionality with 4x Optical Zoom,
*Night Vision: 4pcs Array leds,30meters IR
* Lens: 2.8-12mm 4X Motorized Zoom Lens.
* Support Onvif 2.4 protocol ,work with Hikvision, dahua, XM NVR . One Key Connection , TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP.
* IP66 waterproof & anti-explosion
* POE Optional
Picture:
Specification:
|
Model |
DK-IP360-5M |
|
Image sensor |
1/2.7 5mp sony335 CMOS |
|
Video compression |
H.265/H.264 |
|
Resolution |
5MP (2592*1944) |
|
Low illumination |
color:0.2LuxF1.2;black-white 0.01LuxF1.2 |
|
Signal / scan system |
PAL/NTSC; Progressive |
|
Electronic shutter |
Auto/manual(1/5——1/50000s) |
|
Day-night mode |
Auto ICR |
|
Optical zoom |
Motorized 2.8 ~12 mm;4 X |
|
Pan angel |
106.6°——51.8° |
|
IR distance |
30M ,4pcs array leds |
|
Pan speed |
Horizontal rotation 355 ° continuous rotation,0°~25°/S |
|
Tilt speed |
0—20°/S |
|
Tilt range |
0°-90° |
|
Proportional zoom |
Support, change the speed based on the zoom |
|
Preset |
16 |
|
Patrol |
1 |
|
Pattern scan |
1 |
|
A.B scan |
Support |
|
Park function |
Support,preset, cruise, pattern scan, two-point line sweep, horizontal automatic |
|
Output bit rate |
32Kbps——16Mbps |
|
Network protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP |
|
ONVIF |
Support |
|
Network interface |
Built-in RJ45 network interface,support 10M/100M IP DATA |
|
Application interface |
Provide Linux,NindoNs SDK develop bag and CGI protocol,can be second fast developed |
|
Browser |
Support IE7,IE8,IE9,Chrome8+,Firefox3.5+,Safari5+ |
|
Power consumption |
DC 12V2A, 10W(max)/POE |
|
Working tem and hum |
-20℃~+60℃,≤90%RH |
|
Protection grade |
TVS3000V lightning protection, surge protection and voltage transient protection, weather proof (for outdoor): IP66 |
