Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingchen
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
variable
-
Weight:
-
55000 kg
-
raw material::
-
wheat straw, baggase, wood chips
-
working speed::
-
90-130m/m
-
output paper weight::
-
15-40g/m2
-
color::
-
optional
-
output paper::
-
napkin tissue, facial tissue, handkerchief and toilet tiss
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
-
Certification::
-
ISO
Quick Details
-
Type:
-
paper production machine
-
Production Capacity:
-
10tons/day
-
Max. workable width:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dingchen
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
variable
-
Weight:
-
55000 kg
-
raw material::
-
wheat straw, baggase, wood chips
-
working speed::
-
90-130m/m
-
output paper weight::
-
15-40g/m2
-
color::
-
optional
-
output paper::
-
napkin tissue, facial tissue, handkerchief and toilet tiss
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
-
Certification::
-
ISO
Products Description

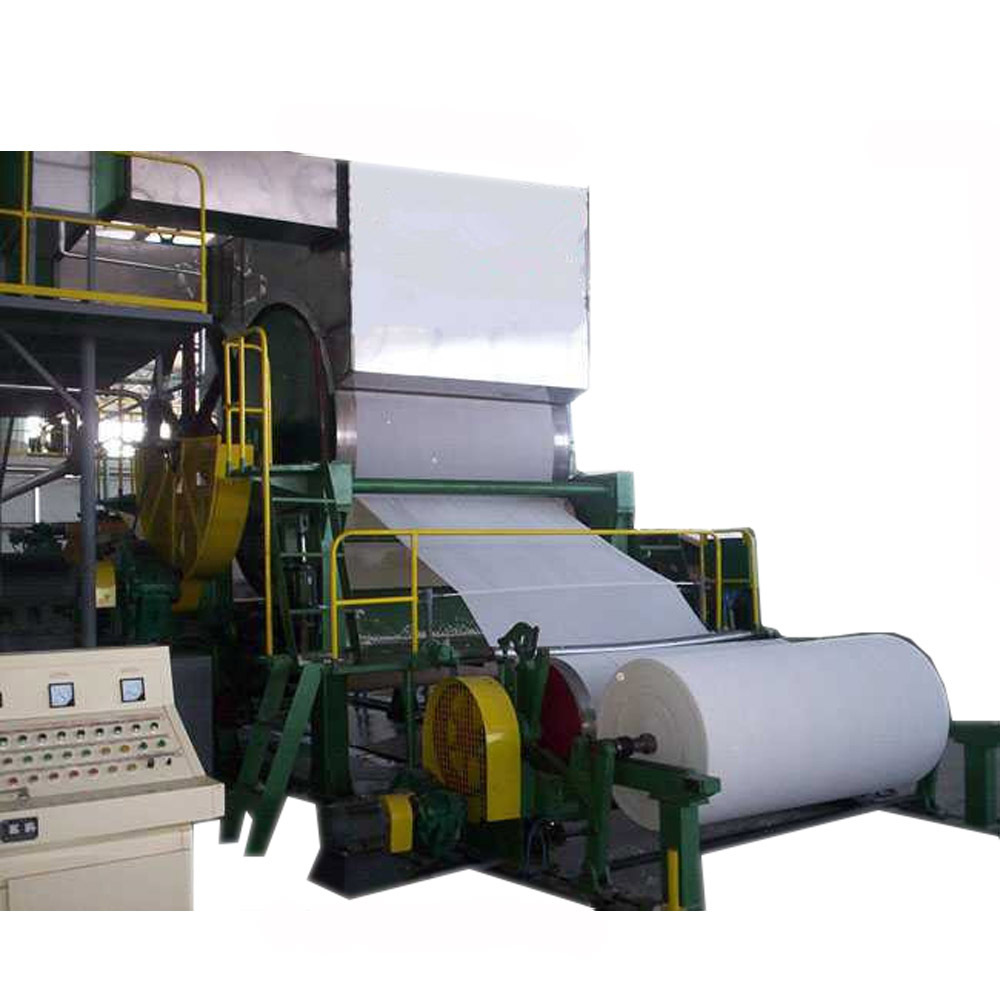

Full automatic 3200mm wheat straw Tissue paper making machine with 10t/d capacity
I. Technical parameter
1. Raw material: wheat straw, wood logs
2. Output paper: tissue paper, toilet paper ( jumbo roll)
3. Output paper weight: 15-40g/m2
4. Capacity: 10 tons/day
5. Output paper width: 3200mm
6. Wire width: 3750mm
7. Working speed: 90-130m/min
8. Designing speed: 180m/min
9. Rail gauge: 4300mm
10. Drive way: Alternating current frequency converter speed control, sectional drive.
II. Main structure for paper making machine
1. Cylinder mold section
Dia.1800mm×3750mm×4300mm stainless-steel cylinder mold 1set. Dia.600mm×3750mm×4300mm couch roll 1 set, coated by rubber, rubber
hardness 38±2SR, cylinder vat 1 set, made from stainless steel plate.
2. Dryer section
Dia.3000mm×3750mm×4300mm alloy dryer cylinder 1 set, double-deck breath exhaust hood, Dia.600mm×3750mm×4300mm touch roll 1 set,
coated by rubber, rubber hardness 90±2SR, pneumatic pressure device, pneumatic scraper blade 2 sets
3. Winding section
3200mm winding machine 1 set
III. Main pulp making equipment list
1. Raw material: wheat straw, wood logs
2. Output paper: tissue paper, toilet paper ( jumbo roll)
3. Output paper weight: 15-40g/m2
4. Capacity: 10 tons/day
5. Output paper width: 3200mm
6. Wire width: 3750mm
7. Working speed: 90-130m/min
8. Designing speed: 180m/min
9. Rail gauge: 4300mm
10. Drive way: Alternating current frequency converter speed control, sectional drive.
II. Main structure for paper making machine
1. Cylinder mold section
Dia.1800mm×3750mm×4300mm stainless-steel cylinder mold 1set. Dia.600mm×3750mm×4300mm couch roll 1 set, coated by rubber, rubber
hardness 38±2SR, cylinder vat 1 set, made from stainless steel plate.
2. Dryer section
Dia.3000mm×3750mm×4300mm alloy dryer cylinder 1 set, double-deck breath exhaust hood, Dia.600mm×3750mm×4300mm touch roll 1 set,
coated by rubber, rubber hardness 90±2SR, pneumatic pressure device, pneumatic scraper blade 2 sets
3. Winding section
3200mm winding machine 1 set
III. Main pulp making equipment list
|
No.
|
Item
|
Qty (set)
|
|
1
|
Cylinder type wheat straw cutter
|
1
|
|
2
|
Conveyer
|
1
|
|
3
|
Pre-soaking machine
|
2
|
|
4
|
25m3 spherical digester
|
2
|
|
5
|
BIVIS extruder
|
1
|
|
6
|
Crude pulp refiner
|
1
|
|
7
|
1.8m2 high frequency vibrating screen
|
1
|
|
8
|
Φ700mm impeller
|
4
|
|
9
|
35m3 bleaching machine
|
2
|
|
10
|
Φ450mm double disc pulp refiner
|
2
|
|
11
|
Low concentration sand remover
|
Full sets
|
|
12
|
0.6m2 pressure screen
|
1
|
|
13
|
Pulp pump
|
6
|
|
14
|
Water pump
|
2
|
