Control Box*1
Transformer*1
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Carin
-
Model Number:
-
L9
-
Product name:
-
Swing Arms Motor Operator L9
-
Power supply:
-
AC 120V~240V 50/60Hz
-
Max single leaf Gate Weight:
-
500kg
-
Material:
-
Aluminum Alloy
-
Protection Class:
-
IP45
-
Certificate:
-
CE Approved
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Villa
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Carin
-
Model Number:
-
L9
-
Product name:
-
Swing Arms Motor Operator L9
-
Power supply:
-
AC 120V~240V 50/60Hz
-
Max single leaf Gate Weight:
-
500kg
-
Material:
-
Aluminum Alloy
-
Protection Class:
-
IP45
-
Certificate:
-
CE Approved
Products Description
L9 FEATURE
L9 is particularly intended for residential applications. The shape is beautiful and graceful and it’s dimensions allow it to be installed in areas where limited space is available.
Details Images

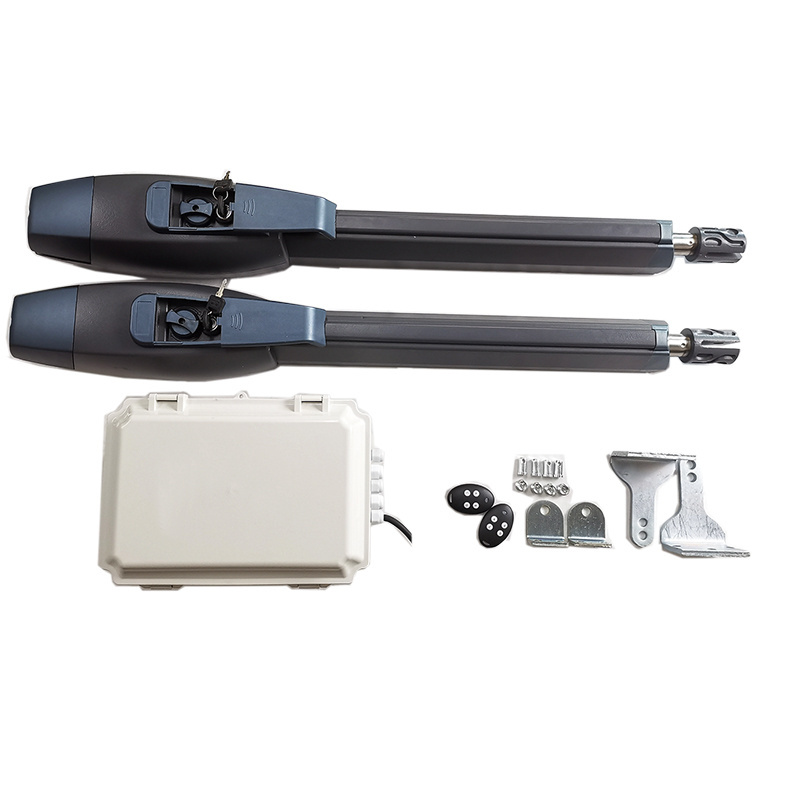

Product accessories
PRODUCT ACCESSORIES
Manufacturing Technique
|
Model
|
L9-DC-400
|
L9-DC-600
|
L9-AC-400
|
L9-AC-600
|
|
Power Supply
|
AC110/220
|
AC110/220
|
AC110/220
|
AC110/220
|
|
Motor
|
24V
|
24V
|
110/220
|
110/220
|
|
Current
|
4A
|
4A
|
2A/1A
|
2A/1A
|
|
Absorbed Power
|
50W
|
50W
|
200W
|
200W
|
|
Max leaf Length
|
2.5M
|
3M
|
3.5M
|
4M
|
|
Max leaf Weight
|
400KGS
|
400KGS
|
500KGS
|
500KGS
|
|
Open Speed
|
1.6CM/S
|
1.6CM/S
|
1.6CM/S
|
1.6CM/S
|
|
Thrust
|
1400N
|
1400N
|
2500N
|
2500N
|
|
Stroke
|
400MM
|
600MM
|
400MM
|
600MM
|
|
Working Temp.
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
-20°C~+70°C
|
|
Duty
|
95%
|
95%
|
40%
|
40%
|
|
Protection Class
|
IP45
|
IP45
|
IP45
|
IP45
|
|
Capacitor
|
---
|
---
|
25uf/8uf
|
25uf/8uf
|
|
Open Angle
|
0~120
|
0~120
|
0~120
|
0~120
|
|
Limit Switch
|
Stopper
|
Stopper
|
Stopper
|
Stopper
|
