Quick Details
-
Brand Name:
-
QIDA
-
Model Number:
-
SY-FSX2
-
Origin:
-
China
-
Resolution:
-
0.1m/s
-
Wind speed:
-
0-30
-
Measurement accuracy:
-
0.1
-
Measurement object:
-
wind speed/wind
-
Power:
-
DC12~24V
Quick Details
-
Warranty:
-
1 years
-
Type:
-

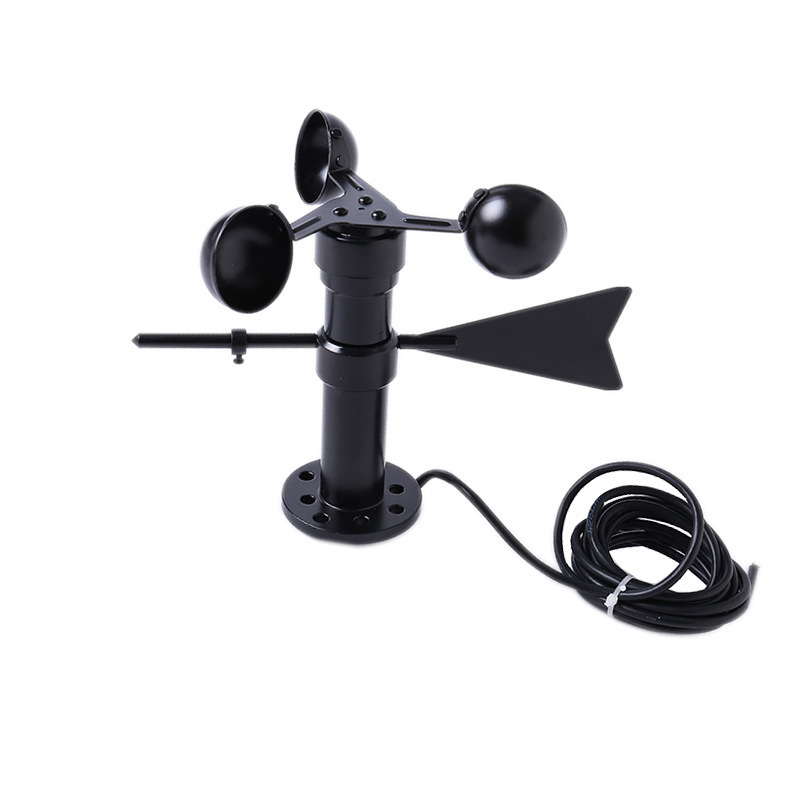

Wind speed and direction integrated sensor
-
Place of Origin:
-
China
-
Brand Name:
-
QIDA
-
Model Number:
-
SY-FSX2
-
Origin:
-
China
-
Resolution:
-
0.1m/s
-
Wind speed:
-
0-30
-
Measurement accuracy:
-
0.1
-
Measurement object:
-
wind speed/wind
-
Power:
-
DC12~24V
Products Description
Our company also sells various types of original sensors, such as pressure sensors, oxygen sensors, wind speed and direction sensors, displacement sensors, photoelectric sensors, angle sensors, human sensors, load cells, temperature sensors etc;
please feel free to contact me
|
Description of wind speed parameters
|
|
|
|
Pulse output type
|
NPN output PNP output
|
|
|
NPN output with internal pull-up（4.7kN）
|
|
|
|
RS485 communication type
|
|
|
|
Voltage output type
|
0-2VDC、0-5VDC、0-10VDC
|
|
|
Current output type
|
4-20mA
|
|
|
Power supply
|
The required voltage source range varies according to the output type
|
|
|
Current output type
|
12~24V
|
|
|
Pulse output type
|
5V or 12V~24V
|
|
|
Voltage output type
|
Output 0-2VDC: 6~24V
|
|
|
Output O-5VDC
|
6~24V
|
|
|
Output 0-10VDC
|
12~24V
|
|
|
Range
|
0-30m/s 0-60m/s
|
|
|
Load capacity
|
500N/2kN
|
|
|
Maximum power consumption (DC24V)
|
Pulse type MAX≤200mW;
|
|
|
|
Voltage type MAX≤300mW
|
|
|
|
Current type MAX≤700mW;
|
|
|
Starting wind
|
0.4-0.8m/s
|
|
|
Weight
|
0.5Kg
|
|
