Quick Details
-
Brand Name:
-
LINO
-
Model Number:
-
LNV-31
-
Material:
-
SS, SS
-
Size:
-
back pressure regulator valve
-
Product Name:
-
adjustable air pressure regulator back pressure regulator valve
-
Max inlet pressure:
-
10000psi
-
Max control pressure:
-
6000psi
-
Safety testing pressure:
-
1.5 times of maximum inlet pressure
-
Medium:
-
Kinds of gas or liquid
-
Default CV value:
-
0.02
-
Weight:
-
About 1.5kg
-
Color:
-
back pressure regulator valve
Quick Details
-
Warranty:
-
2 years
-
Type:
-
Back Pressure Regulators
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
LINO
-
Model Number:
-
LNV-31
-
Material:
-
SS, SS
-
Size:
-
back pressure regulator valve
-
Product Name:
-
adjustable air pressure regulator back pressure regulator valve
-
Max inlet pressure:
-
10000psi
-
Max control pressure:
-
6000psi
-
Safety testing pressure:
-
1.5 times of maximum inlet pressure
-
Medium:
-
Kinds of gas or liquid
-
Default CV value:
-
0.02
-
Weight:
-
About 1.5kg
-
Color:
-
back pressure regulator valve
Product Description

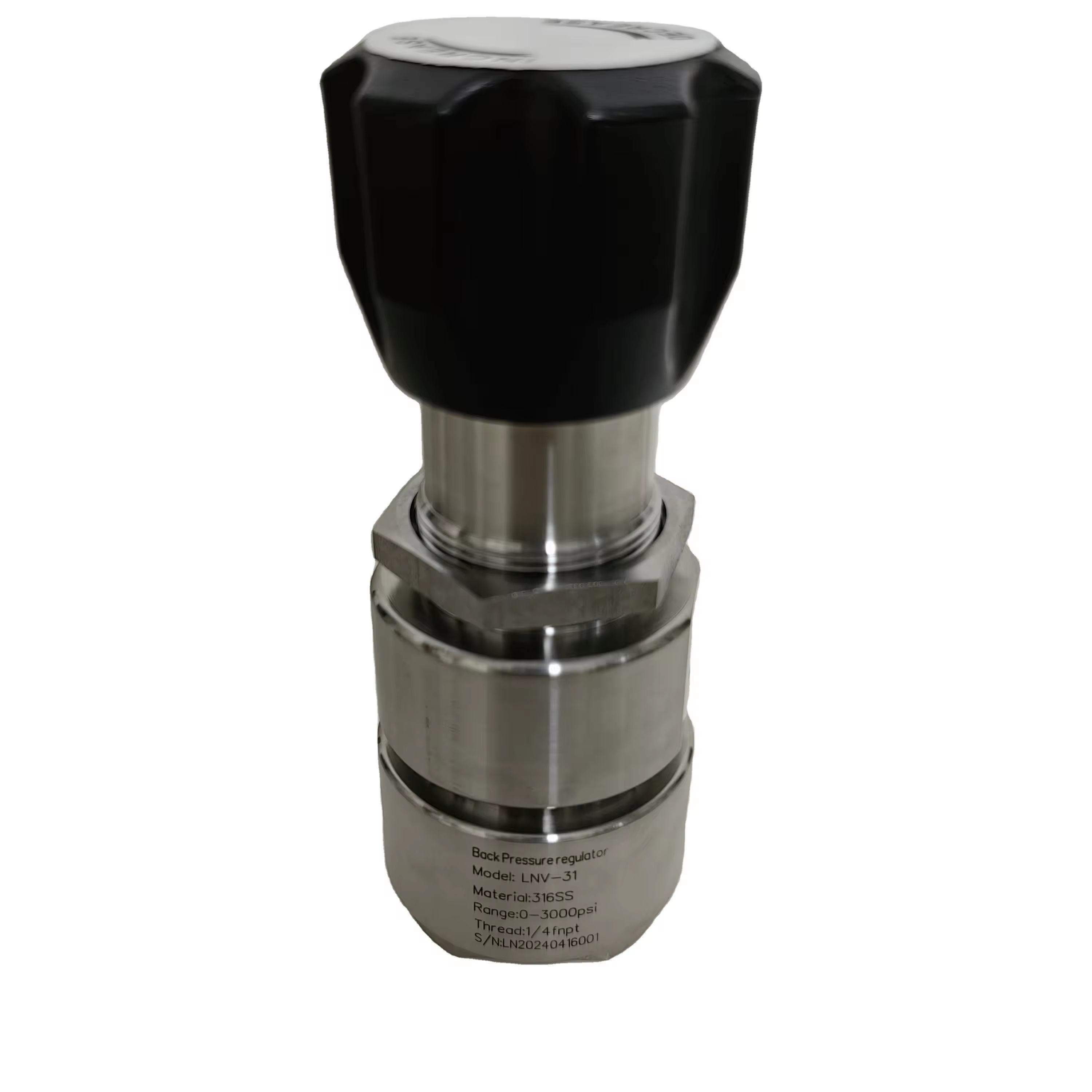

LINO LNV-31 high pressure adjustable air pressure regulator back pressure regulator valve
The back pressure regulator
is an upstream pressure controller that is installed on the vent line of the controlled container or system. It regulates and releases fluid to maintain the required pressure of the container equipment and system and stabilize it at a given value.
It transmits pressure through a stainless steel piston and controls the pressure accurately. It adjusts the upstream pressure and is suitable for pure gases, standard gases, corrosive gases and liquids.
Specification
|
Item
|
LINO LNV-31 high pressure adjustable air pressure regulator back pressure regulator valve
|
|
Warranty
|
2 years
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
LINO
|
|
Model Number
|
LNV-31
|
|
The maximum input pressure
|
10000 psi
|
|
Controlled back pressure
|
0-6000psi
|
|
Safety test pressure
|
1.5 times max inlet pressure
|
|
Applicable temperature
|
-40℉~+165℉(-40℃~+74℃)
|
|
CV value
|
0.02, 0.06, 0.2,1
|
|
Weight
|
About 1.5 kg
|
|
Medium
|
Kinds of gas or liquid
|
|
Material
|
Stainless steel
|
Picture details
Design Features
The piston structure group can achieve a variety of pressure adjustments.
Body thread:1/4-3/4NPT
Can be panel or wall mounted
.
