Quick Details
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3-CCT Switch 3500K 4000K 5000K
-
Product Weight（kg）:
-
2.8
-
Input Voltage(V):
-
100-277V/347V
-
Lamp Luminous Flux(lm):
-
3900-9100LM
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
PN22-50-3CT
-
Product name:
-
Eco Back-Lit Panel Light
-
Certification:
-
ce,RoHS,DLC Premium
-
No LGP:
-
No yellowish worries or other major
-
Advantage:
-
Lower cost,higher cost effective
-
Dimmable:
-
0-10V
-
3Power Switchable:
-
50W/40W/30W;40W/30W/20W
-
Input Voltage:
-
100-277V;100-347V
-
Size:
-
1x2,2x2,2x4
-
5 Years Warranty:
-
Repair and replace for free
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Application:
-
Home Office
-
Lamp Body Material:
-
Aluminum Alloy
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3-CCT Switch 3500K 4000K 5000K
-
Product Weight（kg）:
-
2.8
-
Input Voltage(V):
-
100-277V/347V
-
Lamp Luminous Flux(lm):
-
3900-9100LM
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
100000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
PN22-50-3CT
-
Product name:
-
Eco Back-Lit Panel Light
-
Certification:
-
ce,RoHS,DLC Premium
-
No LGP:
-
No yellowish worries or other major
-
Advantage:
-
Lower cost,higher cost effective
-
Dimmable:
-
0-10V
-
3Power Switchable:
-
50W/40W/30W;40W/30W/20W
-
Input Voltage:
-
100-277V;100-347V
-
Size:
-
1x2,2x2,2x4
-
5 Years Warranty:
-
Repair and replace for free
We have launched a new type design---Power & CCT Tunable Back-lit LED Panel Light Series, From product design, mold development,material selection, automated production,etc, we will strictly control every procedures and present the best quality products for our customers.
Product Description
Specification
|
Product
|

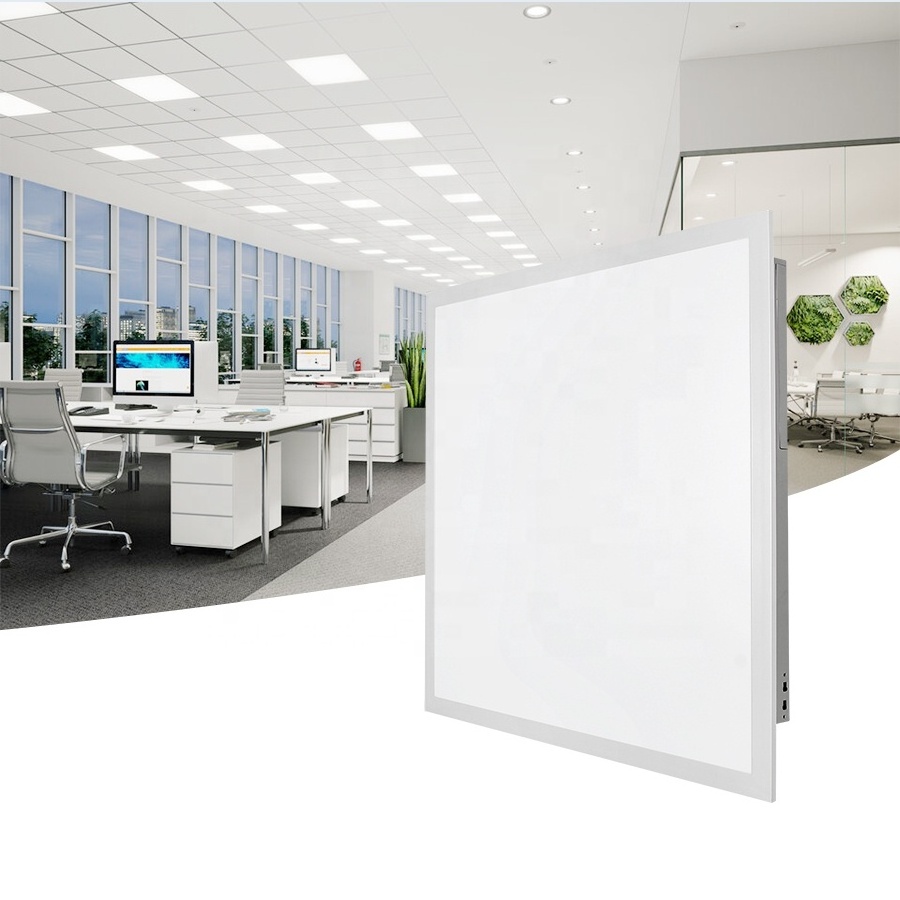

CGT LED Eco Back-Lit Panel Light
|
|
Power
|
40W/30W/20W Switch
50W/40W/30W Switch
70W/60W/50W Switch
|
|
CCT
|
3500K 4000K 5000K
3-CCT Selectable
|
|
Input Voltage
|
100-277Vac/100-347Vac
|
|
Dimmable
|
1-10V dim
|
|
Size
|
2x2,1x4,2x4
|
|
Warranty & Certificated
|
5 years &ETL, DLC5.1 Premiun
|
277V 347V Eco Back-Lit Panel Light
Advantage:
- No LGP, No yellowish worries or other major
- Lower cost,higher cost effective
- High Strength Aluminum Alloy Frame,more stronger
- 0-10Vdimmable isolated Driver, PF>0.9, THD<15%
-LED Source: SMD3030, CRI>80 SDCM<5, L80>100,000H
-Luminous Efficiency up to 130lm/w
-Colour temperature:3500K, 4000K, 5000K
-Certification:ETL DLC5.1 Premium
- 5 Years Warranty, repair and replace for free.
- No LGP, No yellowish worries or other major
- Lower cost,higher cost effective
- High Strength Aluminum Alloy Frame,more stronger
- 0-10Vdimmable isolated Driver, PF>0.9, THD<15%
-LED Source: SMD3030, CRI>80 SDCM<5, L80>100,000H
-Luminous Efficiency up to 130lm/w
-Colour temperature:3500K, 4000K, 5000K
-Certification:ETL DLC5.1 Premium
- 5 Years Warranty, repair and replace for free.
Installation&Application
CGT 3-Power 3-CCT Selectable Ceiling Installation
ETL DLC 5.1 Premium 2x2' 2x4' 30W 40W 50W 3500K 4000K 5000k LED Panel Light
Main Features:
1.The PS diffusion plate with 1.2mm thickness ensures that the whole lamp with no dark area, no deformation, but uniform lighting;
2.15.8MM large angle special TV backlight lens, imported PMMA lamp cover, to maximize the lamp lumens output;
3.Original imported SMD3030 chip, high CRI effect, high brightness, the whole lamp luminous efficiency up to 130lm/w.
3.Original imported SMD3030 chip, high CRI effect, high brightness, the whole lamp luminous efficiency up to 130lm/w.
APPLICATIONS:
Indoor use only, For Factory, Office, Bank, Conference room, Hospital, Shopping mall, Hotel, Warehouse, Subway, School, Basement
passage, Corridor, etc.
Indoor use only, For Factory, Office, Bank, Conference room, Hospital, Shopping mall, Hotel, Warehouse, Subway, School, Basement
passage, Corridor, etc.
