Quick Details
-
Weight:
-
2800
-
Suitable Excavator(ton):
-
20 -30 ton
-
Height:
-
750mm
-
Product name:
-
Hydraulic Scrap Shears
-
Name:
-
Hydraulic Shear Cutter
-
Application:
-
Steel Recycling
-
Type:
-
Hydraulic Multi Shear
-
Colors:
-
Customise
-
Working pressure:
-
24.5mpa
-
Shear force:
-
156 ton
-
Cutting depth:
-
550mm
-
Opening width:
-
740mm
-
Blade length:
-
350+260mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Model Number:
-
YG-280
-
Weight:
-
2800
-
Suitable Excavator(ton):
-
20 -30 ton
-
Height:
-
750mm
-
Product name:
-
Hydraulic Scrap Shears
-
Name:
-
Hydraulic Shear Cutter
-
Application:
-
Steel Recycling
-
Type:
-
Hydraulic Multi Shear
-
Colors:
-
Customise
-
Working pressure:
-
24.5mpa
-
Shear force:
-
156 ton
-
Cutting depth:
-
550mm
-
Opening width:
-
740mm
-
Blade length:
-
350+260mm

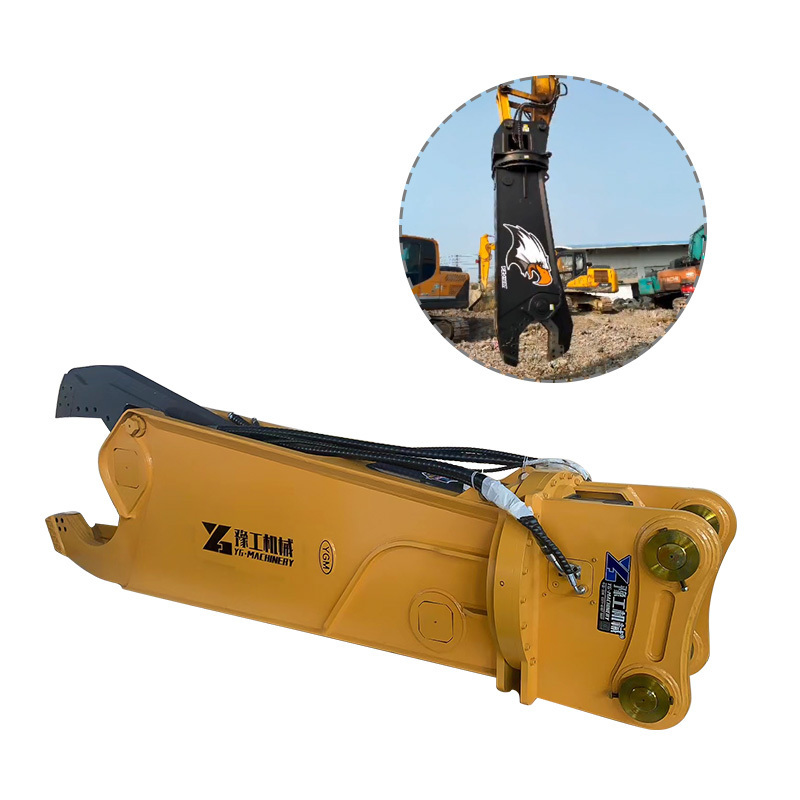

Professional customized products Modern Design Shearing Machine Hydraulic Power Eagle Scrap Shears
Hydraulic eagle shears is mainly used to dismantle chemical plants, steel mills and steel structure workshops. Safe, convenient, and more efficient. When scrap is recycled and decomposed, large pieces of scrap are cut and packaged. One scrap shear can at least reduce 7-9 manual workloads and greatly improve work efficiency while avoiding manual safety concerns; suitable for large and medium-sized scrap recycling stations. Generally, the demolition plant needs to be equipped with an extension arm, and the scrap recycling station uses a standard arm.
Product Features
1) The closed steel plate structure eliminates and reduces any side twisting or bending deformation.
2) The special blade design improves productivity, and it is convenient to replace the blade, which can reduce the downtime of mechanical failure and optimize the productivity.
3) The enlarged hydraulic cylinder greatly strengthens the closing force of the jaws so as to cut the hard steel.
4) It is made of high-grade steel, corrosion-resistant treatment and waterproof design to ensure the strength and wear resistance of the tool.
Technical specification
|
Item |
YG-620 |
YG-1345 |
YG-2164 |
YG-3060 |
|
Weight kg |
540 |
1345 |
2164 |
3060 |
|
Max. Open Size mm |
540 |
650 |
950 |
1100 |
|
Wdith mm |
884 |
1175 |
1360 |
1540 |
|
Height mm |
1419 |
1888 |
2374 |
2480 |
|
Effective Shear Depth mm |
286 |
348 |
486 |
578 |
|
Rotating Way |
360, collision |
360 hydraulic |
|
|
|
Working Pressure Bar |
235 |
300 |
320 |
320 |
|
Bottom Shear Force T |
81.2 |
120.2 |
168.2 |
288.2 |
|
Medium Shear Force T |
44.5 |
66.2 |
78.2 |
125.2 |
|
Tip Shear Force T |
25.2 |
40.2 |
56.2 |
90.2 |
|
Applied Excavator Weight T |
5-9 |
10-19 |
20-25 |
28-35 |
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
