Quick Details
-
high gain:
-
Yes
-
watrproof ability:
-
Good
-
Gain:
-
24-42dB
-
input frequency:
-
2.5-2.7GHz/2.2-2.4Ghz
-
Feedback:
-
All very well
-
Frequency:
-
1838,1926,1998,2030,2033,2065,2278MHz
-
Packing:
-
standard carton for mmds down converter
-
Factory:
-
Anhui bowei electronics technology co.,ltd
Quick Details
-
Place of Origin:
-
Anhui, China
-
color:
-
grey
-
Material:
-
AL
-
high gain:
-
Yes
-
watrproof ability:
-
Good
-
Gain:
-
24-42dB
-
input frequency:
-
2.5-2.7GHz/2.2-2.4Ghz
-
Feedback:
-
All very well
-
Frequency:
-
1838,1926,1998,2030,2033,2065,2278MHz
-
Packing:
-
standard carton for mmds down converter
-
Factory:
-
Anhui bowei electronics technology co.,ltd
MMDS downconverter is receiving Local signal from the DVB-T signal transmitter. The frequency and the gain can be choose by clients' requirement.
specification:
|
Input Frequency |
2100-2300Mhz,2200-2400Mhz,2300-2500Mhz,2500 to 2700MHz |
|
Noise Figure |
2.5dB@24dB , 1.8dB@32dB , 1.4dB@36dB |
|
Image Rejection |
≥50dB |
|
VSWR |
1.5:1 |
|
If Rejection |
≥80dB |
|
PCS Rejection |
≥100dB |
|
WCS Rejection |
≥50dB |
|
3 order intermodulation |
≤-50dB |
|
Conversion Gain |
24dB±1.5dB,32dB±1.5dB,36dB±1.5dB |
|
L.O. Leakage Antenna Port |
≤-85dBm |
|
L.O. Leakage IF-Port |
≤-50dBm |
|
L.O. Phase Noise |
-80dBc@100Hz offset -92dBc@1kHz offset -93dBc@10kHz offset -95dBc@100kHz offset -120dBc@1MHz offset |
|
Output P1dB |
+14dBm(typical) |
|
Gain Flatness Over Entire Range |
≤±1.5dB |
|
Gain Flatness |
≤0.2dB/CHANNEL |
|
IF Output Impedance |
75ohms |
|
DC Current Consumption |
14v-24v |
|
DC Input voltage |
14v-24v |
|
Spurious in IF Band |
≤-100dBm |
|
L.O. Frequency |
1838,1998,,2030,2033,2278,
|
|
L.O. Stability |
≤±30KHz |
|
Operating Temperature |
-40centigrade to +70centigrade |
|
Input Type |
BT280:Integrated Dipole Antenna |
|
Lightning Protection |
Meets IEEE Stands |
|
100% Hermetic |
Sealed |

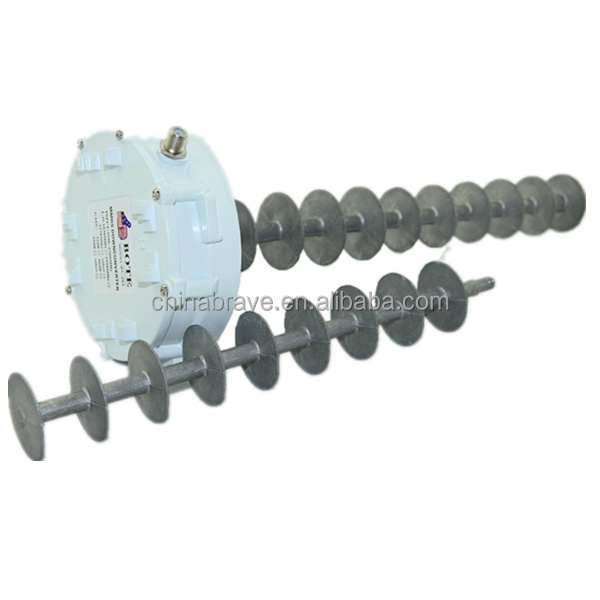

picture show:
