Quick Details
-
Brand Name:
-
Anqixin
-
Model Number:
-
AQX-P-HE2HE8
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
poe switch
-
datarate:
-
10/100M
-
PoE Ports:
-
8*10/100M POE Ports
-
Model:
-
AQX-P-HE2HE8
-
Dimensions (H x W x D):
-
195*130*40mm
-
Power Supply:
-
UK/EU/US/AU
-
Warranty:
-
1year
-
MOQ:
-
1 Pcs
-
Uplink Ports:
-
2*10/100M
-
PoE Standard:
-
24v
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
2Gbps
-
Brand Name:
-
Anqixin
-
Model Number:
-
AQX-P-HE2HE8
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
poe switch
-
datarate:
-
10/100M
-
PoE Ports:
-
8*10/100M POE Ports
-
Model:
-
AQX-P-HE2HE8
-
Dimensions (H x W x D):
-
195*130*40mm
-
Power Supply:
-
UK/EU/US/AU
-
Warranty:
-
1year
-
MOQ:
-
1 Pcs
-
Uplink Ports:
-
2*10/100M
-
PoE Standard:
-
24v
OVERVIEW

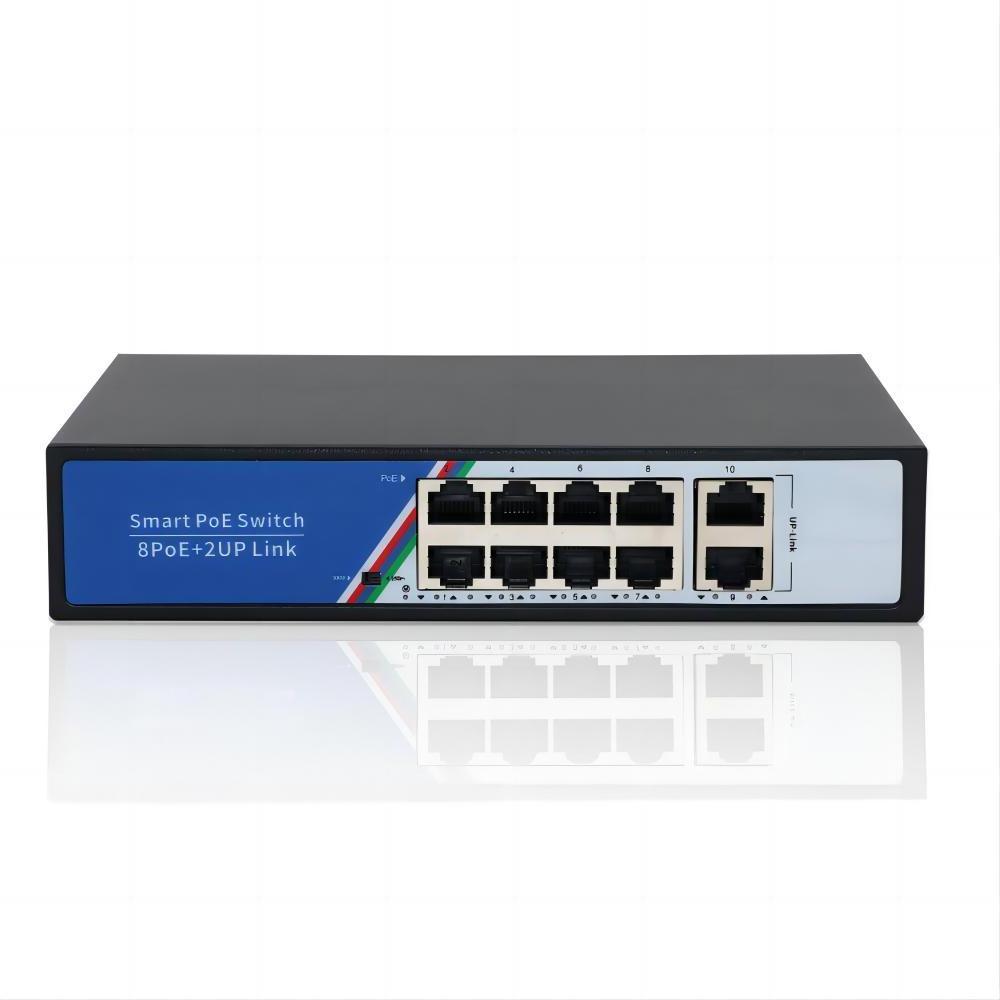

AQX-P-HE2HE8 8+2 Port 100 Mbit/s PoE switch is independently developed and designed by Anqixin . It is a high performance and low power consumption 100 Mbit/S PoE switch. It is the primary option for small and medium sized LAN. It provides 10*10/100Mbps RJ45 ports, of which ports 1-8 support IEEE 802.3af/at standard PoE power supply, intelligent identification of electrical devices, and support for 250m network extension. It can be used to connect upstream devices with higher bandwidth. Store and forward technology is used to ensure that the bandwidth is effectively allocated to each port. Full-line speed 100 megabit connection to workgroups or servers for easy plug and play, this flexible non-blocking architecture allows users to use without bandwidth and media network constraints. The switch supports half-duplex and full-duplex working modes, and each switch port supports the self-adaptation function. The port uses the store-and-forward mode, providing superior performance, simplicity, convenience, and intuitive networking solutions for working group users or small local area networks.
Non-network management model, plug and play, no configuration, easy to use.
FEATURE
Comply with IEEE802.3, IEEE802.3U, IEEE802.3X standards.
8* 10/100 Base-TX Ethernet ports (Data/Power), 2* 10/100 Base-T Ethernet ports (Data).
1K MAC address and MAC address automatic learning.
IEEE 802.3x full pair. Flow control and half double. backpressure flow control.
2 Gbps non-blocking wire speed forwarding backplane tape.
Support 250m network extension.
Maximum PoE port power :30W. Maximum PoE port power: 125W.
Desktop wall mounted, plug and play.
Supports 25M clock and RFC MIB counter
Built-in power supply, hardware shell design.
TECHNICAL SPECIFICATION
|
Chip sol ution |
RTL8309+RTL8305 |
|
Standards/Protocols |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
|
Network medium |
10BASE-T: CAT3/CAT4/CAT5(MAX: 100 meters) 100BASE-TX/100BASE-T: CAT5,CAT5e(MAX:100 meters) |
|
Fixed port |
8*10/100 Base-TX (Data/Power) 2*10/100 Base-T (Data) |
|
Forwarding mode |
Store and forward |
|
MAC address |
1K |
|
Exchange capacity |
2Gbps |
|
Packet forwarding rate |
1.448Mpps |
|
Port Lightning Protection |
≥ 4KV |
|
Indicator light |
main body |
Power / System (Power: Green light) Load connected : Light on |
|
|
|
port |
Link/Activity (Link/Act: Green light) Signal connected : Flash |
|
|
Power supply |
AC:100-240V 50/60Hz i nternal DC24V,125W |
||
|
POE power supply |
24V |
||
|
Installation Mode |
Desktop / wall mounted |
||
|
Port characteristics |
Two modes: OFF: indicates the common mode All ports can communicate with each other and can be used as common non-NMS PoE switches. ON: Extended mode The maximum transmission distance of the switch is 250 meters. |
||
|
Operating environment |
Operating temperature: -10 ℃ ~ 70 ℃ (32 ℉ ~127 ℉ ) Storage temperature: -40 ℃ ~85 ℃ (-97 ℉ ~142 ℉ ) Operating humidity :10%~90% non-condensing Storage humidity: 5%-95% non-condensing |
||
Appearance & Dimensions ( mm ):
Product Size: 195*130*40mm/631g
Package Size: 255*210*48mm /862g
OEM package
Support :DHL,UPS,FEDEX,SEA SHIPPING,AIR SHIPPING
