Quick Details
-
Ink Type:
-
Fast Dry Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MASIJET
-
Voltage:
-
110/220V AC 50/60Hz
-
Dimensions(L*W*H):
-
420x310x600mm
-
Weight:
-
27 KG
-
Marketing Type:
-
New Product 2024
-

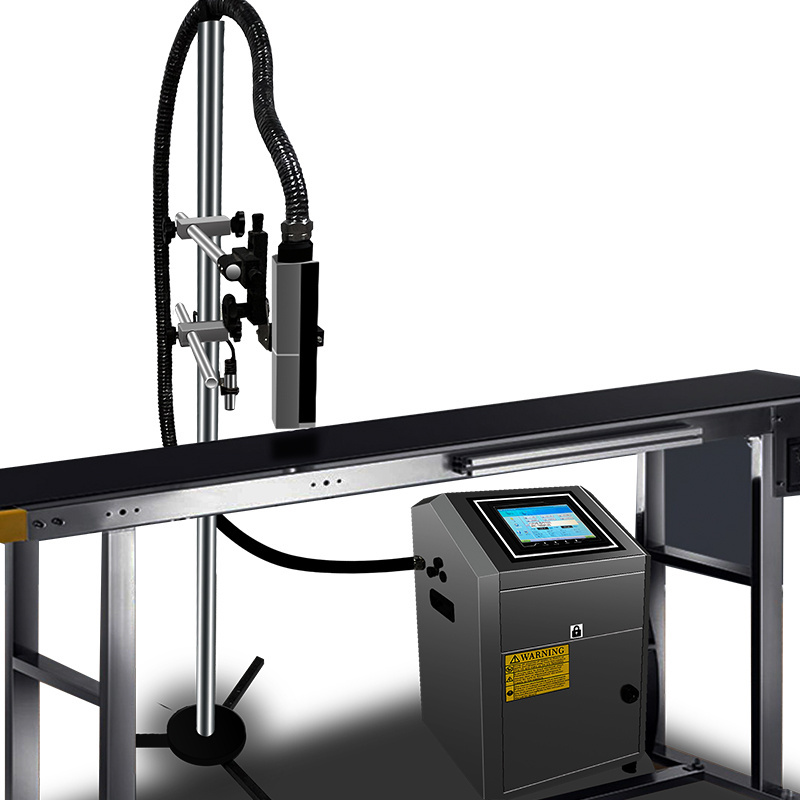

Product name:
-
MSJ-S7600
-
After-sales Service Provided:
-
Online support
-
Printing height:
-
0-15mm
-
Printing material:
-
ink
-
Print speed:
-
180m/min
-
Print head:
-
Triple anti blocking function
-
Printing type:
-
Time, date, QR code, automatic date, etc
Quick Details
-
Print Dimension:
-
1-13mm
-
Condition:
-
New
-
Color & Page:
-
single color
-
Ink Type:
-
Fast Dry Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MASIJET
-
Voltage:
-
110/220V AC 50/60Hz
-
Dimensions(L*W*H):
-
420x310x600mm
-
Weight:
-
27 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
MSJ-S7600
-
After-sales Service Provided:
-
Online support
-
Printing height:
-
0-15mm
-
Printing material:
-
ink
-
Print speed:
-
180m/min
-
Print head:
-
Triple anti blocking function
-
Printing type:
-
Time, date, QR code, automatic date, etc
Product parameters
|
Number of printing lines
|
1-6 lines
|
|
Printing dots
|
5x5 5x7 7x9 6x12 8x16 12x16 11x24 24 dot matrix and self-editing dot
|
|
Printing speed
|
3m/s (5x7)
|
|
Storage information
|
unlimited storage of printing information
|
|
Operation interface
|
touch screen, Chinese and English menu
|
|
Printing content
|
date, time, automatic date, automatic effective, shift number, batch number, serial number, four sets of counting, meter counting,
self-editing pattern, simulation, counterfeit code, multi-language, various fonts |
|
Print length
|
1024 characters
|
|
Input method
|
Chinese input, Pinyin input method, location code input method
|
|
Printing color
|
black, blue, red and other colors
|
|
Jet printing character height
|
1～15mm (character height)
|
|
Printing distance
|
0～30mm
|
|
The font is widened
|
1 to 9 times, and a single character can be widened
|
|
Font direction
|
normal, reverse, reverse, reverse, and can be customized for individual printing
|
|
Font deformation
|
1 to 8 times, can be edited point by point at will
|
|
Case
|
304 stainless steel
|
|
Protection level
|
IP55
|
FAQ
Product advantage
1. Diaphragm pump and four pumps integrated design
adopt the most advanced diaphragm pump in the industry, ink pump, solvent pump, recovery pump, circulating pump four pump integrated design, eliminating the traditional gear pump, no need for compressed air
2. Unique nozzle triple anti-blocking function
independent cleaning pump 、unique nozzle double valve structure 、 nozzle piece can be removed separately
3. Ink viscosity automatic control system
the adopted control system can be adjusted automatically, and is not affected by environmental temperature changes and the length of the boot time, so that the inkjet printer always maintains perfect printing quality
4. Powerful printing function
It has special functions such as code synchronization, photoelectric synchronization, synchronizer synchronization and fixed distance, online inspection for N times of printing, N times of inspection for one printing and other special functions.
5. Perfect digital circuit control system
The "all digital intelligence" menu system can automatically digitally display important parameter points in the circuit ink circuit system, operating data and other important parameters, and can be digitally adjusted.
6. Special harsh industrial environment:
It adopts abrasion-resistant stainless steel chassis, IP55 protection level, and the unique positive pressure air function of the nozzle can resist the intrusion of dust and water, which is suitable for use in various harsh environments.
