Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Usage:
-
manufacture springs
-
Product name:
-
Spring making machine
-
Advantage:
-
High speed
-
Quality:
-
Guaranteed
-
Package:
-
Wooden Case
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Bysen
-
Weight (KG):
-
700
-
Marketing Type:
-
Hot Product 2022
-
Usage:
-
manufacture springs
-
Product name:
-
Spring making machine
-
Advantage:
-
High speed
-
Quality:
-
Guaranteed
-
Package:
-
Wooden Case

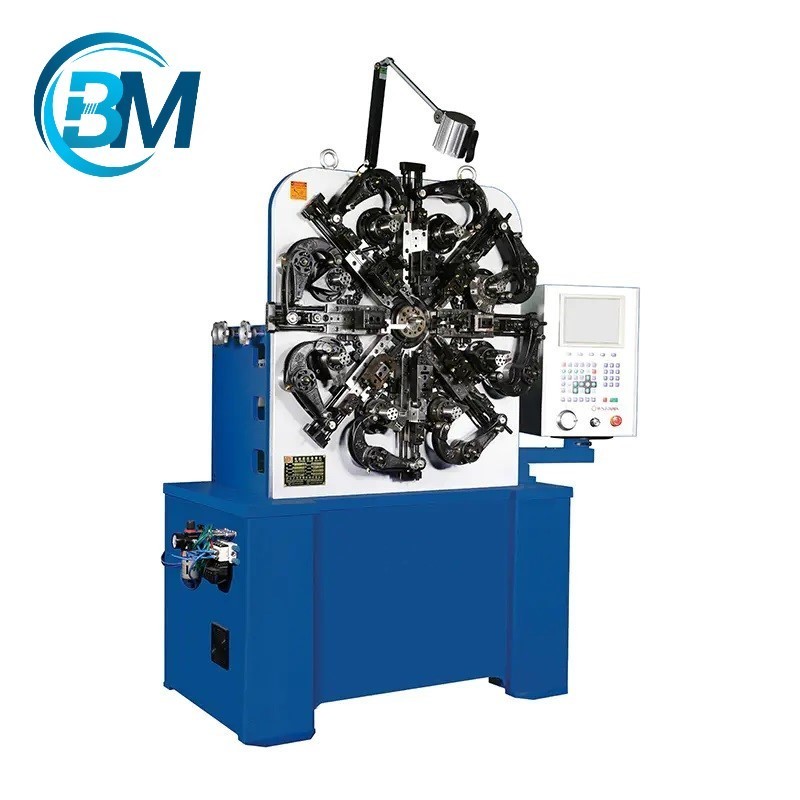

Product Description
This machine adopts high-precision computer to control the wire feeding shaft and cam shaft, and the two-axis/three-axis can operate simultaneously or independently at high speed. The wire feeding shaft controls wire feeding, and the cam shaft drives the cam to control the outer diameter, pitch, cutter and forming. This machine is suitable for forming various springs, wire forming and other special-shaped springs.
Functions and features
1. Taiwan computer control system and servo motor;
2. English and Chinese interface, easy to operate.
3. Equipped with precision detection and tracking system, if there are unqualified products, it can automatically stop;
4. According to the working conditions on the fluorescent screen, the outer diameter and angle of the product can be corrected at any time;
5. The automatic lubrication and oil supply design of mechanical automatic parts ensures the long-term operation of the equipment;
6. The automatic shutdown design and automatic acceleration function of the wire rack when the wire is wireless, broken or tangled, making the production easier and more effective;
Products that made by the machine
Specification
|
Spring Machine Model
|
BM-208
|
BM-312
|
BM-316
|
BM-320
|
BM-335
|
|
Process wire diameter (mm )
|
Φ0.15~ Φ0.8
|
Φ0.2~Φ1.2
|
Φ0.3-Φ1.6
|
Φ0.5-Φ2
|
Φ1.5-Φ3.5
|
|
Process outer diameter(mm)
|
Φ18
|
Φ30
|
Φ30
|
Φ40
|
Φ50
|
|
Feeding speed
|
100m/min
|
100m/min
|
100m/min
|
100m/min
|
100m/min
|
|
wire feed command value (mm)
|
±0.01~±9999.99
|
±0.01~±9999.99
|
+0.01~±9999.99
|
+0.01~±9999.99
|
+0.01~±9999.99
|
|
Cam command value
|
±0.1°~±359.9°
|
±0.1°~±359.9°
|
±0.1°~±359.9°
|
±0.1°~±359.9°
|
±0.1°~±359.9°
|
|
Wire feeding servo motor (kw)
|
1
|
1.5
|
1.5
|
2.7
|
5.5
|
|
Cam servo motor( kw)
|
1
|
1.5
|
1.5
|
2.7
|
5.5
|
|
Approx weight (kg)
|
350
|
400
|
450
|
570
|
1060
|
|
Dimension (LxWxH)
|
760x630x1350mm
|
950x600x1520mm
|
1000x620x1600mm
|
1040x800x1680mm
|
1280x810x1850mm
|
For other unshown models, please contact us for more details.
