Quick Details
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
75*55*130
-
Weight (KG):
-
130
-
Power (kW):
-
0.75
-
Max Grinding Width:
-
150mm
-
Grinding Thickness:
-
0.3-3.2mm
Quick Details
-
Wheel Size(mm):
-
250mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Durowelder
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
75*55*130
-
Weight (KG):
-
130
-
Power (kW):
-
0.75
-
Max Grinding Width:
-
150mm
-
Grinding Thickness:
-
0.3-3.2mm

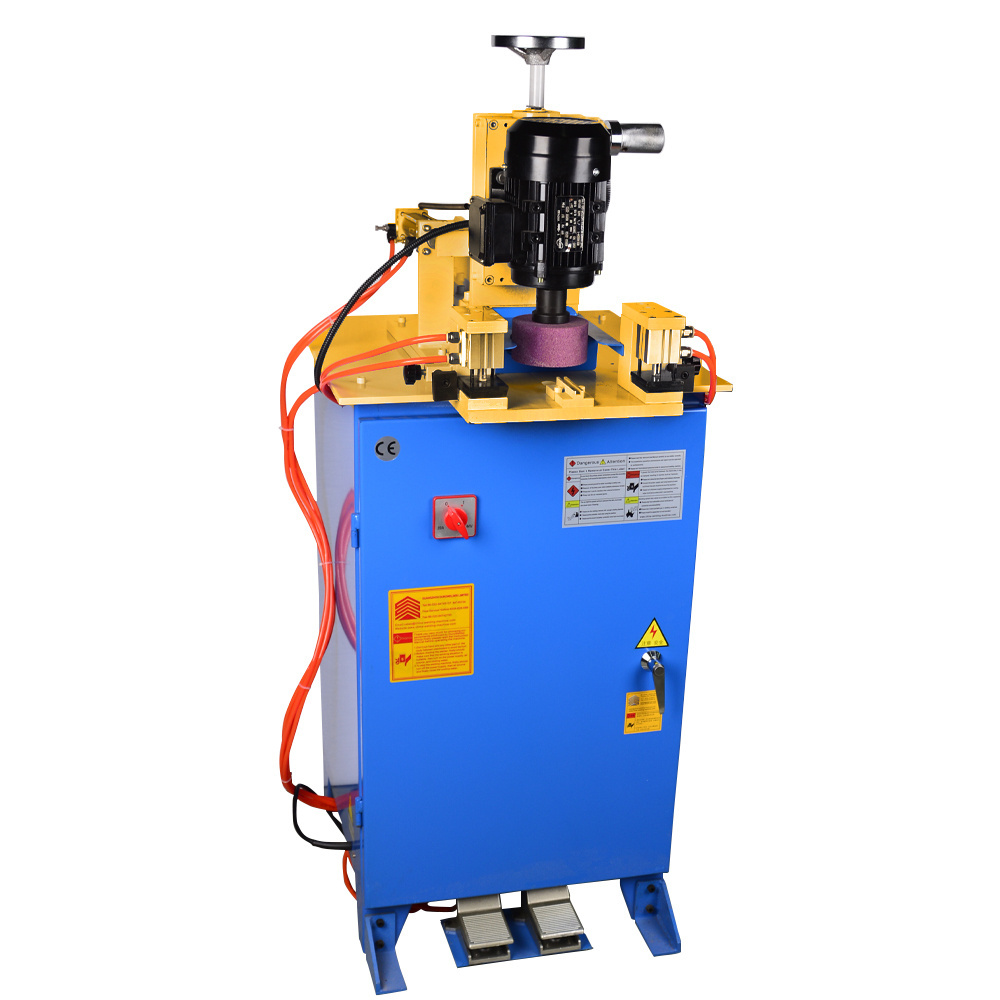

SMH Series Automatic Band Saw Welding Burr Grinding Machine
Main Descriptions
The Bandsaw Welding Burr Grinding Machine is also named as Band Saw Welding Burr Remover, which is mainly used for grinding and cleaning the extra burr after butt welding, can remove the welding burr from the band saw and other kind of steel strip butt welded joints easily.
Basing on the European Technology, special fixing system and exactly adjustable, the thickness and surface of welding joints is nearly same as the original bandsaw strip after the processed precisely and evenly.
Main Features
1.Pneumatic clamping, automatic grinding and polishing, efficient, fast, time-saving and labor-saving.
2.Easy to use, with automatic and manual , two operating models.
3.More Stable and Stronger mechanical frame and base.
4.Both band saw blade width and thickness are adjustable.
5.After grinding, the weld seam is smooth and beautiful.
6.Approved with European CE Certificate,made by higher quality standard.
Main Specifications
|
|
Max Grinding Width |
Grinding Thickness |
Total Motor Power |
Input Voltage |
Net/Gross Weight |
Dimension (L*W*H) |
|
SMH-67MM |
67MM |
0.3-3.2mm |
0.75KW |
220V, 380V, 415V, 440V, 480V, 50/60Hz |
140/180KG |
75*55* 150CM |
|
SHM-100MM |
100MM |
|||||
|
SHM-120MM |
120MM |
|||||
|
SHM-150MM |
150MM |
1 .0KW |
160/200KG |
80*60* 160CM |
