Quick Details
-
Model Number:
-
DX-330F
-
Size(mm)(width * height * depth):
-
320*130*285
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
FuJian,China
-
Brand Name:
-
DeXing
-
Model Number:
-
DX-330F
-
Size(mm)(width * height * depth):
-
320*130*285

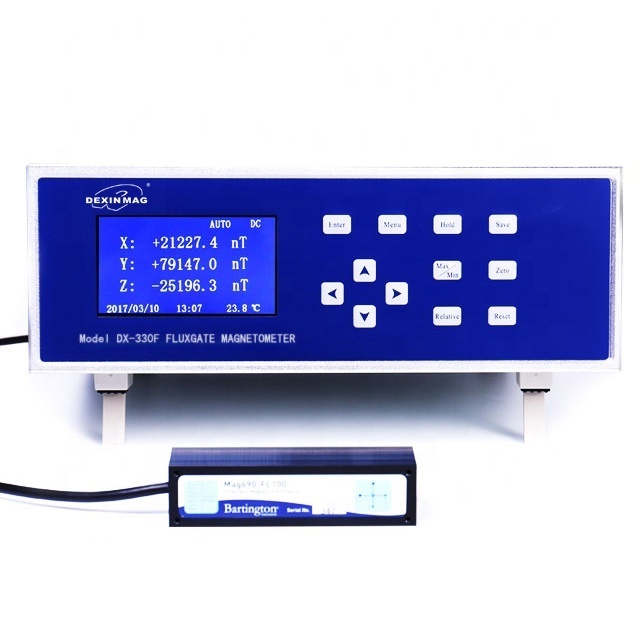

DX330 High Resolution Fluxgate Magnetometer For Laboratory
Introduction
DX-330F fluxgate magnetometers are instruments for accurate measurement of weak static and dynamic and low frequency vector magnetic fields. Compared with a magnetic field measuring instrument with high stability, linearity and accuracy, it is compared with the principle of Hall effect or the principle of magneto-resistance effect. It is the best choice to measure the weak magnetic field.
Analog signal output, unique CAN bus network interface is suitable for multi-array magnetic field testing, widely used in scientific research, military, aerospace and other departments.
Parameters
|
DX-330F
|
|
|
|
|
|||
|
Size(mm)(width * height * depth)
|
320*130*285
|
|
|
|
|||
|
Dimensions
|
3
|
|
|
|
|||
|
Resolution
|
0.1nT
|
|
|
|
|||
|
Preheating Time
|
15mins
|
|
|
|
|||
|
Accuracy
|
< 0.5% of reading
|
|
|
|
|||
|
Noise level
|
10 -20pTrms/√Hz at 1Hz
|
|
|
|
|||
|
Range (optional)
|
±100μT
|
±500μT
|
|
±1000μT
|
|||
|
Error of temperature coefficient
|
1nT/ºC
|
±10nT/°C
|
|
±10nT/°C
|
|||
|
Bandwidth at -3db
|
>1.5kHz
|
|
>100Hz
|
|
|||
|
Three-dimensional orthogonality error
|
<1°
|
|
<2°
|
|
|||
|
Frequency response (DC deviation: < 5)
|
1000Hz
|
|
1000Hz
|
|
|||
|
Operating temperature range
|
-40ºC to +70ºC
|
|
0°C to +215°C
|
|
|||
|
Acquisition rate
|
0-300 times/second
|
|
0-300 times/second
|
|
|||
|
Probe size(mm) (original British)
|
32*32*122
|
|
23*23*21.4
|
|
|||
|
Communication
|
RS-232/USB
|
|
RS-232/USB
|
|
|||
|
Analog output
|
3 channels BNC
|
|
3 channels BNC
|
|
|||
|
Supporting software
|
Data reading software
|
|
Data reading software
|
|
|||
Hardware interface information of Flux-gate Magnetometer
|
Interface DB15
|
Probe input/output
|
|
Measuring mode
|
Hand-held probe or homemade tooling
|
|
Reading mode
|
Display screen or computer software
|
|
Display
|
7-bit SVG color screen
|
|
BNC
|
Analog signal output
|
|
Power supply
|
220V
|
|
RS-232
|
Digital signal input / output
(providing instruction format) |
