Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PF
-
Weight:
-
500 KG
-
Certification:
-
CE
-
Capacity:
-
20-80packs /min
-
Packing dimension (L):
-
40-160MM
-
Packing dimensions ( W):
-
20-100MM
-
Packing dimension (H):
-
10-40MM
Quick Details
-
Packaging Type:
-
Cartons, CANS, Bottles, Barrel, Bags, Film, Foil, Belt, Pouch, case
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PF
-
Weight:
-
500 KG
-
Certification:
-
CE
-
Capacity:
-
20-80packs /min
-
Packing dimension (L):
-
40-160MM
-
Packing dimensions ( W):
-
20-100MM
-
Packing dimension (H):
-
10-40MM

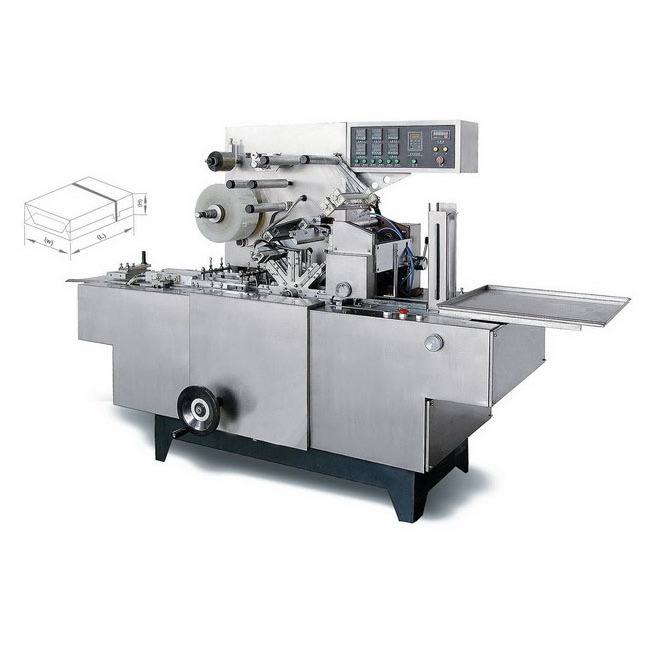

Model BT-2000B Cellophane wrapping machine
1. Application:
The machine is a prefect and ideal box type cellophane overwrapping machine which is suitable for wrapping kinds of middle and small sized single box and its package size range is less than model BT-2000A's .
2. Main technical parameters
| Production capacity 20-80(packs/min) | |||||
| Packing dimensions (40-160)×(20-100)×(10-40)mm | |||||
| Power supply 220V 50Hz | |||||
| Motor power 0.75Kw | |||||
| Electric heating 4Kw | |||||
| Overall dimensions 2400×800×1560mm | |||||
| Weight 800Kg |
3. Option:
1). Touch screen PLC program,
2). Photocell device
3). Ink-jet printer
4. Machine drawing:
