Quick Details
-
Model Number:
-
QS273 8000W 50H V3
-
Brand Name:
-
qsmotor
Quick Details
-
Voltage:
-
72V
-
Style:
-
Two rounds
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
QS273 8000W 50H V3
-
Brand Name:
-
qsmotor
Product Description

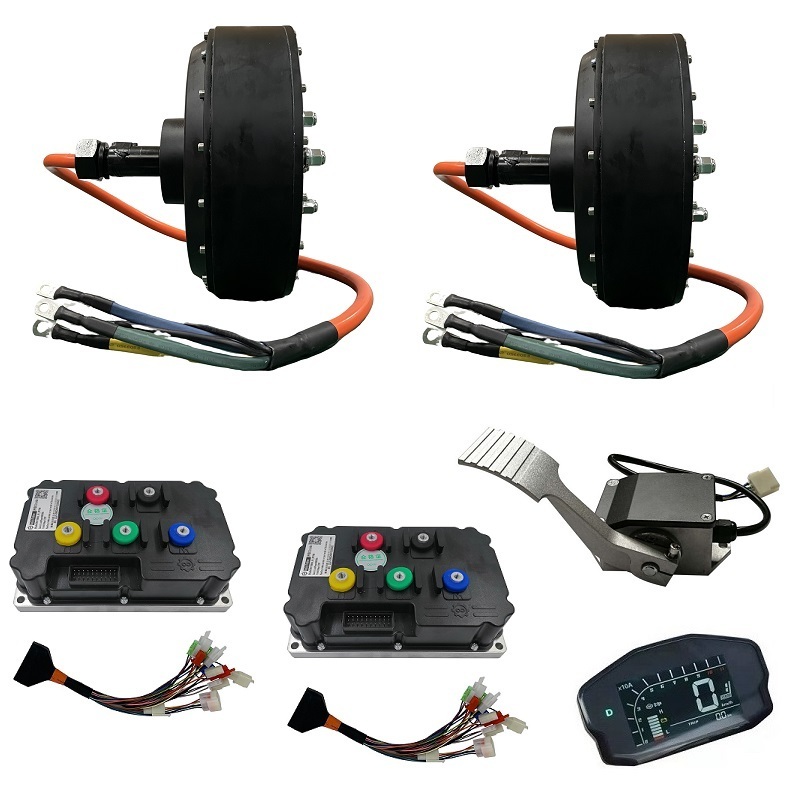

Dual 8000W Electric Car Hub Motor Kits
Combo
2pcs x QS273 50H 8000W V3 Single shaft Hub Motor
2pcs x Far-driver Controller ND72850 With Bluetooth
1pcs x DKD speedometer
1pcs x Pedal throttle
2pcs x QS273 50H 8000W V3 Single shaft Hub Motor
2pcs x Far-driver Controller ND72850 With Bluetooth
1pcs x DKD speedometer
1pcs x Pedal throttle
2pcs x Brake disc 220mm
Specification
1. QS273 50H V3 8000W Single shaft Hub Motor
|
Motor type
|
BLDC Hub Motor with Permanent Magnets
|
|
Motor design
|
Single axle out hub motor
|
|
Pole pairs
|
16 Pairs
|
|
Rated Power
|
8000W
|
|
Peak Power
|
16000W
|
|
Rated Voltage
|
72V
|
|
Max. Speed
|
120kph
|
|
Max. Torque
|
300N.M
|
|
Max. Effieciency
|
89%
|
|
Max. Current
|
250A
|
|
Brake type
|
Disc brake
|
|
Bolt pattern for rim
|
PCD 4 x 100mm, CB:60MM
|
|
Croess Section of phase cable
|
16MM2
|
|
Tem. Sensor
|
KTY83-122
|
|
Water proof Grade
|
IP67
|
2. Fardriver Controller ND72850
|
Model Number
|
Max. Line Current
|
Max. Phase Current
|
Norminal Voltage
|
Max. Voltage
|
Dimension
|
Efficiency
|
Working Temperature
|
|
ND72850
|
450A
|
850A
|
72V
|
88.7V
|
222X142X71MM
|
98%
|
-40 ~ 85 Degree
|
3. DKD-061 Speedometer
Model: 061 Speedometer
Voltage: 48V-84V
Screen: LCD 4.3inch
Protection: IP67
Signal: ONE-LIN,CAN,RS485(Customs)
Voltage: 48V-84V
Screen: LCD 4.3inch
Protection: IP67
Signal: ONE-LIN,CAN,RS485(Customs)
4. Pedal Throttle
5. Complete Oil-pressure Disc brake system with Caliper
Our Customers' Case
Small Electric Car, E-Tricycle, E-ATV, Electric Golf cart, UGV
Packing & Delivery
Foam and Carton package
