Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
SunNav
-
Angle for Receiving Laser:
-
360°
-
Detection Resolution:
-
±3mm
-
LED GRADE DISPLAY LS808:
-
Red=High Yellow=Low On-grade=Green
-
Interface of receiver:
-
RS-232
-
Mounting pipe of LS808:
-
round tube O.D.: 40-55mm
-
LED Display CB808:
-
Red=high yellow = low on-grade=green
-
Valve compatibility:
-
on/off type
-
Operation range ( diameter):
-
600m ( depends on environment)
-
Electric Input:
-
9v to 16v VDC, reverse polarity protected
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
Quick Details
-
Core Components:
-
other
-
Type:
-
Laser Land Leveling
-
Use:
-
Precision Agriculture
-
Place of Origin:
-
China
-
Brand Name:
-
SunNav
-
Angle for Receiving Laser:
-
360°
-
Detection Resolution:
-
±3mm
-
LED GRADE DISPLAY LS808:
-
Red=High Yellow=Low On-grade=Green
-
Interface of receiver:
-
RS-232
-
Mounting pipe of LS808:
-
round tube O.D.: 40-55mm
-
LED Display CB808:
-
Red=high yellow = low on-grade=green
-
Valve compatibility:
-
on/off type
-
Operation range ( diameter):
-
600m ( depends on environment)
-
Electric Input:
-
9v to 16v VDC, reverse polarity protected
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None

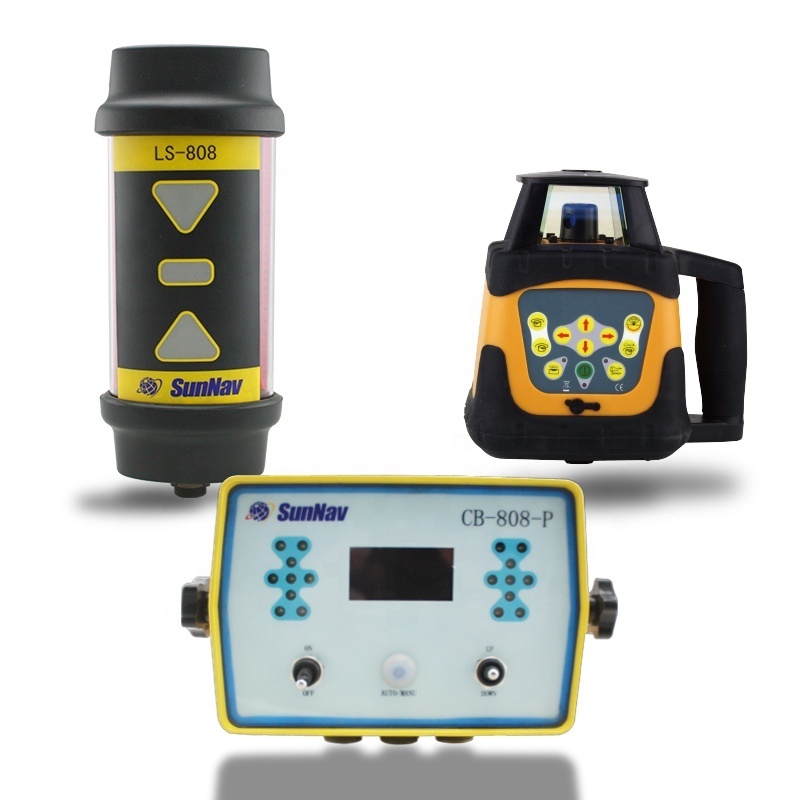

AG808 Laser Land Leveling System
AG808+ series products are auto land leveling control system developed by our company for land leveling application which is based on laser and electric hydraulic control. The system is high accuracy, stable performance, easy operation, dust and water proof, shockproof and durable, It is used for high precision land leveling, the accuracy is +/-2cm, it helps for water-saving irrigation, uniformly fertilization and output increasing.
The setting up and operation is very simple
Easy to install or uninstall
The function of GPS positioning & GSM communication is optional
LCD display screen for displaying of real time altitude difference
The tracking working trajectory, auto area calculating and remote controlling can be made after the data was uploaded to server (optional function)
Double laser receiver is supported and making grading more precisely and efficiently
| PRODUCT TYPE | Laser Land Leveling |
| CB-808 |
Power 1pc
Control 1pc Receiver 1pc Accuracy of Leveling ±2cm Operating Temp. 40°C to 71°C Storage Temp. -55°C to 85°C Controlling Handle support OLED Display Screen Yes Self-luminous Yes Wide Viewing Angle Yes High Contrast Yes Low Electricity Consumption Yes Dimension 41cmx35cmx20cm Gross Weight 6kg |
| KF-508 |
Laser Source: 2.5mW laser diode: Class-II Visible diode (635m)
Operating Range (diameter):600m (depends on environmental condition) Sloping Leveling:Yes Self-leveling Accuracy:±0.05mm/m Self-leveling Range: ±5° Rotation:600 rpm Storage Temperature:-20°C to 80°C Dimension:44cmx28cmx38cm Gross Weight:5.5kg Power Source:NI-MH rechargeable battery, continuously work for 10 hours Operating Temperature:-20°C to 70°C |
| LS-808 |
Angle for Receiving Laser: 360°
Detection Window : 200mm Detection Resolution: ±3mm Vertical LED Indicator: Yes Interface: RS-232 or RS-485 CAN J1939 (option) Water/Dust Proof: IP68 Power Source: Power Supply Operating Temperature: -40°C to 71°C Storage Temperature: -55°C to 85°C Electric Input: 9v to 16v Dimension: 41cmx35cmx20cm Weight: 4kg |
