Quick Details
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Color:
-
customize
-
Filtering precision:
-
30 ~ 3000μm
-
Pressure rating:
-
1.0Mpa/1.6Mpa/2.5Mpa
-
Single filter water flow:
-
80 ~ 4200 m3 / h
-
Working temperature range:
-
0 ~ 65 °C / 98 °C
-
Backwash time:
-
10~20 sec
-
Control mode:
-
pressure control; PLC timing control; manual control
-
Drive way:
-
hydraulic drive; motor drive
Quick Details
-
Weight (KG):
-
300
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
AIGER
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Color:
-
customize
-
Filtering precision:
-
30 ~ 3000μm
-
Pressure rating:
-
1.0Mpa/1.6Mpa/2.5Mpa
-
Single filter water flow:
-
80 ~ 4200 m3 / h
-
Working temperature range:
-
0 ~ 65 °C / 98 °C
-
Backwash time:
-
10~20 sec
-
Control mode:
-
pressure control; PLC timing control; manual control
-
Drive way:
-
hydraulic drive; motor drive
Factory price 50 micron agriculture drip irrigation screen filter

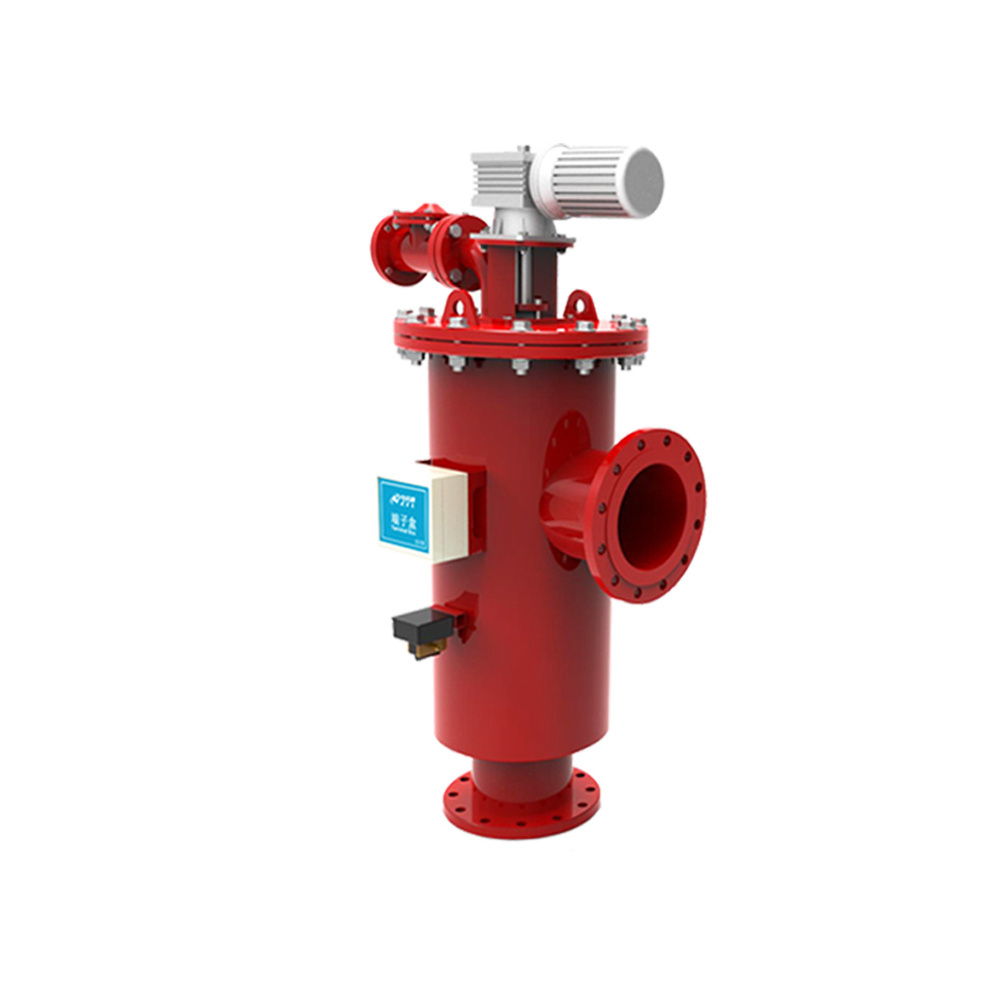

The A600 series is vertical self cleaning filter, small footprint saves valuable installation space. The cleaning mode is motor brush with good cleaning effect.
Self cleaning filter product features:
1. automatic operation of self cleaning filter adopts advanced automatic control mode and realizes full automation.
2. self cleaning filter water saving and energy saving water is not dirty, no sewage, small displacement, and low power consumption.
3. self cleaning filter is easy to maintain and less routine maintenance.
4. self cleaning filter is easy to install. Different installation modes can be selected according to different field conditions.
5. the self cleaning filter does not stop flow in the process of continuous water cleaning, and does not affect the normal operation of the system.
6. self cleaning filter remote monitoring can achieve remote monitoring and can be selected according to user requirements.
The Filtering Process
Raw water enters the filter inlet through the coarse screen which protects the cleaning mechanism from large particles. Then water passes through the fine screen, trapping dirt particles which accumulate inside the filter. Clean water flows through the outlet.
The gradual dirt buildup on the inner screen surface causes a filtration cake, with a corresponding increase in the pressure differential across the fine screen. A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.
Back-flushing process
Cleaning of the filter is carried out by the brush which spirals across the screen; The Drain Valve opens and the Motor rotates the stainless steel brushes which sweep the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve.
During the self cleaning process, which takes between 12 to 18 seconds, filtered water continues to flow downstream.
|
Filter flow |
80-4200 m³/h |
|
Max. recommended working pressure |
10 bar/16 bar/25 bar |
|
Min. operating working pressure during backwash |
2.5 bar |
|
Water temperature range |
0 ~ 65 °C |
|
Available filtration |
From 50micron |
|
Pressure loss |
< 0.1 bar |
|
Connections |
Flange |
|
Backwash time |
20-30 seconds |
|
Water consumption during backwash |
1%-3% of filtered water |
|
Control model |
DP/Timer/Manual |
|
Cleaning way |
Brush |
|
Drive way |
Motor drive |
|
Filter element |
Stainless steel 304 mesh |
|
Filter housing material of construction |
Carbon steel ST37-2/SS304/SS316 |
|
Sewage way |
Fully automatic |
|
Installation |
Vertical |
|
Rated operating voltage |
3ph/380V/50Hz or Customized |
Our company can manufacture the filter according to the user's requirements of size,material (eg.carbon steel, stainless steel), color and other special requirements.
|
Mode |
DN |
Flow |
Dimensions |
||||||||||
|
Filtration Area |
Weight |
Number of motors |
D |
H |
H1 |
H2 |
H2* |
L1 |
L2 |
||||
|
inch |
mm |
m³/h |
cm2 |
Kg |
mm |
||||||||
|
4 |
100 |
80 |
3530 |
175 |
1 |
377 |
500 |
875 |
1088 |
1350 |
373 |
350 |
|
|
A606 |
6 |
150 |
150 |
3530 |
180 |
1 |
377 |
500 |
875 |
1088 |
1350 |
373 |
350 |
|
A608 |
8 |
200 |
300 |
5650 |
210 |
1 |
377 |
700 |
1175 |
1388 |
1950 |
373 |
350 |
|
A610 |
10 |
250 |
400 |
7910 |
305 |
1 |
480 |
700 |
1195 |
1398 |
1950 |
403 |
420 |
|
A612 |
12 |
300 |
600 |
10880 |
340 |
1 |
480 |
1000 |
1495 |
1698 |
2550 |
403 |
420 |
|
A614 |
14 |
350 |
900 |
13820 |
540 |
1 |
610 |
1000 |
1545 |
1749 |
2600 |
443 |
480 |
|
A616 |
16 |
400 |
1100 |
13820 |
555 |
1 |
610 |
950 |
1545 |
1749 |
2600 |
443 |
500 |
|
A618 |
18 |
450 |
1500 |
13820 |
730 |
1 |
720 |
950 |
1555 |
1749 |
2600 |
443 |
550 |
|
A620 |
20 |
500 |
2000 |
21760 |
1120 |
2 |
1016 |
1200 |
1933 |
2136 |
3600 |
403 |
700 |
|
A624 |
24 |
600 |
2800 |
32640 |
1570 |
3 |
1220 |
1200 |
2000 |
2203 |
3060 |
723 |
800 |
|
A628 |
28 |
700 |
3200 |
41450 |
2250 |
3 |
1420 |
1300 |
2370 |
2573 |
3350 |
828 |
900 |
|
A632 |
32 |
800 |
4200 |
55360 |
2935 |
4 |
1620 |
1400 |
2450 |
2653 |
3450 |
780 |
1050 |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 25 days, and it is also according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we could not offer the sample for free charge.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
