Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
800*400*850mm
-
Weight:
-
110 kg, 55kg
-
Model:
-
UDKL-125
-
Capacity:
-
50-80
-
Spindle speed:
-
320
-
Power:
-
3kw
-
Dimension:
-
800*400*850mm
Quick Details
-
Max. Capacity:
-
50-500kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UD
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
800*400*850mm
-
Weight:
-
110 kg, 55kg
-
Model:
-
UDKL-125
-
Capacity:
-
50-80
-
Spindle speed:
-
320
-
Power:
-
3kw
-
Dimension:
-
800*400*850mm
Technical parameters
|
Model
|
UDKL-125
|
UDKL-150
|
UDKL-200
|
UDKL-260
|
|||
|
Power
|
3kw
|
4kw
|
5.5kw
|
11-15kw
|
|||
|
Capacity
|
50-80kg/h
|
80-100kg/h
|
200kg/h
|
500kg/h
|
|||
|
Spindle speed
|
320r/min
|
320
|
320
|
320
|
|||
|
Dimension
|
800*400*850mm
|
800*400*850mm
|
1000*550*900mm
|
1000*550*900mm
|
|||
|
Weight
|
55kg
|
65kg
|
90kg
|
110kg
|
|||
Product introduction

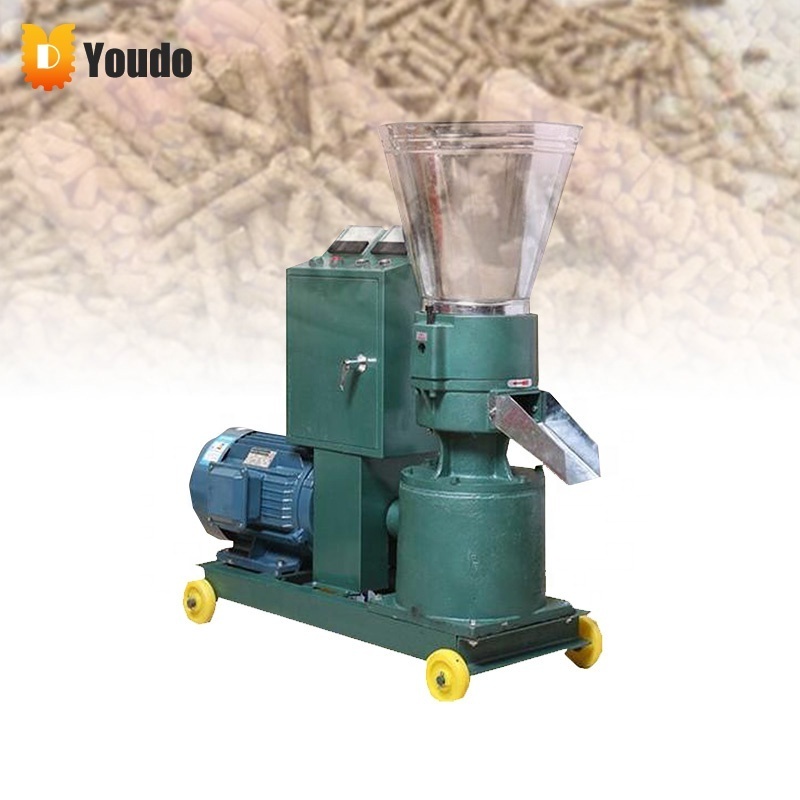

Pellet machine
(also known as: pellet feed machine, feed pellet machine, pellet feed forming machine)
The most ideal equipment necessary for feed processing such as raising chickens, ducks, fish, shrimps, rabbits, pigs, sheep, cattle, livestock, poultry, and aquaculture. Touch board, pressure roller (
5-7 times longer life than general feed pellet machine
, to ensure the production of more than tens of thousands of kilograms for self-employed), the machine adopts automobile differential speed.
Universal joint drive,
more reliable mechanical performance, is the preferred product in China. Easy to operate, low noise,
no water added
, hard particles, smooth, dry in and dry out, all kinds of straws are crushed, the dosage accounts for more than 65%, corn, barley, rice and other seed particles can be directly processed after crushing.
Low water content
, the water content is the national grain storage standard, and the feed can be cooked during the production process, which can not only improve the absorption efficiency of nutrients, but also kill general pathogenic microorganisms and parasites.
Finished product display
2.5mm is suitable for: small birds, small fish, etc.
3mm is suitable for: young rabbits, young chickens, young ducks, pigeons, grass carp and other small animals.
4mm is suitable for: adult rabbits, chickens, ducks, geese, pigeons, peacocks, etc.
5-6mm is suitable for: pigs, cattle, sheep, dogs, etc.
7-12mm is suitable for: fishing bait, large birds and other large livestock.
If you have special size requirements, please contact customer service, we can customize
Product details
Nylon casters
Easy to move, easy to produce, small footprint, necessary equipment for family farms, farms, ranches, zoos, and factories to produce feed.
Simple structure, wide applicability, small footprint, low noise
Widen and thicken the feeding port
It is simple, convenient, fast and efficient to pour the raw materials of the pellet feed to be made from here.
Powdered feed and grass meal can be granulated without (or a little) liquid addition. Therefore, the moisture content of pelleted feed is basically the moisture content of the material before pelleting, which is more conducive to storage.
Particle outlet
Thicken and widen the discharge port, and there are baffle plates on both sides to avoid the situation that the feed is scattered everywhere.
The particles produced have high hardness, smooth surface and sufficient internal curing, which can improve the digestion and absorption of nutrients, and can kill general pathogenic microorganisms.
Exquisite paint
New design, new machine paint, beautiful and durable.
There are a variety of aperture molds, suitable for granulation of different materials.
The produced granules are suitable for raising rabbits, fish, ducks and experimental animals, and can obtain higher economic benefits than mixed powdered feeds.
Press rollers, grinding discs
Adapt to different materials to ensure the pressing effect. Compression molding of wood chips, corn stalks, etc. requires a lot of pressure. In the same kind of pelletizing equipment, the roller part is the central part of the whole equipment, and the high-quality alloy steel is used to improve the service life of the roller.
