Quick Details
-
Measurement Range:
-
300-15000mm
-
Accuracy:
-
±10mm
-
Medium Density:
-
≥0.45g/cm3
-
Medium Temperature:
-
-20~+450C
-
Dia. of Turn Column:
-
9mm
-
Connecting Flange:
-
ANSI/Chinese standard flange
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
Shaanxi, China
-
Product name:
-
Magnetic Flap Level Meter
-
Measurement Range:
-
300-15000mm
-
Accuracy:
-
±10mm
-
Medium Density:
-
≥0.45g/cm3
-
Medium Temperature:
-
-20~+450C
-
Dia. of Turn Column:
-
9mm
-
Connecting Flange:
-
ANSI/Chinese standard flange
Magnetic Flap Level Meter
- Stainless steel 304/316
- 4-20mA output
- Low/high level alarming
- Side/top mounted option
- Anti-corrosion
-
High temperature resistance
Technical parameters:
|
Measurement Range |
a
300-15000mm |
|
Accuracy |
±10mm, |
|
Dia. of Turn Column |
9mm |
|
Operating Pressure |
≤10.0Mpa (>10.0Mpa can be separately designed ); anti-corrosion type ≤1.0Mpa |
|
Medium Density |
≥0.45g/cm3 |
|
Medium Density Difference |
≥0.15g/cm3 |
|
Medium Temperature |
-20~+450C |
|
Medium Viscosity |
≤0.4Pa·S |
|
Equipment Vibration |
Frequency≤25Hz, Amplitude≤0.5mm |
|
Follow Speed |
≤0.08m/s |
|
Connecting Flange |
ANSI/Chinese standard flange |
|
|

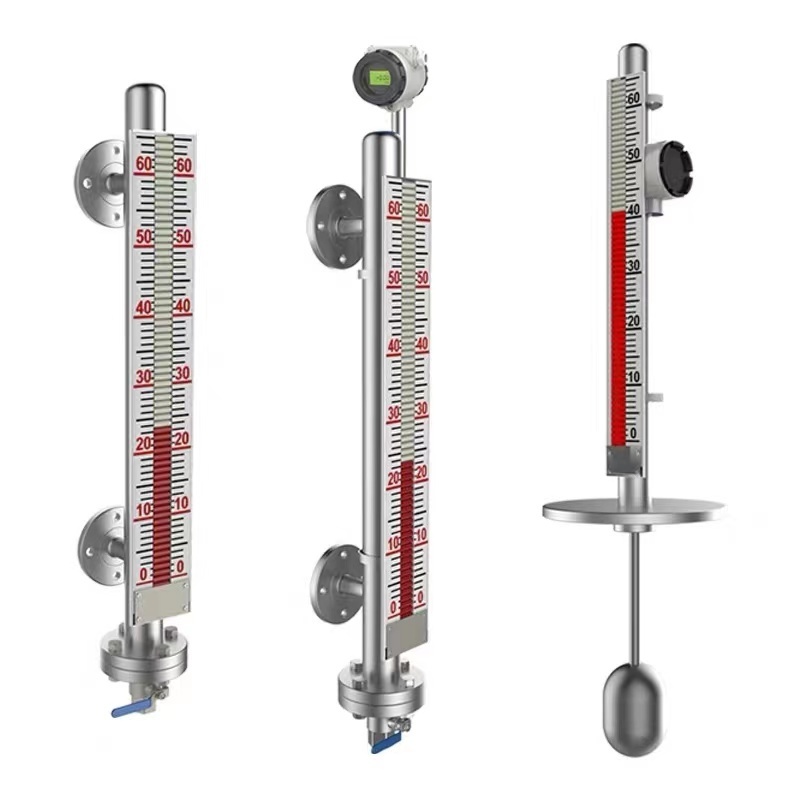

UHZ type Side Mounted Bi-color Magnetic Level Gauges
UHZ type Top Mounted Bi-color Magnetic Level Gauges
UHZ type Steam Jacket heating Bi-color Magnetic Level Gauges
UHZ type anticorrosion type Magnetic Level Gauges
Application
About us
The key members of our R&D have rich overseas learning and working experiences. Besides, our company often cooperates with some universities and scientific institutions. Therefore we have strong ability in researching and developing new technique in this field.
Since 2001, Smagall started to provide solutions to difficult hazardous liquid measuring/
controlling problems with our external measurement technique, which is being widely accepted for its distinct advantages over conventional sensors at the aspect of safety.
We have strong R&D team which can provide advanced products as well as customize sensors for various requirement of customers. Since establishment of the company, our products are well accepted by our customers in different part of world.
Some of our products have been awarded Patents for Innovation.
We sincerely welcome overseas buyers and suppliers to cooperate with us for mutural benefit.
Within business time , we will quote you AT ONCE.
Within non business time , we will quote you within 8 hours .
