Description:
-
rf power amplifier
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWT
-
Model Number:
-
SWT1.5K30M-4040
-
Manufacturer:
-
shinewave tech
-
Model:
-
SWT1.5K30M-4040
-
Frequency Range:
-
1.5kHz ~ 30MHz
-
Small Signal Gain:
-
+40.0dB (min.)
-
Gain Flatness:
-
±2.0dB (max.)
-
Output Power:
-
10W (min.) @1dB Comp.
-
Operation Mode:
-
Class A
-
Output I.C.P.:
-
+50.0dBm (typ.)
-
Harmonics:
-
-18.0dBc (max.) @Po=10W
-
Spurious:
-
-60.0dBc (max.) @Po=10W
-
Impedance:
-
50Ω
Quick Details
-
Type:
-
RF Amplifiers
-
Package / Case:
-
standard
-
Mounting Type:
-
standard
-
Description:
-
rf power amplifier
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SWT
-
Model Number:
-
SWT1.5K30M-4040
-
Manufacturer:
-
shinewave tech
-
Model:
-
SWT1.5K30M-4040
-
Frequency Range:
-
1.5kHz ~ 30MHz
-
Small Signal Gain:
-
+40.0dB (min.)
-
Gain Flatness:
-
±2.0dB (max.)
-
Output Power:
-
10W (min.) @1dB Comp.
-
Operation Mode:
-
Class A
-
Output I.C.P.:
-
+50.0dBm (typ.)
-
Harmonics:
-
-18.0dBc (max.) @Po=10W
-
Spurious:
-
-60.0dBc (max.) @Po=10W
-
Impedance:
-
50Ω
Product Display
|

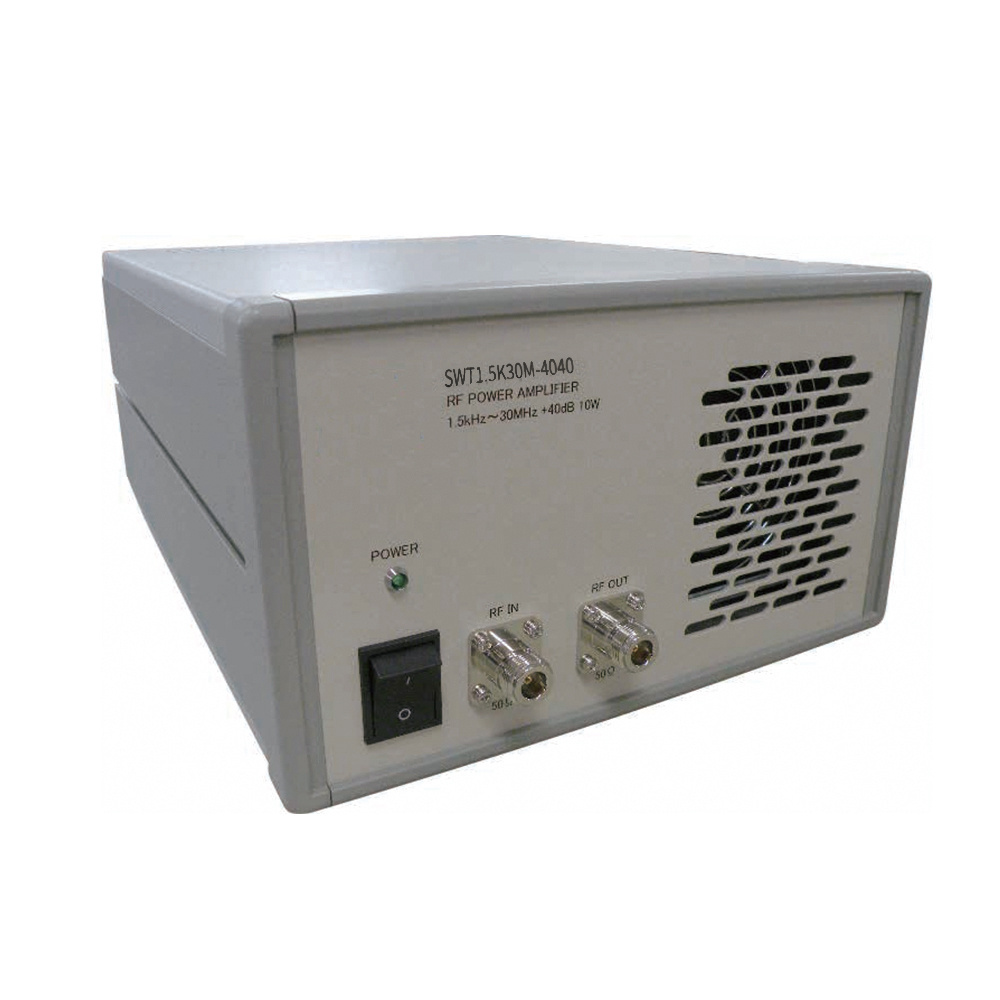

Model
|
SWT1.5K30M-4040
|
|
Frequency Range
|
1.5kHz ～ 30MHz
|
|
Small Signal Gain
|
＋40.0dB (min.)
|
|
Gain Flatness
|
±2.0dB (max.)
|
|
Output Power
|
10W (min.) @1dB Comp.
|
|
Operation Mode
|
Class A
|
|
Output I.C.P.
|
＋50.0dBm (typ.)
|
|
Harmonics
|
－18.0dBc (max.) @Po=10W
|
|
Spurious
|
－60.0dBc (max.) @Po=10W
|
|
Impedance
|
50Ω
|
|
Input Return Loss
|
9.5dB (min.) ／ VSWR : 2.0 (max.)
|
|
Output Return Loss
|
9.5dB (min.) ／ VSWR : 2.0 (max.)
|
|
Maximum RF Input Power
|
＋3.0dBm
|
|
Supply Input
|
AC90V～240V／1φ, 50／60Hz
120VA
|
|
Operating Temperature
|
0℃ to ＋40℃
|
|
Storage Temperature
|
－15℃ to ＋65℃
|
|
Connectors
|
RF‐IN N‐FEMALE
RF‐OUT N‐FEMALE
|
|
Size
|
(W)260mm×(D)350mm×(H)149mm
|
|
Weight
|
10.0kg (max.)
|
|
Cooling
|
Forced Air Cooling
|
