Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
gsmach
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
8000mm 2000mm 2500mm
-
Power (kW):
-
120
-
Weight:
-
4500 KG
-
Name:
-
plastic raw material machine
-
Material:
-
PP PE PET PVC EVA ,etc
-
Max. Capacity:
-
300-400 kg/h
-
cutting mode:
-
custom
-
Delivery:
-
45 days
-
Power:
-
37-132 kw
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
30:1
-
Screw Speed (rpm):
-
55 rpm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
gsmach
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
8000mm 2000mm 2500mm
-
Power (kW):
-
120
-
Weight:
-
4500 KG
-
Name:
-
plastic raw material machine
-
Material:
-
PP PE PET PVC EVA ,etc
-
Max. Capacity:
-
300-400 kg/h
-
cutting mode:
-
custom
-
Delivery:
-
45 days
-
Power:
-
37-132 kw

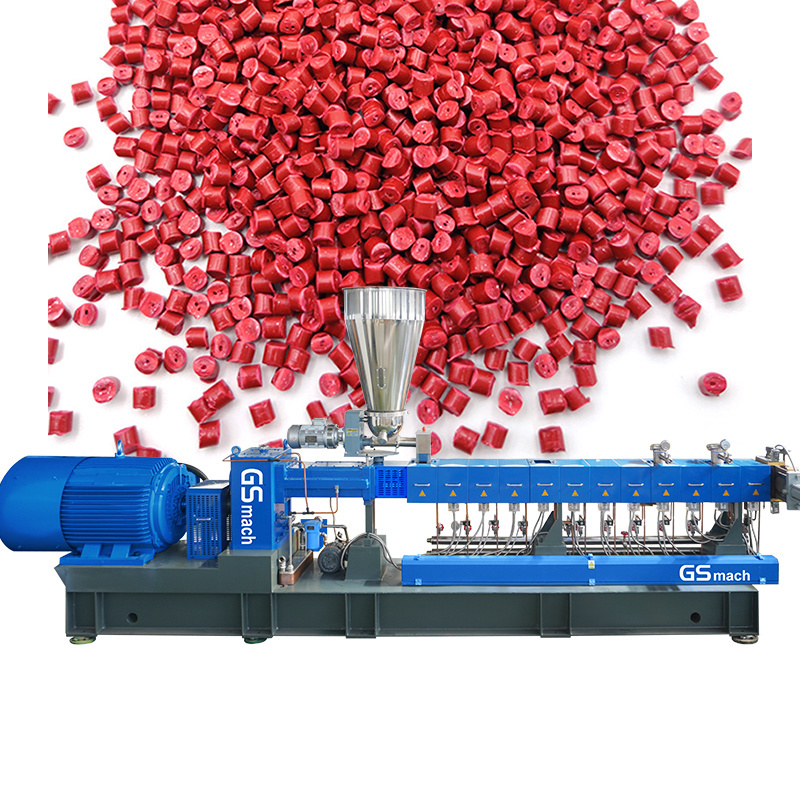

GS-mach plastic granules production line pvc pelletizing machine plastic raw material extruder machine
Overall View
GS mach which is a manufacturing vendor, specializing in the twin screw extruder pelletizing line and spare parts, with high quality machine and competitive price.
1. PLA PBAT+ corn starch biodegradable pellets making line
2. PET bottle flakes recycling and pelletizing line
3. EVA hot melt adhesive pelletizing line
4. PP/PE/EVA etc.+CaCO3/Talc/TiO2 filler pelletizing line;
5. PE/PP/ABS/AS/PA/EVA/PET etc. color/white/black masterbatch pelletizing line
6. HDPE/LDPE/LLDPE/MDPE/EVA/PVC/PP etc. cable compounding line
7. TPU/TPE/TPR/TPV thermoplastic elastomer pelletizing line
8. Glass/carbon fiber reinforced PA/PP/PBT/ABS/AS/PC/POM/PPS/PET etc.
9. Various twin Screw elements, screw barrels, side feeders, heaters, etc.
GSmach has 4 series twin screw extruder machines. You can use them for lab purposes or large production. From lab scale extruder
to big twin screw extruder (diameter up to 320mm), you can always find what you need.
Below are the detailed specifications of these extruders.
Product Description
GSmach is a professional twin screw extruder machine manufacturer.
We supply turn-key solutions to your compounding projects. This includes material handling, dosing, extrusion, pelletizing and
other aspects. Through our expertise you will find suitable solutions to your compounding system needs.
We supply turn-key solutions to your compounding projects. This includes material handling, dosing, extrusion, pelletizing and
other aspects. Through our expertise you will find suitable solutions to your compounding system needs.
Details Images
|
Technical Parameters
|
|
|
|
|
||||
|
Model
|
Main Motor
|
Screw Diameter
|
L/D
|
output(kg/h）
|
||||
|
GS20
|
3-4KW
|
21.7MM
|
32-60/1
|
2-15
|
||||
|
GS35
|
11-30KW
|
35.6MM
|
32-60/1
|
10-40
|
||||
|
GS50
|
45-90KW
|
50.5MM
|
32-60/1
|
120-200
|
||||
|
GS65
|
75-160KW
|
62.4MM
|
32-60/1
|
255-400
|
||||
|
GS75
|
110-250KW
|
71MM
|
32-60/1
|
450-750
|
||||
|
GS95
|
250-550KW
|
93MM
|
32-60/1
|
950-1600
|
||||
Advantages of twin-screw extruder
1. Good self cleaning performance and flexible modular configuration characteristics.
2. Suitable for processing different types of material systems, and are extensively used in fields of polymer processing
3.chemical products, and especially for various high molecular materials.
1. Good self cleaning performance and flexible modular configuration characteristics.
2. Suitable for processing different types of material systems, and are extensively used in fields of polymer processing
3.chemical products, and especially for various high molecular materials.
Filler Masterbatch
Filler Masterbatch are concentrates of CaCO3 or Talc or BaSO4 in a polymer base.
Color Masterbatch
Color masterbatch is used for any polymer and all kinds of product.
Additive Masterbatch
Additive Masterbatch are used in a wide variety of application.
Engineering Plastic
Our GSmach serial Extruder with high torque gearbox is special designed for this application.
Biodegradable Plastic
Given its durability and longevity, plastic waste becomes a huge challenge for a greener, better world.
Cable Compounding
We are committed to providing advanced extruder for all kind of cable compounding
Thermoplastic Elastomers (TPE)
It is a class of copolymers or a physical mix of polymers that consist of materials with both thermoplastic and elastomeric
properties.
properties.
PVC Compounding
PVC is durable, cheap, and easily worked. Before PVC can be made into finished products, it always requires conversion into a
compound by the incorporation of additives.
compound by the incorporation of additives.
PET Recycling
You can rely on GSmach's experience to develop and supply customised machines capable of handling tricky recycling tasks. No more
struggling with the recycling of bottle-grade PET.
struggling with the recycling of bottle-grade PET.
Pelletising system
