Quick Details
-
Wheel Size(mm):
-
150
-
Surface Roughness(μm):
-
0.1 μm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
TENROY
-
Voltage:
-
AC380V,50Hz
-
Dimension(L*W*H):
-
820x810x1810mm
-
Weight (KG):
-
850
-
Power (kW):
-
2.2
-
After-sales Service Provided:
-
No overseas service provided, Online support, Video technical support
-
Name:
-
universal tool grinder, punch tool grinding machine
-
Color:
-
Customizable
-
Application:
-
turret punch press toolings grinding purpose
-
Key words:
-
die grinding machine for sale
-
Maximum Grinding Diameter:
-
200mm
-
Max. Grinding Diameter:
-
150mm
-
Type:
-
Surface Grinding Machine
-
Certification:
-
CE ISO
Quick Details
-
Grinding Length(mm):
-
150
-
Table Travel (X) (mm):
-
350
-
Table Travel (Y) (mm):
-
350
-
Wheel Size(mm):
-
150
-
Surface Roughness(μm):
-
0.1 μm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
TENROY
-
Voltage:
-
AC380V,50Hz
-
Dimension(L*W*H):
-
820x810x1810mm
-
Weight (KG):
-
850
-
Power (kW):
-
2.2
-
After-sales Service Provided:
-
No overseas service provided, Online support, Video technical support
-
Name:
-
universal tool grinder, punch tool grinding machine
-
Color:
-
Customizable
-
Application:
-
turret punch press toolings grinding purpose
-
Key words:
-
die grinding machine for sale
-
Maximum Grinding Diameter:
-
200mm
-
Max. Grinding Diameter:
-
150mm
-
Type:
-
Surface Grinding Machine
-
Certification:
-
CE ISO
Grinding Wheel:
Features:
1.Touch-screen operation,Simple, direct, easy to use. Support to different language.
2.User-friendly operation and interface, no need to understand the blade-parameters.
3.Universal fixture which is suitable for all kinds of CNC punch press tools, thick turret toolings, trumpf tools, multi tools, Murratec punch tools, thin turret toolings, Salgvanini punch tools etc.
4.Adjustable fixture system, that can grind non-flat punch blades (such as monoclinic, the roof type etc.)
5. Tenroy supplies different color cholce based on production environment or customer preferences.

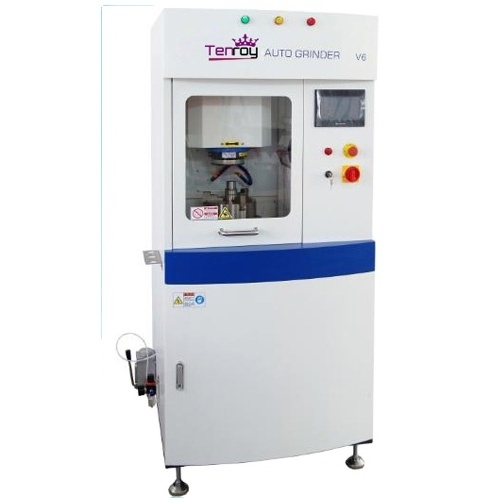

Specifications:
| Model | V6 |
| Type | Electric |
| Voltage | AC380V,50Hz |
| Main Motor Power | 2.2Kw, 2840rpm |
| Rotating Table Motor | 0.100kKw,1440rpm |
| Servo Morto | 0.75KW |
| Cooling Motor | 0.045Kw |
| Maximum Grinding Diameter | 200mm |
| Maximum Grinding Stroke | 200mm |
| Grinding Wheel Diameter | 135mm |
| Machine Size (LxWxH) | 820x810x1810mm |
| Machine Weight | 600Kg |
Optional Shear Fixture and Adaptors:
Sharpening System:
Special Fixture For Shearing, rooftop punch on grinder:
Package View:
Important Remark:
1) It’s suitable for various kinds of punch press tools, such as amada, muratec, trumpf etc.
2) Package: wooden case.
3) Payment term: 30% T/T in advance, balance be paid before shipment.
4) The lead time is around 15 working days.
