1. Apply constant pressure dropping funnel
2. Multiple entry of material
3. High borosilicate glass 3.3
4. Feed insulation system available
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
model:
-
HEB-100
-
Effective evaporation area:
-
0.2 M2
-
Condensation area:
-
0.15M2
-
Barrel diameter:
-
100mm
-
Constant pressure feeding funnel volume:
-
1L
-
Processing flow:
-
180ml/min
-
Motor power:
-
120W
-
Maximum speed:
-
1100rpm
-
key word:
-
Wiped Film Molecular Distillation
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Weight:
-
590 KG
-
After-sales Service Provided:
-
Free spare parts
-
model:
-
HEB-100
-
Effective evaporation area:
-
0.2 M2
-
Condensation area:
-
0.15M2
-
Barrel diameter:
-
100mm
-
Constant pressure feeding funnel volume:
-
1L
-
Processing flow:
-
180ml/min
-
Motor power:
-
120W
-
Maximum speed:
-
1100rpm
-
key word:
-
Wiped Film Molecular Distillation
Product Description

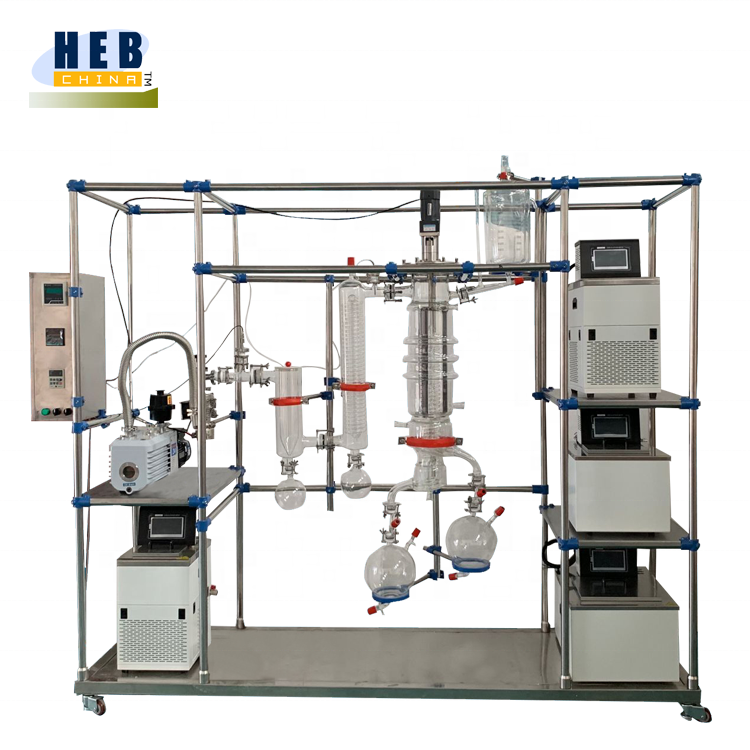

HEB-100 Extraction Glass Short Path Wiped Film Molecular Distillation
Summary
HEB wiped film evaporator, it is a process of separation, purification and concentration of natural products, complex and thermally sensitive molecules for example vitamins and polyunsaturated fatty acids. This process is characterized by short term exposure of the distillate liquid to high temperatures, by high vacuum pressure (around 1024 mmHg) in the distillation column and a small distance between the evaporator and the condenser around 2 cm, where fluids are in the free molecular flow regime, i.e. the mean free path of molecules is comparable to the size of the equipment. This process has the advantages of avoiding the problem that occurs in techniques that use solvents as the separating agent, and also of minimizing losses due to thermal decomposition.
Technical Parameters
|
Model
|
HEB-60
|
HEB-80
|
HEB-100
|
HEB-150
|
HEB-200
|
HEB-300
|
|
Effective evaporation area (m2)
|
0.05
|
0.12
|
0.2
|
0.3
|
0.4
|
0.6
|
|
Condensation area (m2)
|
0.03
|
0.1
|
0.15
|
0.2
|
0.25
|
0.3
|
|
Barrel diameter (mm)
|
60
|
80
|
100
|
150
|
200
|
300
|
|
Constant pressure feeding funnel volume(L)
|
0.25L
|
0.5L
|
1L
|
2L
|
3L
|
5L
|
|
Processing flow (ml/min)
|
50
|
100
|
180
|
300
|
500
|
1000
|
|
Motor power (W)
|
60
|
80
|
120
|
120
|
120
|
200
|
|
Maximum speed (rpm)
|
1100
|
1100
|
1100
|
1100
|
600
|
300
|
Main Features
1) Low operating pressures
2) Short residence time
3) High evaporation rates
4) Low fouling on evaporator wall
5) Grease-less magnetic sealed bearing, valves and joints
6) Perfect for heat sensitive materials
Detailed Images
Feeding system
2. Multiple entry of material
3. High borosilicate glass 3.3
4. Feed insulation system available
Jacketed evaporation barrel
1.Made of high borosilicate glass 3.3 easy for viewing
2.PTFE blades, which is high temp resistance and anti-corrosive
Cold trap
The main components are fabricated in Borosilicate glass
External condenser
1.
Made of high borosilicate glass 3.3
2. Capable of effectively condensing the gas
3. Resistant corrosion
Diffusion Pump
With a diffusion pump, the vacuum system will be better
Collection flask
The receiving system can be customized for non-stop operation.
Multi-function digital controller
1. Digital display of temp.
2. Variable frequency speed controller
3. Digital display of vacuum degree
Related Products
1. Low & constant Temp Water Bath
Model : HC-1006
temp range: -10~100℃temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 260*200*140mm³
lifting: 5m
pump flow rate:0~20L/min
tank mouth:180*140mm²
water draining: yes
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 300*240*200mm³
tank depth: 200mm
pump flow rate:13L/min
tank mouth:235*160mm²
pump flow rate:0~20L/min
tank mouth:180*140mm²
water draining: yes
2. Digital Circulator Heater
Model : GY-30A
temp range: RT+5~200℃
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 400*330*230mm³
tank depth: 230mm
pump flow rate:13L/min
tank mouth:310*280mm²
water draining: yes
temp range: RT+5~200℃
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 400*330*230mm³
tank depth: 230mm
pump flow rate:13L/min
tank mouth:310*280mm²
water draining: yes
3. Constant Tempe Water Bath
Model : GY-15A
temp range: RT+5~200℃
temp stability: ±0.05~±0.2℃
resolution: 0.1mm³
tank size: 300*240*200mm³
tank depth: 200mm
pump flow rate:13L/min
tank mouth:235*160mm²
water draining: no
4. Vacuum Pump
Model: VRD-24
Displacement speed m3/h (L/s):
Displacement speed m3/h (L/s):
50Hz, 24 (6.6)
60Hz 28.8 (7.9)
Ultimate partial pressure gas ballast closed : 4x10-2 Pa
Ultimate total pressure gas ballast closed : 4x10-1 Pa
Ultimate total pressure gas ballast open: 8x10-1 Pa
power supply: Single/Three phase
Power rating: 1.1/0.75KW
Intake and exhaust DN (mm): KF25/40
Oil capacity: 1.3~2.0L
Motor speed:
60Hz 28.8 (7.9)
Ultimate partial pressure gas ballast closed : 4x10-2 Pa
Ultimate total pressure gas ballast closed : 4x10-1 Pa
Ultimate total pressure gas ballast open: 8x10-1 Pa
power supply: Single/Three phase
Power rating: 1.1/0.75KW
Intake and exhaust DN (mm): KF25/40
Oil capacity: 1.3~2.0L
Motor speed:
50Hz 1440rpm
60Hz 1720rpm
Ambient temperature: 5 ~ 40 °C
Noise level: ≤58 dB
Net weight: 35kg
60Hz 1720rpm
Ambient temperature: 5 ~ 40 °C
Noise level: ≤58 dB
Net weight: 35kg
