Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EVUC
-
Model Number:
-
EVC-8505
-
Power:
-
10W
-
Video Memory:
-
Share with main memory
-
CPU:
-
Intel Celeron J1900
-
RAM:
-
Onboard DDR3L 1333MHZ 4GB/8GB
-
Storage:
-
1*mSATA slot, 1*SATA bay
-
Chipset:
-
Intel Bay Trail D/I/M SOC
-
USB Port:
-
3*USB2.0, 1*USB3.0
-
COM:
-
2*COM(RS232)
-
OS:
-
Win7/Win8/Win10,Linux
-
Expansion:
-
1*mini-PCIE (for WiFi and Wireless)
-
Working Temperature:
-
-20°C ~ 65°C (-4°F ~ 149°F)
-
Warranty:
-
1 Year
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
GDDR3
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EVUC
-
Model Number:
-
EVC-8505
-
Power:
-
10W
-
Video Memory:
-
Share with main memory
-
CPU:
-
Intel Celeron J1900
-
RAM:
-
Onboard DDR3L 1333MHZ 4GB/8GB
-
Storage:
-
1*mSATA slot, 1*SATA bay
-
Chipset:
-
Intel Bay Trail D/I/M SOC
-
USB Port:
-
3*USB2.0, 1*USB3.0
-
COM:
-
2*COM(RS232)
-
OS:
-
Win7/Win8/Win10,Linux
-
Expansion:
-
1*mini-PCIE (for WiFi and Wireless)
-
Working Temperature:
-
-20°C ~ 65°C (-4°F ~ 149°F)
-
Warranty:
-
1 Year
1. Integrated Intel HD Graphic card,HDMI & VGA full HD 1080p Dual Display,enable an extraordinary visual experience for home theater or gaming purpose.
2. It can be put on the monitor back with vesa bracket to save more space.

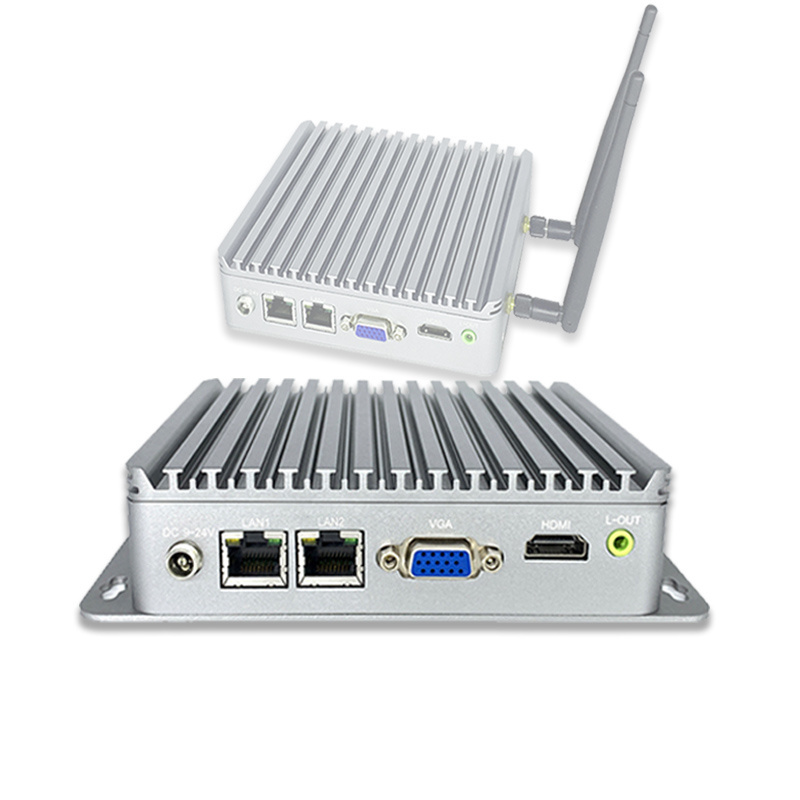

3. Fanless design with high-quality pure aluminum housing, industrial standard, no noise & quick heat dissipation,enjoy quietness & durability.
| Category | Descriptions | |
| Model | No. | EVC-8505 |
|
Nucleus Module |
CPU | Intel® Celeron® Processor J1900 (Quad Core 2M Cache, up to 2.42 GHz) |
| Chipset | Intel®Bay Trail D/I/M SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR3L 1333MHZ 4GB(up to 8GB) | |
| Storage |
1*mSATA slot(16G/32G/64G/128G SSD), 1*SATA bay(7+15P 500G-1T 2.5" HDD),optional |
|
| Graphic | Integrated Intel®Bay Trail D/I/M SOC | |
| Network |
2*Intel® Ethernet Controller I211AT 1000M lan (Support Intel® Ethernet Controller I210 Series) |
|
| Audio | Realtek ALC892 | |
| I/O | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 3*USB2.0, 1*USB3.0 | |
| Display | 1*HD-MI, 1*VGA | |
| WIFI | 1*WiFi module with 2 antennas(Optional) | |
| COM | 2*COM(RS232) | |
| Button | 1*Power Button | |
| Line-out | 1*Audio-out | |
| SIM | 1*SIM Card socket(support 3G/4G module) | |
| Expansion | 1*mini-PCIe(support WiFi and Bluetooth) | |
| OS | Operating System | Win7/8/10, Linux |
| Structure | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | VESA bracket(Optional) | |
| Dimensions | 134.0*124.0*36.0 mm / 5.28*4.88*1.42 inch (WxDxH) | |
| Weight | 0.54KG(N.W.) | |
| Power | DC In | DC 9 power supply and AC power adapter |
|
Temperature & Humidity |
Working Temp. | -20°C~ 65°C (-4°F~149°F) |
| Storage Temp. | -40°C~ 80°C (-40°F~176°F) | |
| Working Humidity | 10% - 95% @40°C non-condensing | |
| Environment | Safety | CE,FCC,RoHS |
| Package | Items |
pc, power adapter, Power cord, CD Driver, VESA Bracket & 2 Antennas(Optional) |
