Quick Details
-
Model Number:
-
LVFU-Rack-Mounted-48v-200ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
55kg
-
The charging ratio:
-
1C
-
The discharge rate:
-
0.5C
-
Product name:
-
Lithium Iron Phosphate Lifepo4 Battery
-
Protection:
-
Over temperature, over current, short circuit,
-
Cell Self-Discharge:
-
<5 %/ Month
-
Standard Voltage:
-
48VDc/51.2VDc
-
Commumication Protocol:
-
CAN/RS485/WIFI/4G/Blue Tooth
-
Useful Life:
-
8-10 Years
-
Cycle Life:
-
6000 (@ 80% DoD)
-
Cell Type Chemistry:
-
LiFePO4
-
Certifications:
-
CE,FCC, CCC
-
Shipping Classification:
-
UN 38.3. UN 3480, Class 9
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts
-
Brand Name:
-
LVFU
-
Model Number:
-
LVFU-Rack-Mounted-48v-200ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
55kg
-
The charging ratio:
-
1C
-
The discharge rate:
-
0.5C
-
Product name:
-
Lithium Iron Phosphate Lifepo4 Battery
-
Protection:
-
Over temperature, over current, short circuit,
-
Cell Self-Discharge:
-
<5 %/ Month
-
Standard Voltage:
-
48VDc/51.2VDc
-
Commumication Protocol:
-
CAN/RS485/WIFI/4G/Blue Tooth
-
Useful Life:
-
8-10 Years
-
Cycle Life:
-
6000 (@ 80% DoD)
-
Cell Type Chemistry:
-
LiFePO4
-
Certifications:
-
CE,FCC, CCC
-
Shipping Classification:
-
UN 38.3. UN 3480, Class 9

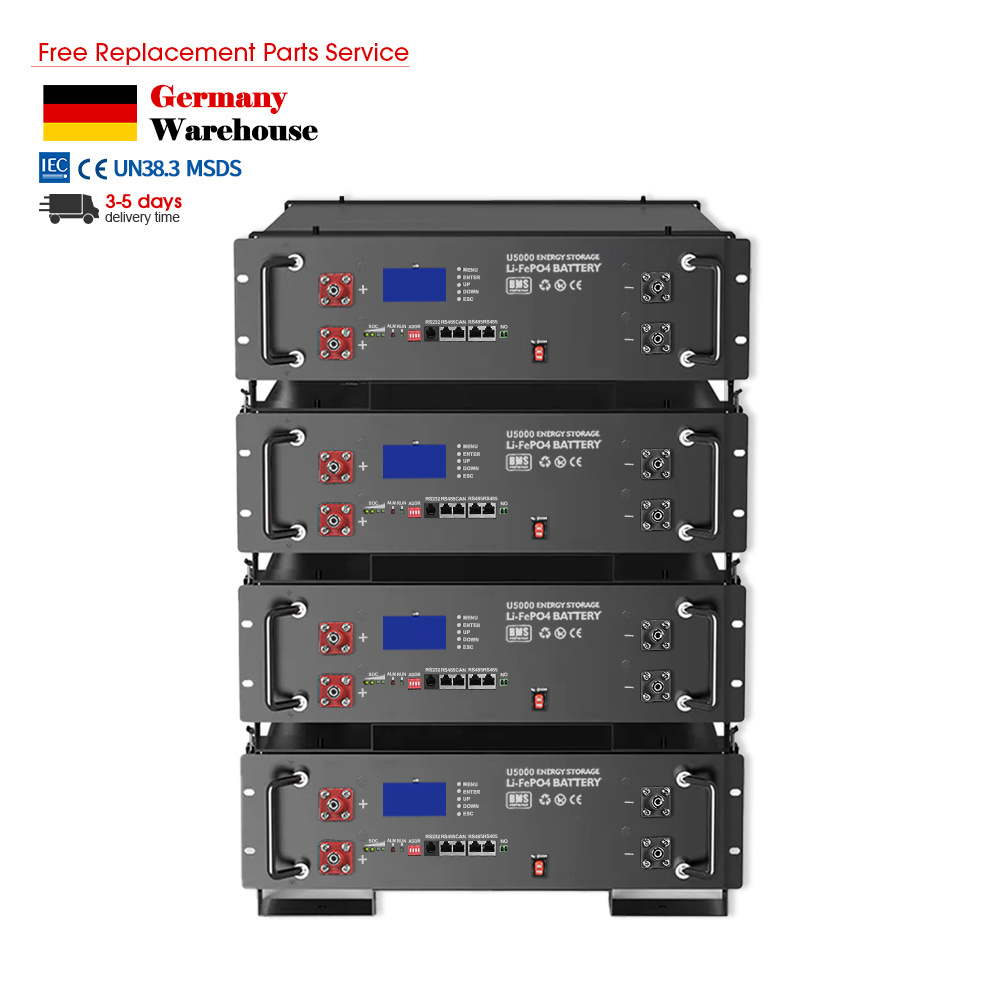

LVFU 51.2V 48V 100ah 200Ah 300Ah LiFePO4 Lithium Ion Iron Phosphate Battery Rack Mounted 10kwh Solar Energy Storage Battery
Products Description
Product Parameter
Rack-mounted energy storage (Home/Industrial)
|
Model
|
LFR-4850/5150
|
LFR-48100/51100
|
LFR-48150/51150
|
FR-48200/51200
|
||||
|
Standard Voltage
|
48VDc/51.2VDc
|
|
|
|
||||
|
Voltage
|
39.75-54.75VDc/42.4-58.4VDc
|
|
|
|
||||
|
Norminal Capacity
|
50Ah
|
100Ah
|
150Ah
|
200Ah
|
||||
|
Rated Energy Capacity
|
2.4/2.56kWh
|
4.8/5.12kWh
|
7.2/7.68kWh
|
9.6/10.24kWh
|
||||
|
Commumication Protocol
|
CAN/RS485/RS232/WIFI/4G/Blue Tooth
|
|
|
|
||||
|
Efficiency (at 0.5C)
|
98%
|
|
|
|
||||
|
Cell Self-Discharge
|
<5 %/ Month
|
|
|
|
||||
|
Maximum Allowed Modules in Parallel
|
15 (36/38.4kWh)
|
15 (72/76.8kWh)
|
15 (108/115.2kWh)
|
15 (144/153.6kWh)
|
||||
|
Depth of Discharge
|
Up to 100%
|
|
|
|
||||
|
Useful Life
|
8-10 Years
|
|
|
|
||||
|
Cycle Life
|
6000 (@ 80% DoD)
|
|
|
|
||||
|
Protection
|
Over temperature, over current, short circuit, over-charging, over-discharging, Low voltage
|
|
|
|
||||
|
Charge Specifications
|
|
|
|
|
||||
|
Recommended Charge Current
|
25A
|
50A
|
75A
|
100A
|
||||
|
Maximum Charge Current
|
50A
|
100A
|
100A
|
100A
|
||||
|
Recommended Charge Voltage
|
54/57.6V
|
54/57.6V
|
54/57.6V
|
54/57.6V
|
||||
|
Maximum Charge Voltage
|
54.75/58.4V
|
54.75/58.4V
|
54.75/58.4V
|
54.75/58.4V
|
||||
|
Discharge Specifications
|
|
|
|
|
||||
|
Recommended Discharge Current
|
25A
|
50A
|
75A
|
100A
|
||||
|
Maximum Discharge Current
|
50A
|
100A
|
100A
|
100A
|
||||
|
Recommended Low Voltage Disconnect
|
41.25/44V
|
|
|
|
||||
|
Battery Low Voltage Protection
|
39.75/42.4V
|
|
|
|
||||
|
Battery Recovery Voltage
|
45/48V
|
|
|
|
||||
|
Mechanical Specifications
|
|
|
|
|
||||
|
Dimenstions
|
484*410*120mm
|
484*410*178mm
|
484*590*178mm
|
484*590*178mm
|
||||
|
Weight
|
24.5/26.5kg
|
38.5/41kg
|
59/63kg
|
70.5/75kg
|
||||
|
Terminal Type
|
M6
|
|
|
|
||||
|
Case Material
|
Industrial Grade Iron
|
|
|
|
||||
|
Enclosure Protection
|
IP20
|
|
|
|
||||
|
Installation
|
Cabinet
|
|
|
|
||||
|
Cell Type Chemistry
|
LiFePO4
|
|
|
|
||||
|
Compliance Specifications
|
|
|
|
|
||||
|
Certifications
|
CE,FCC, CCC
|
|
|
|
||||
|
Shipping Classification
|
UN 38.3. UN 3480, Class 9
|
|
|
|
||||
|
Temperature Specifications
|
|
|
|
|
||||
|
Discharge Temperature
|
-20~65℃
|
-20~65℃
|
-20~65℃
|
-20~65℃
|
||||
|
Charge Temperature
|
0~55℃
|
0~55℃
|
0~55℃
|
0~55℃
|
||||
|
Storage Temperature
|
-20~45℃
|
-20~45℃
|
-20~45℃
|
-20~45℃
|
||||
Our Advantages
After - Sales
3.、Is it better to have 2 100ah lithium batteries or 1 200Ah lithium battery?
Having two 100Ah batteries provides the advantage of redundancy, meaning that if one battery fails, you still have a backup power source. It also allows for greater flexibility in terms of battery placement and weight distribution, which can be important for some applications. Additionally, having two batteries connected in parallel can allow for higher current delivery, which may be necessary for high-power applications.
However, having a single 200Ah battery can be more cost-effective and may require less maintenance, as you only need to monitor and maintain one battery instead of two. It can also be more space-efficient and easier to install since there is only one battery to manage.
In general, if you prioritize redundancy and flexibility, two 100Ah batteries may be the better choice, while a single 200Ahbattery may be a more practical and cost-effective option. Ultimately, the decision depends on your specific needs and preferences.
Cautions
1、 The charging current should be less than the maximum charging current specified in the product specifications. A charging
current greater than the recommended current may damage the battery;
4、 Do not charge in reverse polarity;
6、If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7、 A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8、If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
2、 The discharge current should be less than the maximum discharge current specified in the product specifications; the discharge current greater than the recommended current may damage the battery;
3、 Do not reverse the polarity of the battery pack for any reason;
4、 Do not charge in reverse polarity;
5、 Please use a professional charger for charging;
6、If the lithium battery is not used for a long time, it should be charged with 50%~80% power, stored separately in a dry and cool environment, and recharge the battery every 3 months to avoid long storage time and low power due to self-discharge of the battery, Will cause the battery performance,characteristics or battery function to decline;
7、 A single battery cell is not waterproof, and the finished battery pack has a waterproof layer to prevent rain. But do not soak in water and do not expose the battery to a high-temperature open flame.
8、If you want to DIY yourself, please ensure that the battery voltage is the same when installing the battery. Be careful not to short-circuit the battery. There are more protection boards, batteries, and finished battery packs on sale in the store. You can view more.
