Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCM G
-
Weight:
-
15400 kg
-
Dimension(L*W*H):
-
8900*2625*3470mm
-
Engine model:
-
6CTAA8.3 D6114
-
Rated power/speed:
-
138kW/2200 140kW/2300rpm
-
Dimension(LxWxH):
-
8900*2625*3470mm
-
Operating weight(Standard):
-
15400kg
-
Travelling speed ,forward:
-
5,8,11,19,23,38 km/h
-
Travelling speed ,reverse:
-
5,11,23 km/h
-
Tractive force(f=0.75):
-
79KN
-
Max. gradeability:
-
20%
-
Tire inflation pressure:
-
260 KPa
-
Working hydraulic pressure:
-
16MPa
Quick Details
-
Forward Speed(km/h):
-
38
-
Engine Brand:
-
imported brand
-
Reverse Speed(km/h):
-
23
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCM G
-
Weight:
-
15400 kg
-
Dimension(L*W*H):
-
8900*2625*3470mm
-
Engine model:
-
6CTAA8.3 D6114
-
Rated power/speed:
-
138kW/2200 140kW/2300rpm
-
Dimension(LxWxH):
-
8900*2625*3470mm
-
Operating weight(Standard):
-
15400kg
-
Travelling speed ,forward:
-
5,8,11,19,23,38 km/h
-
Travelling speed ,reverse:
-
5,11,23 km/h
-
Tractive force(f=0.75):
-
79KN
-
Max. gradeability:
-
20%
-
Tire inflation pressure:
-
260 KPa
-
Working hydraulic pressure:
-
16MPa
Buying Guides

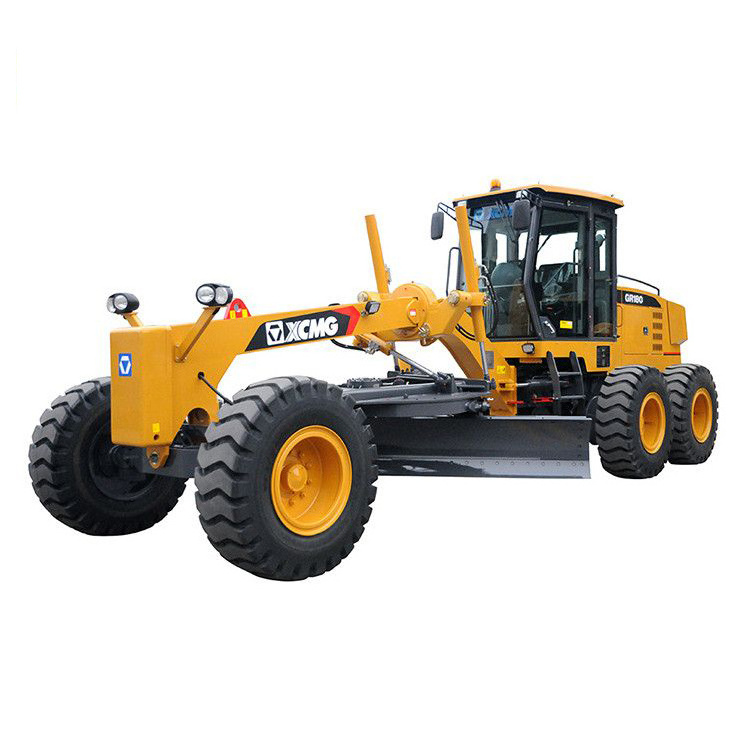

xuzhou supply xcm g brand GR180 motor grader 180HP for sale EXW price
Product Description
1, Dongfeng Cummin s Engine, ZF Technology Gearbox, and XCM G Drive Axle make the drive system power matching more reasonable and reliable.
2,
Double-circuit hydraulic brake system makes the brake more reliable and stable;
3,
Steering to the load sensing system, the main hydraulic components adopt international support to ensure the stability and reliability of the system;
4,
Use XCM G special enhanced work devices;
5,
The blade body adopts adjustable large chute and double slide mechanism, and the working blade adopts high-strength and wear-resistant material;
6,
Various options expand the machine's performance and working range.
Main Parameter
| Description | Unit | Parameter value | |
| Engine model | 6CTA8.3-C190-Ⅱ | ||
| Rated power/speed | kW/rpm | 142/2200 | |
| Overall dimension (standard) | 8900x2625x3420 | ||
| Total weight (standard) | kg | 15400 | |
| Tire specification | 17.5-25 | ||
| Ground clearance (front axle) | mm | 430 | |
| Tread | mm | 2156 | |
| Space of front and rear axles | mm | 6219 | |
| Space of middle and rear wheels | mm | 1538 | |
| Forward velocity | km/h | 5/8/11/19/23/38 | |
| Reverse speed | km/h | 2005/11/23 | |
| Tractive effort f=0.75 | kN | ≥79 | |
| Maximum gradeability | % | ≥25 | |
| Tire inflation pressure | kPa | 260 | |
| Working system pressure | MPa | 18 | |
| Transmission pressure | MPa | 1.3—1.8 | |
| Maximum steering angle of front wheel | ±50° | ||
| Maximum slant angle of front wheel | ±17° | ||
| Maximum oscillating angle of front axle | ±15° | ||
| Maximum oscillating angle of equilibrium box | Front15° Rear15° | ||
| Maximum steering angle of frame | ±27° | ||
| Minimum turning radius | m | 7.3 | |
| Scrape knife | Maximum lift height | mm | 450 |
| Maximum cutting depth | mm | 500 | |
| Maximum tilt angle | 90° | ||
| Cutting angle | 28°—90° | ||
| Angle of revolution | 360° | ||
| Length & chord height | mm | 3965x610 | |
| Coolant | L | 50 | |
| Fuel tank | L | 280 | |
| Engine | L | 24 | |
| Transmission | L | 38 | |
| Drive axle | L | 28 | |
| Balancing box | L | 46 | |
Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
