Quick Details
-
Place of Origin:
-
China
-
Product Name:
-
Plate AR500
-
Material:
-
Abrasion/wear resistant steel
-
Authentication:
-
ISO9001-2008, SGS, BV
-
Certificate:
-
EN10204 3.1 MTC
-
Edge:
-
Mill Edge Slit Edge
-
Payment term:
-
L/C T/T (30% Deposit)
-
Use:
-
Mobile crushing station, mining equipment
-
Shape:
-
Flat Steel Plate
Quick Details
-
Type:
-
Steel Plate
-
Standard:
-
ASTM
-
Grade:
-
AR500 wear resistant steel
-
Place of Origin:
-
China
-
Product Name:
-
Plate AR500
-
Material:
-
Abrasion/wear resistant steel
-
Authentication:
-
ISO9001-2008, SGS, BV
-
Certificate:
-
EN10204 3.1 MTC
-
Edge:
-
Mill Edge Slit Edge
-
Payment term:
-
L/C T/T (30% Deposit)
-
Use:
-
Mobile crushing station, mining equipment
-
Shape:
-
Flat Steel Plate
Introduction of Plate AR500:
Plate AR500 is a hardened steel that is commonly used for targets, armored applications, truck plows and in mining. It is tempered and designed to be abrasion resistant, which makes it ideal for high wear applications.
Plate AR500 chemical composition:
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
| AR500 | 0.3 | 0.7 | 1.7 | 0.025 | 0.015 | 1 | 0.7 | 0.5 | 0.005 |
Plate AR500 mechanical property:
| Grade | Yield Strength | Tensile Strength MPa | Elongation A | Impact Strength Charpy V 20J | Hardness Range |
| AR500 | 1250 MPa | 1450 MPa | 8% | -30C | 450-540 |
Plate AR500 application:
Highly abrasion-resistant and heat treated to display enhanced toughness, Plate AR500 is one of the most durable and hardest metals on the market. Thanks to its weldability and forming capabilities, Plate AR500 is used in the design and manufacture of everything from protective body armourthrough to the production of mining equipment, ballistic plates, material handling transport solutions and other applications. The metal boasts strong resistance to rub wear, heavy wear and slide wear, making it one of the most user-friendly options available on the market.
Wear/Abrasion Resistant Steel Equivalent Standards:
| GB | SSAB | JFE | DILLIDUR | ThyssenkKrupp | ASTM | Ruukki |
| NM300 | ||||||
| NM360 | - | EH360 | - | - | - | - |
| NM400 | HARDOX400 | EH400 | 400V | XAR400 | AR400 | Raex400 |
| NM450 | HARDOX450 | - | 450V | XAR450 | AR450 | Raex450 |
| NM500 | HARDOX500 | EH500 | 500V | XAR500 | AR500 | Raex500 |
| NM550 | ||||||
| NM600 |
|

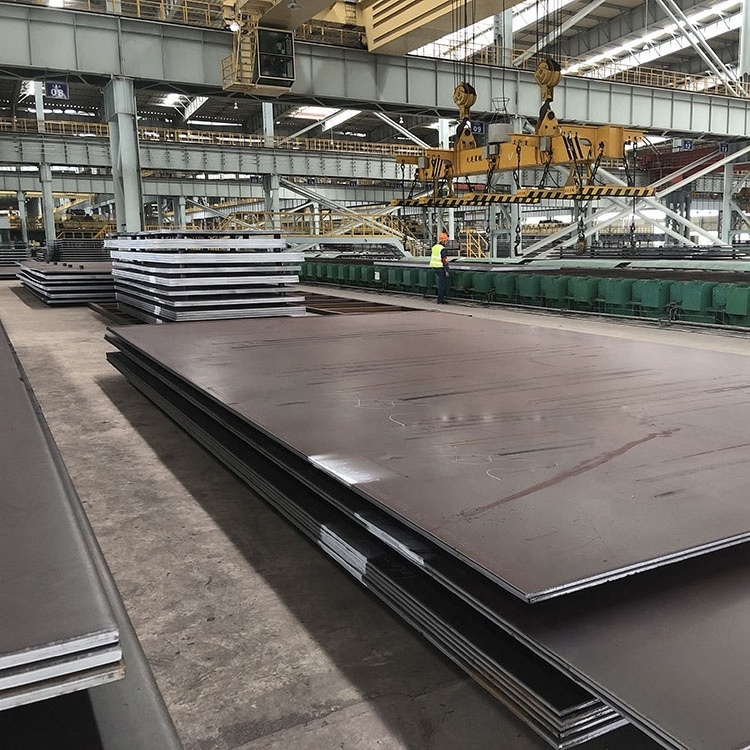

Plate AR500 pictures:
1. Certificates: ISO, API, BIS, TUV, ABS, BV, LR, DNV GL, CCS, RMRS, RINA, etc.
2. Third Party Inspection: SGS, BV, Intertek; ABS,LR, DNV GL, NK, CCS, RMRS, RINA, KR.
3. Available Test: UT, MT, Impact Test, PWHT, etc.
4. Specification limit is matchless in China even in the World, typical examples:
The Min. thickness for shipbuilding steel plates is 3mm.
The Min. thickness for hot rolled steel plates is 0.6mm.
The Max. width for pressure vessel steel plates: exceeds 5000mm.
5. Lifetime warranty: BBN steel ensure to return and replace the steel p roducts for free in its lifetime due to quality issues.
Q: Are you manufacturer or trader?
A: BBN steel is steel plate manufacturer.
We also has warehouse near Tianjin and Shanghai port. Abundant steel stocks can meet urgent demands of clients.
Q: Can you provide EN10204 3.2 MTC?
A: Yes.
Q: Can we get sample?Any charges?
A: Yes,you can get available samples in our stock. Free for real samples, but customers need to pay the freight cost.
Q: How can we get the offer?
A: Pease submit the required steel grade, size, quantity. And we will check price for you at the first time.
Q: What's your payment terms?
A: 30% down payment by T/T and 70% balance by T/T or L/C.
Q: What's your delivery time?
A: 15-45 days after receiving the down payment or L/C.
Q: Can you cut the steel plates to small pieces and drilling according to my drawing?
A: Yes. BBN Steel also provides steel machining: Grinding, Welding, Planing, Rolling, Punching, Milling, Cutting, Drilling, Turning.
